Quality Products For Professionals Since 1916 ISO9001:2015

Pipe Plug, T-Handle Aluminum, 143-7 Series

  • Heavy-duty aluminum body and T-handle
  • Chemical and temperature resistant neoprene seal
  • Ideal for long-term applications
  • Good for sewer water and air pressure tests
  • Available with or without by-pass
  • Nominal Sizes 6" to 12" for concrete, clay, and SDR 26 & 35 pipe
  • Nominal Sizes 15" & 18" for concrete and clay pipe sizes only

Mechanical Pipe Plugs Without Integral Restraint Generic Operating Instructions

T-Handle Aluminum Test Plugs for Chemical and Temperature Resistance, 6" to 18", 143-7 Series

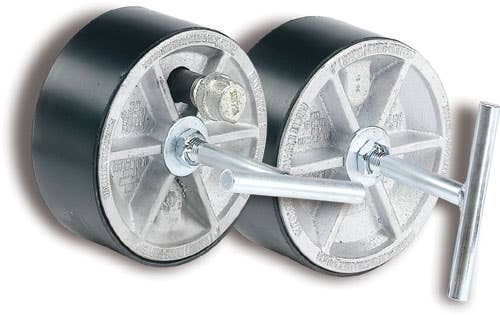

Shown With and Without By-Pass

T-Handle Aluminum Test Plugs for Chemical and Temperature Resistance, 6" to 18", 143-7 Series
Line Acceptance Test

Loading...

Pipe Plug, T-Handle Aluminum, 143-7 Series

    Image Pipe Size, Nominal Dia. Max Dia. Min By-Pass Pipeline Max PSI Pipeline Pressure Max Head Style Shipping Wt. Item Number Price Qty Action
    18" (460mm) 18.3" (465mm) 17.7" (450mm) None 8.7 psi (0.61 bar) 20 ft (6.1 m) T-Handle 30 lbs (13.61 Kg) 143-7180-
    $747.00
    15" (380mm) 15.3" (388mm) 14.8" (377mm) None 10 psi (0.7 bar) 30 ft (9.1 m) T-Handle 23 Lbs (10.43 Kg) 143-7150-
    $531.00
    12" (300mm) 12.3" (312mm) 11.7" (297mm) None 10 psi (0.7 bar) 30 ft (9.1 m) T-Handle 16 Lbs (7.26 Kg) 143-7120-
    $385.00
    10" (250mm) 10.3" (262mm) 9.8" (248mm) None 10 psi (0.7 bar) 14 ft (12 m) T-Handle 12 Lbs (5.44 Kg) 143-7100-
    $356.00
    8" (200mm) 8.3" (211mm) 7.7" (196mm) None 10 psi (0.7 bar) 40 ft (12 m) T-Handle 9 Lbs (4.08 Kg) 143-7080-
    $246.00
    6" (150mm) 6.3" (160mm) 5.7" (144mm) None 10 psi (0.7 bar) 40 ft (12 m) T-Handle 6 Lbs (2.72 Kg) 143-7060-
    $201.00

Pipe Plug, T-Handle, Bypass 143-7 Series

    Image Pipe Size, Nominal Dia. Max Dia. Min By-Pass Pipeline Max PSI Pipeline Pressure Max Head Style Shipping Wt. Item Number Price Qty Action
    18" (460mm) 18.3" (465mm) 17.7" (450mm) 3/4 M (19mm) 8.7 psi (0.61 bar) 20 ft (6.1 m) T-Handle 31 Lbs (14.06 Kg) 143-7180-8
    $804.00
    15" (380mm) 15.3" (388mm) 14.8" (377mm) 3/4 M (19mm) 10 psi (0.7 bar) 23 ft (10 m) T-Handle 24 Lbs (10.89 Kg) 143-7150-8
    $590.00
    12" (300mm) 12.3" (312mm) 11.7" (297mm) 3/4 M (19mm) 10 psi (0.7 bar) 23 ft (10 m) T-Handle 16 Lbs (7.26 Kg) 143-7120-8
    $436.00
    10" (250mm) 10.3" (262mm) 9.8" (248mm) 3/4 M (19mm) 10 psi (0.7 bar) 23 ft (10 m) T-Handle 13 Lbs (5.9 Kg) 143-7100-8
    $385.00
    8" (200mm) 8.3" (211mm) 7.7" (196mm) 3/4 M (19mm) 10 psi (0.7 bar) 23 ft (10 m) T-Handle 10 Lbs (4.54 Kg) 143-7080-8
    $296.00
    6" (150mm) 6.3" (160mm) 5.7" (144mm) 1/4 M (6mm) 10 psi (0.7 bar) 23 ft (10 m) T-Handle 7 Lbs (3.18 Kg) 143-7060-8
    $242.00
