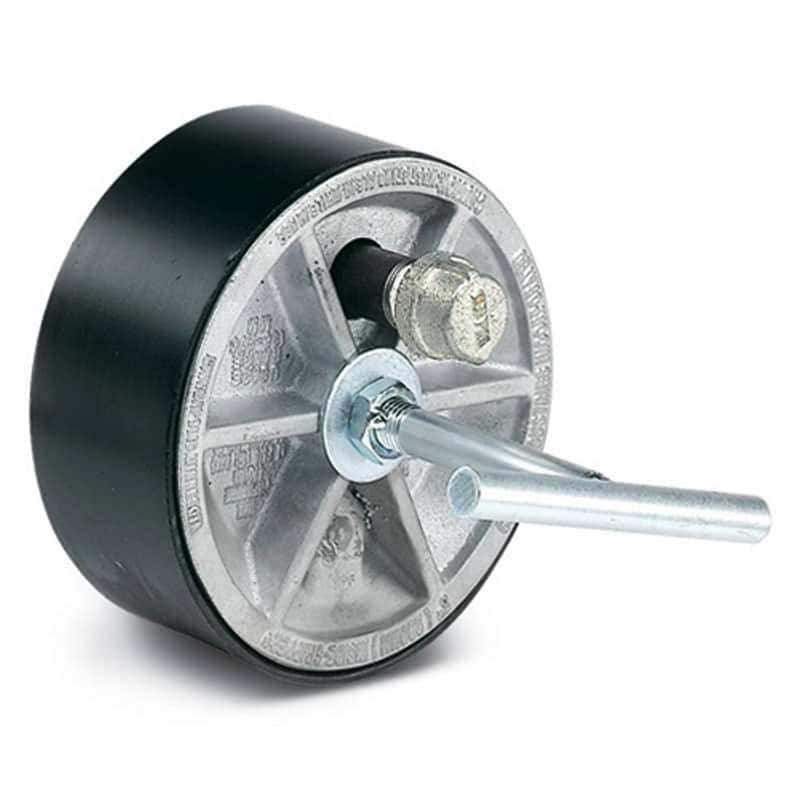

Pipe Plug, T-Handle, Bypass 143-7 Series
Bypass T-Handle Pipe Plug features include:
- Heavy-duty aluminum body and T-handle
- Chemical and temperature resistant neoprene seal
- Ideal for long-term applications

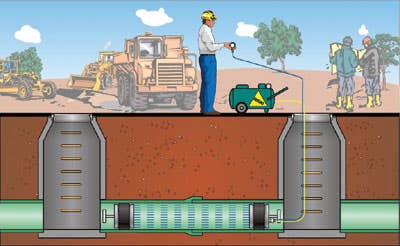

- Good for sewer water and air pressure tests
- Available with or without by-pass
- Nominal Sizes 6" to 12" for concrete, clay, and SDR 26 & 35 pipe
- Nominal Sizes 15" & 18" for concrete and clay pipe sizes only
Mechanical Pipe Plugs Without Integral Restraint Generic Operating Instructions
| Image | Pipe Size, Nominal | Dia. Max | Dia. Min | By-Pass | Pipeline Max PSI | Pipeline Pressure Max Head | Style | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
18" (460mm) | 18.3" (465mm) | 17.7" (450mm) | 3/4 M (19mm) | 8.7 psi (0.61 bar) | 20 ft (6.1 m) | T-Handle | 31 Lbs (14.06 Kg) | 143-7180-8 |
$924.00
|
||
|
15" (380mm) | 15.3" (388mm) | 14.8" (377mm) | 3/4 M (19mm) | 10 psi (0.7 bar) | 23 ft (10 m) | T-Handle | 24 Lbs (10.89 Kg) | 143-7150-8 |
$679.00
|
||
|
12" (300mm) | 12.3" (312mm) | 11.7" (297mm) | 3/4 M (19mm) | 10 psi (0.7 bar) | 23 ft (10 m) | T-Handle | 16 Lbs (7.26 Kg) | 143-7120-8 |
$501.00
|
||
|
10" (250mm) | 10.3" (262mm) | 9.8" (248mm) | 3/4 M (19mm) | 10 psi (0.7 bar) | 23 ft (10 m) | T-Handle | 13 Lbs (5.9 Kg) | 143-7100-8 |
$443.00
|
||
|
8" (200mm) | 8.3" (211mm) | 7.7" (196mm) | 3/4 M (19mm) | 10 psi (0.7 bar) | 23 ft (10 m) | T-Handle | 10 Lbs (4.54 Kg) | 143-7080-8 |
$340.00
|
||
|
6" (150mm) | 6.3" (160mm) | 5.7" (144mm) | 1/4 M (6mm) | 10 psi (0.7 bar) | 23 ft (10 m) | T-Handle | 7 Lbs (3.18 Kg) | 143-7060-8 |
$278.00
|
