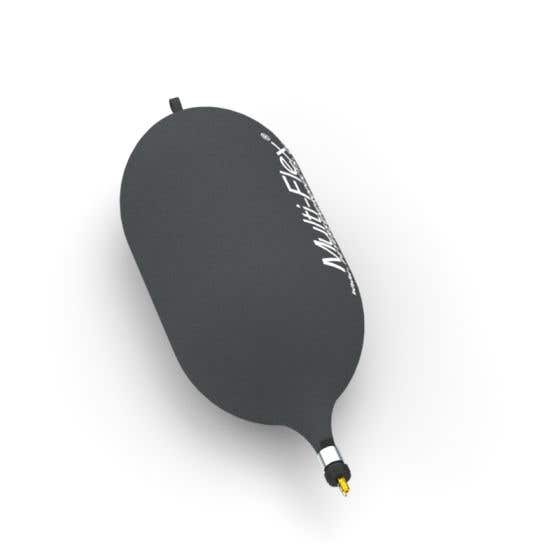

Pipe Plug, Inflatable, Multi-Flex®, 26" Dia
$910.00
2 In stock
SKU
113-026-
Country of Origin | USA |
---|---|
Dia. Deflated | 4.5" (114mm) |
Dia. Max | 26" (660mm) |
Length Deflated | 66" (1676.4mm) |
Length Overall Inflated, Est. | 63" (1600mm) |
Length, Contact | 20" (508mm) |
Material, Metal Components | Aluminum and Plated Carbon Steel |
Material, Outer Ply | Ballistic Nylon |
Package Dimensions | 8"x8"x36" |
Port, Inflation | 2" MNPT to 1/2" QD Plug |
Port, PSI Monitor | 1/4" QD Cplg |
Pressure Pipeline Max Head | 5 psi (0.34 bar)/11' (3.5 m) |
Pressure, Inflation Max | 10 psi (0.68 bar) |
Sage Subcategory Number | W113 |
Shipping Wt. | 10 Lb (4.54 Kg) |
Temperature Max. Service F | 200 F (93.33 C) |
Pipe Plug, Inflatable, Multi-Flex®, 26" Dia
Country of Origin | USA |
---|---|
Dia. Deflated | 4.5" (114mm) |
Dia. Max | 26" (660mm) |
Length Deflated | 66" (1676.4mm) |
Length Overall Inflated, Est. | 63" (1600mm) |
Length, Contact | 20" (508mm) |
Material, Metal Components | Aluminum and Plated Carbon Steel |
Material, Outer Ply | Ballistic Nylon |
Package Dimensions | 8"x8"x36" |
Port, Inflation | 2" MNPT to 1/2" QD Plug |
Port, PSI Monitor | 1/4" QD Cplg |
Pressure Pipeline Max Head | 5 psi (0.34 bar)/11' (3.5 m) |
Pressure, Inflation Max | 10 psi (0.68 bar) |
Sage Subcategory Number | W113 |
Shipping Wt. | 10 Lb (4.54 Kg) |
Temperature Max. Service F | 200 F (93.33 C) |
