Deflection Gauges - Aluminum Fin Kit

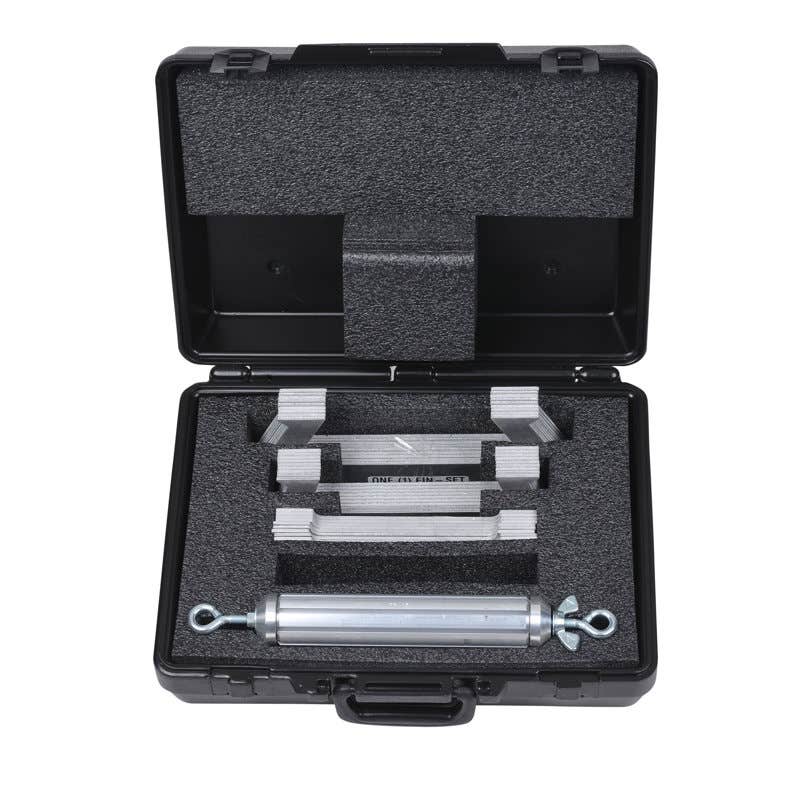

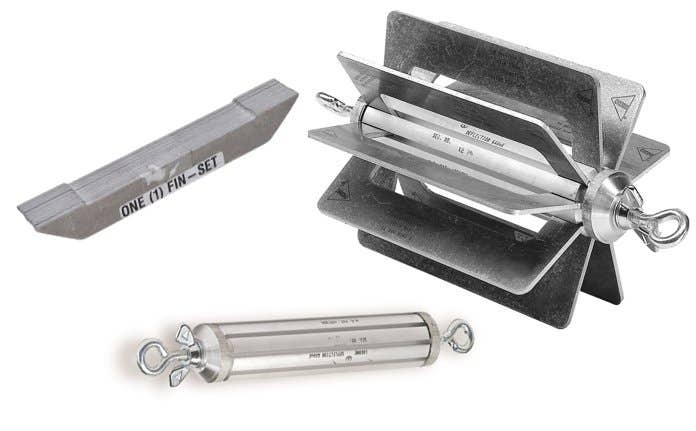

Aluminum Fin Deflection Gauges
- Lightweight, corrosion-resistant
- Field-verifiable without a proving ring
- Assembles without tools
- Fins for 4"-15" gauges have skid size equal to the nominal pipe size-gauge to meet regional codes and will not tip in the line
Field Verification:
Fin Style Deflection Gauges are designed to be field verified by inspectors without the use of a proving ring. Simply place two fins end to end as pictured to the right and measure the width.
Add one inch to the mandrel and you have the outside dimension of the gauge. Using this method simplifies the inspector's job of verifying sizes on deflection gauges.
| Image | Nominal Size | Pipe Type | Deflection Test | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|
|
8" (203.2mm), 10" (254mm), 12" (304.8mm) | SDR 35 | 7.5% | 19 Lb (8.62 Kg) | 938-9612-3575 |
$1,110.00
|
||
|
|
8" (203.2mm), 10" (254mm), 12" (304.8mm) | SDR 35 | 5% | 19 Lb (8.62 Kg) | 938-9612-355 |
$1,110.00
|
||
|
|
8" (203.2mm), 10" (254mm), 12" (304.8mm) | SDR 26 | 5% | 19 Lb (8.62 Kg) | 938-9612-265 |
$1,110.00
|
||
|
6" (152.4mm), 8" (203.2mm), 10" (254mm) | SDR 35 | 7.5% | 18 Lb (8.16 Kg) | 938-9610-3575 |
$1,030.00
|
||
|
|
6" (152.4mm), 8" (203.2mm), 10" (254mm) | SDR 35 | 5% | 18 Lb (8.16 Kg) | 938-9610-355 |
$1,030.00
|
||
|
|
6" (152mm), 8" (203mm), 10" (254mm) | SDR 26 | 5% | 18 Lb (8.16 Kg) | 938-9610-265 |
$1,030.00
|
