High Pressure Portable Hydrostatic Test Pumps, 938-9 Series

These hydro test pumps are a fast, safe, and simple method for hydrostatic testing, ideally suited to work with these plugs (145-1, 145-9, 146-9, 147-1, & 151) or on a stand-alone basis. Choose from two high pressure styles of hydrostatic test units or lower pressure manual and electric test units.

Pump, Hydrostatic Test, High Pressure A & B Style

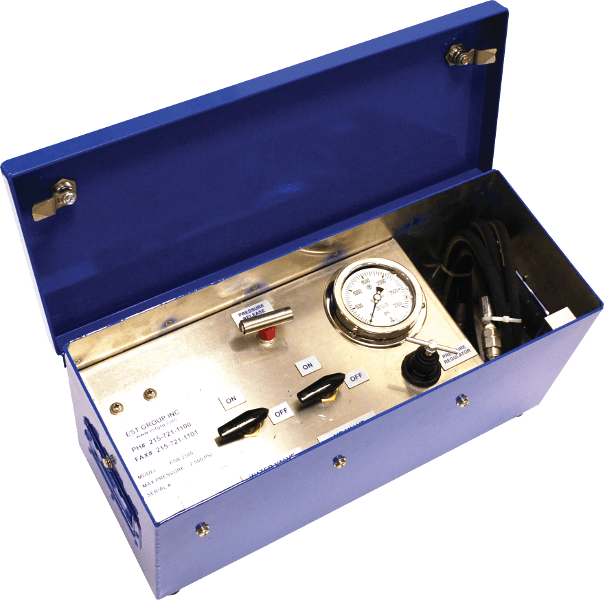

A-Style Hydrostatic Test Pumps

Ideal for hydro testing heat exchanger tubes, pipes, and pressure vessels
Test in the field or in the shop
Simple air-driven pump
Output pressures range from 1,000 to 10,000 psi (69 to 690 bar)
Self lubricating air over water intensifier
Hydro test products with water supply connection
Easy to read 4" (100 mm) diameter pressure gauge
Regulator to control inlet air supply
High pressure bleed valve and high pressure outlet
Equipped with 10 ft (3.1 m) high pressure hose with quick couplings
Mating quick connect couplings for air, water inlet connections, and high pressure outlet
Lockable aluminum tool box with room for hose, fittings, and plug

B-Style Hydrostatic Test Pumps

Ideal for all hydrostatic testing
Slightly larger pump mounted on a hand truck
Hydro test products with simple air-driven pump
Built-in filter, regulator, and lubricator on air inlet
Output pressures range from 1,000 to 10,000 psi (69 to 690 bar)
Easy to read 4" (100 mm) diameter pressure gauge
High pressure system bleed valve
Water suction strainer with crow's foot connector
Supplied with 15 ft (4.5 m) high pressure hose with swivel
Heavy duty enclosure with integral wheels and handle for portability

*Total required CFM to produce rated flow at maximum pump pressure. This is relevant only when the system is used for continuous injection at the maximum rated pressure. Normal testing applications require much less CFM to begin with and fall to (0) at stall test pressure.
Other pressures and volumes available upon request

Pump, Hydrostatic Test, High Pressure A & B Style

Click an Item Number for More Information and to Order

Size	Press., Max Output	Pressure, Input, Max	Max Flow Rate	Style	Shipping Wt.	Item Number	Price	Order or Compare
15" L X 21" W X 44" H	10,000 psi (689.65 bar)	100 psi (6.89 bar) Max Air	1.0 GPM @ 100 PSI	B-Style	100 Lb (45.36 Kg)	938-9299-	$30,492.00	Add to Compare
15" L X 21" W X 44" H	3,600 psi (248.27 Bar)	100 psi (6.89 bar) Max Air	2.7 GPM @ 100 PSI	B-Style	100 Lb (45.36 Kg)	938-9236-	$25,326.00	Add to Compare
15" L X 21" W X 44" H	1,000 psi (68.96 bar)	100 psi (6.89 bar) Max Air	7.50 GPM @ 100 PSI	B-Style	100 Lb (45.36 Kg)	938-9210-	$24,570.00	Add to Compare
24" L X 9.5" W X 10.5" H	10,000 psi (689.40 bar)	100 psi (6.89 bar) Max Air	1.90 GPM @ 85% Rated Output	A-Style	42 Lb (19.05 Kg)	938-9199-	$14,374.50	Add to Compare
24" L X 9.5" W X 10.5" H	2500 PSI (172.41) Bar	100 psi (6.89 bar) Max Air	0.87 GPM @ 85% Rated Output	A-Style	42 Lb (19.05 Kg)	938-9125-	$13,608.00	Add to Compare

Pump, Hydrostatic Test, Manual & Electric

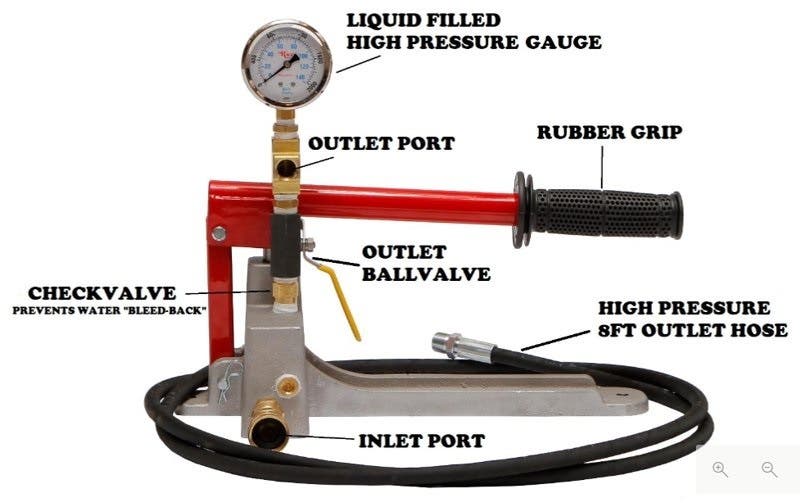

Hydrostatic Test Pump, Manual

For Use With: Water
Port, Output: 1/4" FNPT
Port, Source Inlet: 3/4" Female GHT (Garden Hose
Thread)
Power Source: Manual
Pressure, Input, Max: N/A Water Pump
Pressure, Output Max: 500 psi (34.47 bar)

Hydrostatic Test Pump, Electric

Engine or Motor: 1/2 HP, 60 Hertz 110/220V
Flow Rate: 3 GPM @ 300 psi (20.68 bar)
For Use With: Water
Horsepower: 1/2 HP
Port, Output: 3/4" FNPT
Port, Source Inlet: 3/4" Female GHT(Garden Hose Thread)
Power Source: Electrical
Pressure, Input, Max: N/A Water Pump
Pressure, Output Max: 300 psi (20.68 bar)

Pump, Hydrostatic Test, Manual & Electric

Click an Item Number for More Information and to Order

Image	Size	Press., Max Output	Pressure, Input, Max	Max Flow Rate	Style	Shipping Wt.	Item Number	Price	Qty	Order or Compare
	22" L X 14" W X 14" H	300 psi (20.68 bar)	N/A Water Pump	3 GPM @ 300 psi (20.68 bar)	Electric Hydrostatic Test Pump	61 Lb (27.67 Kg)	938-27819-8	$1,816.92		Add to Compare
	18" L X 17" W X 15" H	500 psi (34.47 bar)	N/A Water Pump		Manual Hydrostatic Test Pump	16 Lb (7.26 Kg)	938-27818-8	$642.47		Add to Compare
