Pump, Hydrostatic Test, High Pressure B Style

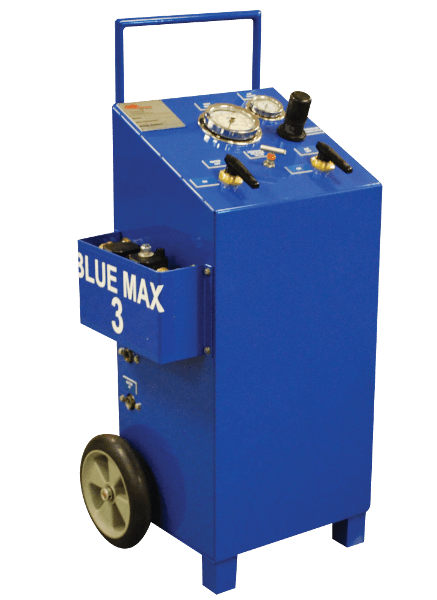

B-Style Hydrostatic Test Pumps
- Ideal for all hydrostatic testing
- Slightly larger pump mounted on a hand truck
- Hydro test products with simple air-driven pump
- Built-in filter, regulator, and lubricator on air inlet
- Output pressures range from 1,000 to 10,000 psi (69 to 690 bar)
- Easy to read 4" (100 mm) diameter pressure gauge
- High pressure system bleed valve
- Water suction strainer with crow's foot connector
- Supplied with 15 ft (4.5 m) high pressure hose with swivel
- Heavy duty enclosure with integral wheels and handle for portability

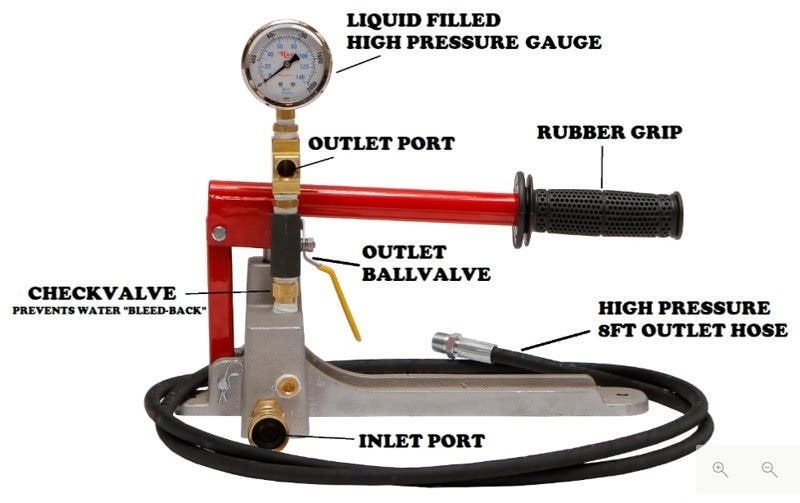

Hydrostatic Test Pump, Manual
- For Use With: Water
- Port, Output: 1/4" FNPT
- Port, Source Inlet: 3/4" Female GHT (Garden Hose
- Thread)
- Power Source: Manual
- Pressure, Input, Max: N/A Water Pump
- Pressure, Output Max: 500 psi (34.47 bar)

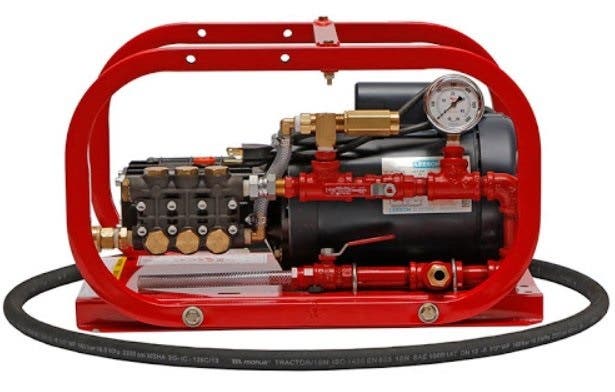

Hydrostatic Test Pump, Electric
- Engine or Motor: 1/2 HP, 60 Hertz 110/220V
- Flow Rate: 3 GPM @ 300 psi (20.68 bar)
- For Use With: Water
- Horsepower: 1/2 HP
- Port, Output: 3/4" FNPT
- Port, Source Inlet: 3/4" Female GHT(Garden Hose Thread)
- Power Source: Electrical
- Pressure, Input, Max: N/A Water Pump
- Pressure, Output Max: 300 psi (20.68 bar)
| Image | Size | Press., Max Output | Pressure, Input, Max | Max Flow Rate | Style | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|---|---|
|
15" L X 21" W X 44" H | 10,000 psi (689.65 bar) | 100 psi (6.89 bar) Max Air | 1.0 GPM @ 100 PSI | B-Style | 100 Lb (45.36 Kg) | 938-9299- |
$30,492.00
|
||
|
15" L X 21" W X 44" H | 3,600 psi (248.27 Bar) | 100 psi (6.89 bar) Max Air | 2.7 GPM @ 100 PSI | B-Style | 100 Lb (45.36 Kg) | 938-9236- |
$25,326.00
|
||
|
15" L X 21" W X 44" H | 1,000 psi (68.96 bar) | 100 psi (6.89 bar) Max Air | 7.50 GPM @ 100 PSI | B-Style | 100 Lb (45.36 Kg) | 938-9210- |
$24,570.00
|
||
|
22" L X 14" W X 14" H | 300 psi (20.68 bar) | N/A Water Pump | 3 GPM @ 300 psi (20.68 bar) | Electric Hydrostatic Test Pump | 61 Lb (27.67 Kg) | 938-27819-8 |
$1,816.92
|
||
|
18" L X 17" W X 15" H | 500 psi (34.47 bar) | N/A Water Pump | Manual Hydrostatic Test Pump | 16 Lb (7.26 Kg) | 938-27818-8 |
$642.47
|
