Smoke Test Equipment - 938-95
Petersen Products offers a variety of smoke test equipment and accessories for your pipeline testing needs.

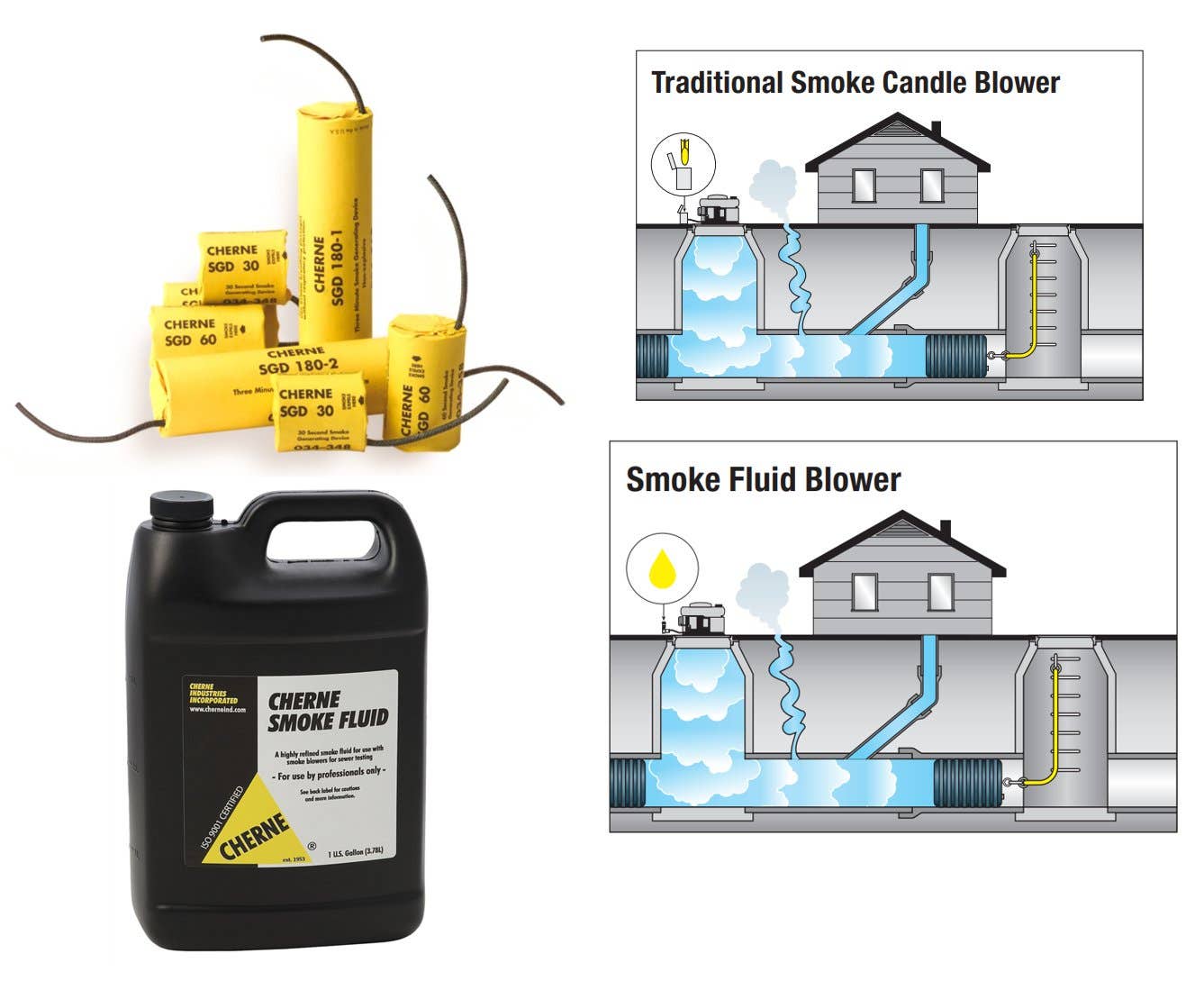

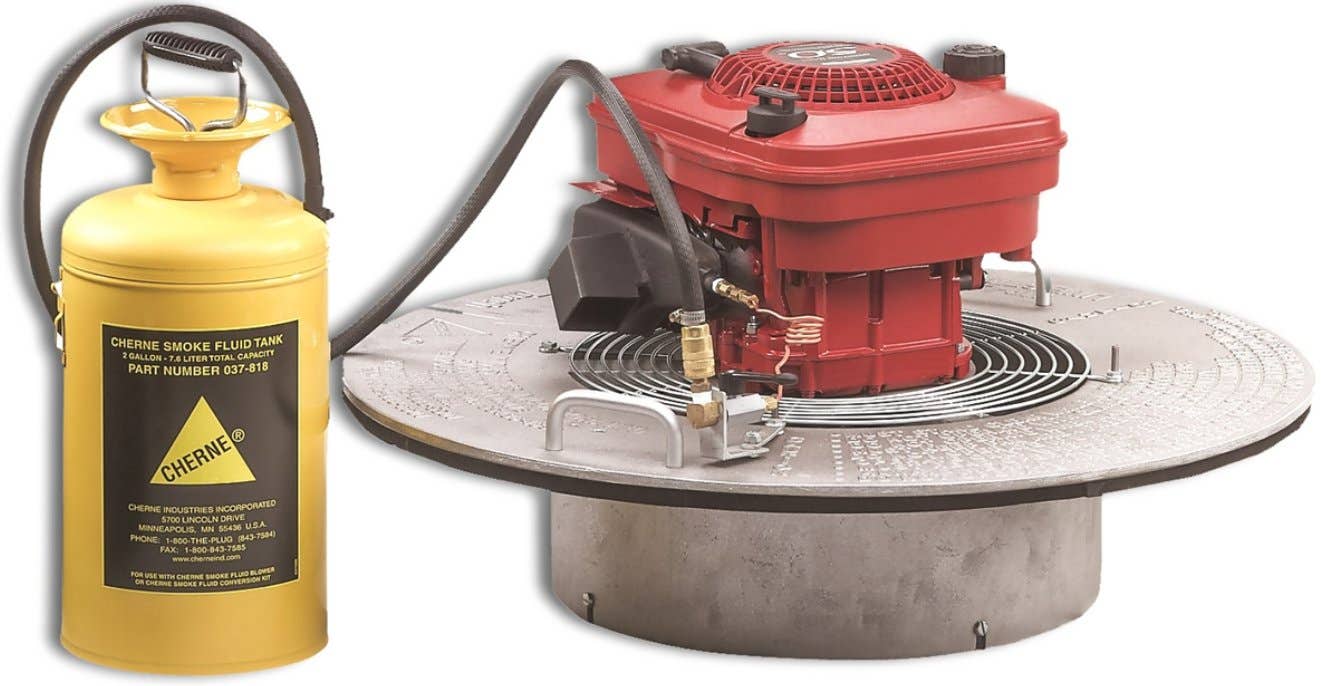

Smoke Blower Kit generates up to 3,769 cubic feet per minute of air flow*
Smoke Blower Features:
- Effectively identifies inflow

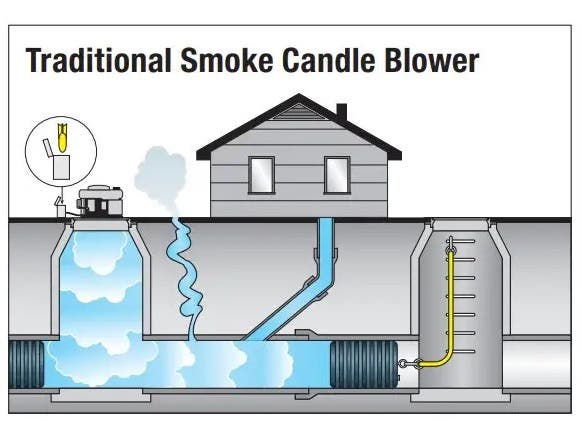

- For use with traditional liquid smoke or smoke bombs and smoke emitters
- Briggs & Stratton engine
- Generates up to 3,769 cubic feet per minute of air flow*
- Made of lightweight, cast aluminum
Equipped with:
- ½" foam cell gasket to ensure a leak-free seal on manholes and minimize vibration
- Smoke bomb box holder (traditional smoke blower only)
- Pressurized tank, hose and all necessary components (liquid smoke blower only)
*CFM performance based on independent laboratory tests. When tested side-by-side at an independent air flow laboratory, Cherne's line stringer, ventilator, and smoke blower beat the competition at every flow condition
Smoke Emitter Features:
- Easy to Use
- Variety of duration and Cu Ft coverage
- Smoke available in different colors
- Can be used with most smoke blowers
- Convenient case
Caution:Only introduce sewer smoke bombs/emitters into a plumbing system through a smoke blower. If smoke is put into a drain-waste-vent system in this manner, temperature is not an issue.
Under no circumstances should these industrial smoke bombs/emitters be placed inside of a pipe. (They will burn the pipe, may ignite any methane present in the line.)
| Image | Range Of Use | Volume CuFt | Color | Quantity Per Case | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|
|
Up to 3 Minutes | 1200 CU FT | White | 5 PER BOX | 2 Lb (0.9 Kg) | 938-9500-0180X2 |
$33.33
|
||
|
Up to 4 Minutes | 2500 CU FT | Red | 5 PER CASE | 2 Lb(0.9Kg) | 938-9500-0180X1 |
$83.33
|
||
|
Up to 90 Seconds | 600 CU FT | White | 10 PER CASE | 1 Lb (0.91 Kg) | 938-9500-0060X1 |
$33.33
|
||
|
Up to 8 Minutes | 18,000 CU FT | White | One Unit | 1Lb (0.91kg) | 938-9500-00480 |
$110.00
|
||
|
Up to 45 Seconds | 150 CU FT | White | 10 PER CASE | 1 Lb (0.91 Kg) | 938-9500-0045 |
$25.00
|
||
|
Up to 4 Minutes | 2500 CU FT | White | 5 PER CASE | 2 LB (0.9Kg) | 938-9500-00240 |
$63.33
|
Smoke Test Fluid
Smoke Fluid Features:
- Produces thick, dense smoke
- Easy-to-regulate
- Virtually indefinite storage life
| Image | Description | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|
|
Fluid Smoke: Fifty-five Gallon Drum | 406 Lb (184.16 Kg) | 938-9520-055 |
$2,640.00
|
||
|
Fluid Smoke Pressure Container and Hose: 2 Gallon Capacity | 7 Lb (3.18 Kg) | 938-9520-02 |
$113.00
|
||
|
Fluid Smoke: Five Gallons (Sold 1 per Case) | 40 Lb (18.14 Kg) | 938-9520-005 |
$334.00
|
||
|
Fluid Smoke: One Gallon | 8 Lb (3.63 Kg) | 938-9520-001 |
$88.30
|
| Image | Description | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|
|
Conversion Kit: from Smoke Bomb to Fluid Smoke, Briggs & Stratton Engine. | 10 Lb (4.54 Kg) | 938-9500-1020 |
$612.00
|
||
|
Accessories: Smoke Bomb Holding Cage | 2 Lb (0.91 Kg) | 938-9500-02 |
$118.00
|
||
|
Accessories: Smoke Blower Replacement Fan (Left Pitch) | 3 Lb (1.36 Kg) | 938-9500-01 |
$236.00
|
