For plumbing contractors, municipal maintenance crews, and facility management professionals, clogged drains are a routine but critical challenge. Whether dealing with grease buildup in commercial kitchens, sediment accumulation in industrial pipelines, or recurring blockages in sewer laterals, restoring proper flow requires the right drain cleaning equipment. The effectiveness of any drain cleaning operation depends not only on identifying the cause of the blockage but also on selecting the most appropriate tool for the job.

Today, professionals have access to a wide range of drain cleaning tools, from traditional drain snakes and augers to advanced hydro jetting systems, inspection cameras, and water-powered drain flushers. Each tool offers distinct advantages depending on the type of obstruction, pipe size, and accessibility of the drainage system. Understanding how these tools work and where they are most effective can help improve cleaning efficiency, reduce downtime, and support long-term pipe maintenance.

This article explores the best drain cleaning tools used by professionals and explains what each solution offers.

Professional drain cleaning requires a combination of equipment because drain blockages vary significantly in composition, location, and severity. The following factors explain why contractors and maintenance professionals rely on multiple drain cleaning tools rather than a single solution.

• Drain Systems Vary Significantly in Size and Configuration:
  Residential drain lines, commercial branch drains, sewer laterals, and municipal mains differ considerably in diameter, length, pipe material, and accessibility. Equipment that performs well in a small drain line may not be suitable for cleaning larger pipelines or longer pipe runs.
• Blockages Can Have Different Compositions:
  Drain obstructions can range from grease, sludge, soap residue, and organic debris to mineral scale, tree roots, and solid foreign objects. Because each type of blockage responds differently to cleaning methods, professionals must select equipment based on the specific condition of the pipeline.
• Pipe Materials Require Different Cleaning Approaches:
  Drain systems may contain cast iron, PVC, clay, concrete, or older galvanized piping. Each material responds differently to mechanical cleaning forces and water-based cleaning methods. Choosing the appropriate equipment helps remove blockages effectively while minimizing unnecessary stress on the pipe.
• Some Applications Require Pipe Cleaning, Not Just Clog Removal:
  Removing a localized blockage may restore flow temporarily, but accumulated deposits often remain attached to the pipe wall. In many cases, contractors must perform more thorough pipe cleaning to remove grease, sludge, sediment, and other buildup that can contribute to recurring drainage problems.
• Using the Wrong Tool Can Increase Maintenance Costs:
  Relying on a single drain cleaning method may result in incomplete blockage removal, recurring service calls, reduced cleaning efficiency, or unnecessary pipe damage. Maintaining a combination of drain cleaning tools allows professionals to match the cleaning method to the specific requirements of each job.

Selecting the right drain cleaning equipment requires evaluating the blockage, pipe characteristics, cleaning objectives, and jobsite requirements. The following factors can help contractors and maintenance professionals choose the most appropriate tool for each application.

• Match the Tool to the Type of Blockage:
  The composition of the blockage is a primary consideration when selecting drain cleaning equipment. Soft obstructions such as grease, sludge, soap residue, and organic debris often respond well to hydraulic cleaning methods, while roots, hardened scale, and solid objects may require mechanical cutting, retrieval, or high-pressure cleaning equipment.

• Consider Pipe Diameter and Length:
  Drain cleaning tools should be matched to the size and configuration of the piping system. Small branch drains, sewer laterals, and large-diameter main lines present different cleaning challenges. Equipment designed for the pipe's diameter and length typically delivers more effective cleaning and operational efficiency.
• Evaluate Pipe Material and Condition:
  Pipe material and structural condition can influence the appropriate cleaning method. Older cast iron, clay, or deteriorated piping may require a less aggressive cleaning approach than newer PVC systems. Selecting compatible equipment helps reduce the risk of unnecessary wear while maintaining cleaning effectiveness.
• Determine Whether the Goal Is Clog Removal or Pipe Cleaning:
  Some applications only require removing a localized obstruction to restore flow, while others require cleaning accumulated deposits from the pipe wall. Understanding the desired outcome helps professionals choose between mechanical cleaning tools, hydraulic cleaning equipment, or a combination of both.
• Prioritize Efficiency and Ease of Deployment:
  Professional contractors often need equipment that can be deployed quickly and used across a variety of drain cleaning applications. Portable, easy-to-operate tools that address common blockage conditions can help reduce setup time, improve productivity, and support efficient maintenance operations.

Professional drain cleaning relies on a set of established tool categories. Each one addresses a different part of pipe drain cleaning work, from small branch lines to full main line drain cleaning.

1. Water-Powered Drain Flushers:

Water-powered drain flushers use hydraulic pressure from a standard water supply to clear drain lines without the need for electricity, gas engines, or dedicated pumping equipment. Connected directly to a garden hose or water spigot, they generate a combination of water pressure and flow that helps break up and flush soft to moderate blockages such as grease, sludge, soap residue, and organic debris. Their compact design allows them to be used in confined spaces and locations with limited access. The absence of motors and engines reduces noise, exhaust emissions, and equipment maintenance requirements, making water-powered drain flushers a practical solution for routine drain maintenance and preventive cleaning between major service intervals.

Each of these drain cleaning tools serves a specific purpose within a professional maintenance program. Among these options, water-powered hydraulic drain flushers occupy a unique position by combining portability, ease of deployment, and effective cleaning performance. The following comparison highlights how DrainJet® Hydraulic Drain Flushers offered by Petersen Products Company differ from traditional drain cleaning equipment and where they provide the greatest operational advantages.

2. Drain Snakes and Augers:

Drain snakes and augers remain a standard drain cleaning tool for clearing localized blockages in smaller drain lines. Available in manual, electric, and motorized configurations, they use a flexible rotating cable to penetrate, break apart, or retrieve obstructions. Hand-crank augers work well for sink, tub, and small branch line clogs within 25 feet of the access point; however, motorized augers extend reach and cutting force for tougher blockages in 2-to-4-inch lines.

Various cable heads can be selected based on the clog type, including bulb heads for grease and spear heads for solid debris. They are commonly used in sinks, tubs, floor drains, and branch lines, but are generally best suited for point clogs rather than removing scale or deposits along the full pipe interior.

3. Sectional and Drum Machines:

Sectional and drum machines are powered cable-cleaning systems designed for larger drain lines and more demanding cleaning applications. They provide greater cable reach, torque, and cutting power than standard augers, making them well suited for sewer laterals, main drain lines, root intrusion, and compacted debris removal. Sectional machines use interchangeable cable sections that can be added as needed, allowing technicians to navigate longer pipe runs and work around bends more effectively.

Both systems can be equipped with specialized cutting heads to address different blockage conditions. Their power and versatility make them a common choice for main line drain cleaning, although proper operator training is essential to ensure safe operation and prevent cable damage.

4. Hydro Jetting Equipment:

Hydro jetting equipment uses pressurized water to clean the interior surfaces of drain and sewer pipes instead of relying on mechanical cutting action. Operating pressures typically range from 1,500 to 4,000 PSI, depending on pipe diameter, blockage severity, and cleaning requirements. Specialized nozzles can be selected to flush grease, remove scale, or cut through root intrusion while simultaneously flushing debris downstream.

By removing buildup along the full pipe interior, hydro jetting helps restore pipe capacity and improve flow. The process requires a clean water source and adequate drainage for wastewater, and a camera inspection is often recommended before jetting older or potentially damaged pipes.

Traditional mechanical tools and hydraulic flushing equipment address clogs through different physical actions. The table below outlines key differences technicians should weigh when selecting equipment.

The DrainJet® Hydraulic Drain Flusher uses available water pressure and flow to create a hydraulic flushing action inside the pipe.

Step 1: Connect DrainJet to Water Hose

·       Step 2: Insert DrainJet into Drain, even around bends

·       Step 3: Turn On water. DrainJet expands to lock into drain and flushes out clogs

·       Typical operating pressures range from 30 to 100 psig, depending on the model and application.

DrainJet® Hydraulic Drain Flushers are available in multiple models, sizes, and connection configurations to accommodate different pipe diameters, cleaning requirements, and operating environments. If you are unsure which model is best suited for your requirements, contact our specialists at sales@petersenproducts.com or call at 262-692-3100 for product guidance, sizing recommendations, and application support. Our team can help you identify the most effective DrainJet® solution for your specific drain cleaning and maintenance needs.

1. What is the best drain cleaning tool for a contractor who handles both residential and commercial jobs?
For contractors handling both residential and commercial drain cleaning, DrainJet® drain flushers are a versatile solution. They use water pressure to quickly clear grease, sludge, soft blockages, and debris from drain and sewer lines without electricity or moving parts. For stubborn root intrusions or heavy obstructions, contractors can pair DrainJet® tools with augers or hydro jetting equipment for a complete drain cleaning solution.

2. How often should main line drain cleaning be performed on commercial properties? Frequency depends on usage and pipe condition, though many facilities schedule cleaning every three to six months to prevent buildup.

3. Can hydraulic flushing damage older pipes?
Adjustable pressure settings allow technicians to match flow to pipe condition, which lowers the risk of damage compared to fixed high-pressure jetting.

4. What pipe diameter range does the DrainJet® work best with?
The DrainJet® suits a range of residential and light commercial pipe diameters from 1.375" to 6"; technicians should confirm specifications for the exact line size before use.

Disclaimer: The information may be used but with no warranty or liability. This information is believed to be correct but should always be double-checked with alternative sources. Strictly adhere to and follow all applicable national and local regulations and practices.

Regardless of these comments, it is always necessary to read and understand manufactures instructions and local regulations prior to using any item.

Grease accumulation begins when hot fats, oils, and food residues enter a pipeline and cool as they move through the system. As the temperature drops, these materials solidify and stick to the pipe walls. Each layer traps more debris, causing the internal diameter to narrow. Over time, this heavy accumulation creates flow restrictions and eventually leads to complete blockage. The result is a grease clogged drain that becomes harder to clear with basic maintenance.

Many people rely on chemical cleaners because they seem quick and convenient, but these products aren’t designed to break down the thick, waxy layers that form inside pipelines. Hardened grease bonds tightly to the pipe walls, so chemicals often react only with the surface layer and leave most of the buildup untouched. In some cases, the force of the liquid cleaner can even push the partially loosened obstruction deeper into the system, creating a more difficult grease clogged pipe problem later.

Because of this, chemical solutions offer very little long-term improvement. Safer, non-chemical methods work more effectively as a grease clog remover because they physically clear the blockage and remove the residue that causes recurring issues. These approaches also help prevent future accumulation, making them a more reliable option for any grease in drain pipe situation.

What Causes a Grease Clogged Drain?

A grease clogged drain forms when fats, oils, and food particles enter the pipeline and begin to cool, solidifying along the pipe walls. This hardened layer gradually traps additional debris, making the blockage thicker and more resistant to standard cleaning methods. As a result, a grease clogged pipe becomes increasingly difficult to clear over time, often requiring more intensive maintenance.

Certain habits accelerate this buildup. In commercial kitchens or busy households, pouring cooking oil down the sink, rinsing greasy dishes without scraping them first, and disposing of food scraps in the drain all contribute to recurring grease in drain pipe problems. Using effective grease clog remover methods is essential to maintain clear, free flowing drains.

4 Signs You Have Grease in the Drain Pipe

Identifying a grease clogged drain early can prevent more serious issues. Common signs include:

• Slow drainage: Water takes longer than usual to flow, indicating buildup inside the pipe.
• Gurgling noises: Unusual sounds from drains often signal trapped air caused by blockages.
• Standing water after running equipment:  Water pools in sinks or drains instead of flowing freely.
• Sudden backups in commercial sinks or floor drains: Heavy buildup can trigger abrupt blockages, disrupting operations.

Recognizing these signs early helps in selecting an effective grease clog remover and preventing further grease in drain pipe issues.

Why You Should Avoid Chemical Grease Clog Removers?

Using chemical cleaners might seem like an easy solution for a grease clogged drain, but they come with several drawbacks. Harsh chemicals can damage seals, gaskets, and the inner walls of pipelines, weakening the system over time.

They are also often ineffective against thick, hardened grease, leaving significant buildup untouched. Beyond plumbing concerns, these chemicals pose environmental and safety risks, including skin irritation, toxic fumes, and harmful wastewater.

Most importantly, they offer only a short-term fix, as the underlying grease in drain pipe continues to accumulate, leading to recurring blockages and the need for repeated interventions.

Safe and Non-Chemical Methods to Clear a Grease Clogged Drain

Clearing a grease clogged drain doesn’t always require harsh chemicals. Several safe, effective methods can help remove grease buildup and restore flow.

1. Boiling Water Flush
   Pouring boiling water directly into the pipeline helps melt and loosen grease layers inside the pipe. Start by bringing a large pot of water to a boil, then slowly pour it down the drain in stages. Repeat this process several times for best results, allowing the hot water to dissolve as much grease as possible.
2. Salt and Hot Water Method
   Adding salt to hot water creates a mild abrasive solution that helps break down thick grease deposits. Pour a generous amount of salt into the drain, followed by hot water, and let it sit for 15–20 minutes before flushing.
3. Manual Removal Using a Mechanical Cleaning Methods like drain snake
   For stubborn blockages, mechanical cleaning may be necessary. A drain snake can physically remove accumulated grease, but it should be used carefully to avoid damaging pipe walls or joints. Insert the snake slowly and rotate it to catch and pull out the debris.
4. Wet/Dry Vacuum
   A wet/dry vacuum can be effective for removing grease clogs near the drain opening. Set the vacuum to liquid mode, create a tight seal around the drain, and extract the softened grease. This method works best for partial blockages or standing water caused by grease clogged pipe.
5. Sewer Jetting
   Also known as hydro-jetting or water jetting, cuts through grease, dirt, sand, and roots blocking your pipes. The intense pressure created by the sewer jetter nozzle, up to 3,500 psi, not only breaks down obstructions but cleans the sewer line. However, the high water pressure could do more harm than good with older or weakened pipes. Sewer Jetting is also more expensive than other methods.

Hot and Cold Water Pressure Tools for Grease Removal

In commercial and industrial settings, water-powered drain flushers provide a highly effective, chemical-free way to clear grease buildup. These tools use controlled hot or cold water pressure to create a hydraulic force that loosens and dislodges hardened grease without damaging the pipeline.

Here’s how they work and why they’re preferred in professional environments:

1. How Water Pressure Tools Break Up Grease?
   The tool like flusher is inserted into the drain and connected to a pressurized water source. As water flows in, the flusher inflates and seals against the pipe wall, directing a high-volume, high-pressure stream downstream. When hot water is used, the heat helps soften and melt grease, while the force of the flow lifts and washes the residue away.
2. Why These Tools Are Common in Commercial Kitchens & Maintenance?
   In restaurants, food-service facilities, and industrial food prep lines, grease is a constant problem, and chemical cleaners may damage equipment or seals. Petersen’s DrainJet® , Dr. FixIt® and Econo hydraulic flushers; are designed specifically for such environments. Maintenance teams favor these tools because they’re fast, usable and don’t introduce corrosive agents into the system.
3. Key Benefits are No Chemicals use & Low Pipe Stress
   Because they rely only on water, there’s no chemical exposure for workers, and no risk of harming rubber gaskets or pipe linings. The hydraulic action minimizes stress on the pipe: there’s no mechanical scraping, and the flexible design of the DrainJet®  Drain flushers protect the interior surfaces even under pressure.

Preventing Grease Buildup in Drain Pipes

Preventing a grease clogged drain is easier than dealing with one after it forms. Adopting daily best practices helps keep pipelines clear:

• Scrape off dishes before washing to remove fats and food particles.
• Use strainers to trap solids and prevent them from entering the drain.
• Run hot water after washing greasy items to help flush away residual grease.

For commercial operations, additional maintenance steps make a big difference:

• Schedule regular drain flushing to prevent buildup in high use pipelines.
• Use water-powered cleaning tools like Petersen Product’s drain flushing hoses for effective, chemical free cleaning.
• Train staff on proper disposal methods to ensure grease doesn’t enter the drain system.

These practices help maintain clear, free flowing drains and reduce the risk of recurring grease in drain pipe problems.

Maintaining Clean Drains Without Chemicals

Managing grease buildup doesn’t have to involve harsh cleaners or disruptive repairs. By understanding how grease forms, recognizing early warning signs, and using safe, non-chemical methods, you can maintain clear, reliable drain flow without putting stress on your pipeline system. For commercial and industrial operations, consistent maintenance routines and water-powered tools offer dependable results and help prevent recurring grease clogged drain issues.

Petersen Product’s water-powered Drain Flushers and Sewer Flushers provide a safe, effective alternative to chemical cleaners by using controlled water pressure to clear pipes of various sizes and materials without damaging seals or pipe walls.

With the right daily practices and scheduled maintenance, both residential and commercial kitchens can keep their systems cleaner, safer, and operating smoothly for the long term.

For details on drain Flushers and sewer flushers, contact Petersen Products at sales@petersenproducts.com or call at 262-692-3100.

Disclaimer: The information may be used but with no warranty or liability. This information is believed to be correct but should always be double-checked with alternative sources. Strictly adhere to and follow all applicable national and local regulations and practices.

Regardless of these comments, it is always necessary to read and understand manufactures instructions and local regulations prior to using any item.

Cross contamination between pipeline sections occurs when product, residue, or pressure from an active pipeline section unintentionally enters the area under maintenance. Even a small backflow can introduce unwanted m, creating safety risks, equipment stress, and operational delays.

This risk is especially critical during maintenance, repairs, or testing, when partially isolated sections are vulnerable. Without proper controls, field teams may be exposed to hazardous materials, and facilities can face unintended releases or costly cleanup. Effective pipeline isolation ensures safe work, system integrity, and protection throughout maintenance.

What Causes Pipeline Cross Contamination?

Pipeline cross contamination can happen due to several factors:

• Flowback from adjacent sections: Material or residue from active lines is pushed into the maintenance area of the pipeline.
• Residual material in the line: Leftover material stored in the pipeline may shift when pressure changes happen in-between the sections.
• Pressure imbalance: Pressure imbalance between the sections can cause the leakage past isolation points.
• Selection of improper isolation equipment: Improper selection or sizing of the isolation equipment can result in an incomplete seal and potential cross contamination.
• Lack of venting or drainage: Trapped material or pressure may move unexpectedly from the active pipelines to the maintenance area.

Addressing these factors is critical for pipeline cross contamination prevention and effective pipeline isolation during the maintenance.

Risks of Pipeline Cross Contamination During Maintenance

Cross contamination during maintenance can pose serious operational, safety, and environmental challenges. Understanding these risks helps personnel to take the necessary precautions and implement effective pipeline isolation measures,

• Safety hazards for maintenance personnel
  Unintended material flows into the work area can expose maintenance personnel to harmful materials, increasing risks during repairs, inspections, and shutdown work.
• Material mixing that damages the system
  When incompatible materials enter the wrong pipeline section, they can cause corrosion, blockages which affect long term system performance.
• Environmental releases of the flowing material
  Material that reaches an open or vented section may escape into the environment, requiring cleanup and interrupting the maintenance schedule.
• Higher cleanup, downtime, and repair costs
  Contamination often leads to additional flushing, equipment checks, and part replacements. All of this leads to do higher downtime and increased repair costs.

The Role of Pipeline Isolation in Pipeline Cross Contamination Prevention

Pipeline isolation creates a secure separation between active and inactive sections of a system. By installing reliable barriers, operators can prevent material, pressure, or residue from moving into areas under maintenance.

Proper isolation is the foundation of pipeline cross contamination prevention. It ensures that work zones remain safe, protects equipment from unexpected exposure, and maintains system integrity. Without effective isolation, even brief backflow or seepage can compromise maintenance efforts, increase downtime of system, and elevate safety and environmental risks.

Types of Isolation Methods Used in Pipeline Maintenance

The following isolation methods are used in pipelines maintenance,

1. Single isolation method:
   Single isolation method is typically employed for low-risk maintenance operations, where the conveyed medium is not hazardous or the process conditions are stable. It establishes a primary physical barrier between the active and inactive pipeline segments. This may not fully mitigate the risk of flowback of the material under pressure fluctuations or partial system operations.
2. Double isolation method:
   It involves the installation of a secondary barrier in series with the primary isolation point. This arrangement significantly reduces the likelihood of leakage past the initial seal and is recommended for maintenance activities involving moderate-risk conditions or potentially reactive materials.
3. Double block and bleed isolation:
   Double block and bleed isolation involves placing two isolation points with a vented or bleed space in between. This setup allows operators to drain, vent, or monitor the space to confirm the integrity of the seals. It is widely used for critical tasks where effective pipeline cross contamination prevention is essential, ensuring safe maintenance and system reliability.

Common Tools Used for Pipeline Isolation

Effective pipeline isolation relies on specialized tools that create secure barriers, preventing cross flow during maintenance or testing. Selecting the right tool for the pipeline size, pressure, and medium is critical to ensure safety and maintain system integrity.

• Mechanical Plugs
  Mechanical pipe plugs expand against the pipe wall to create a secure seal against the gas and liquid flow through pipelines during maintenance. They are commonly used in straight sections of the pipeline where precise sizing is possible.

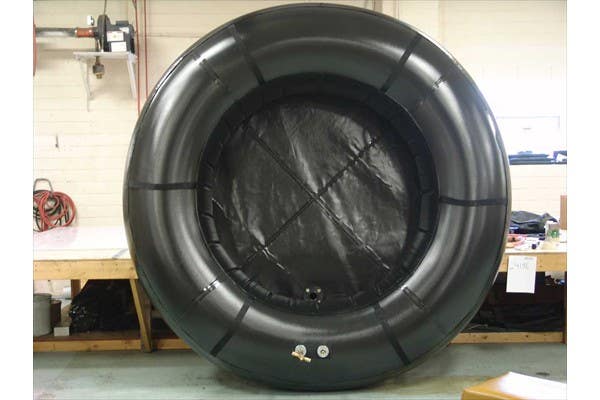

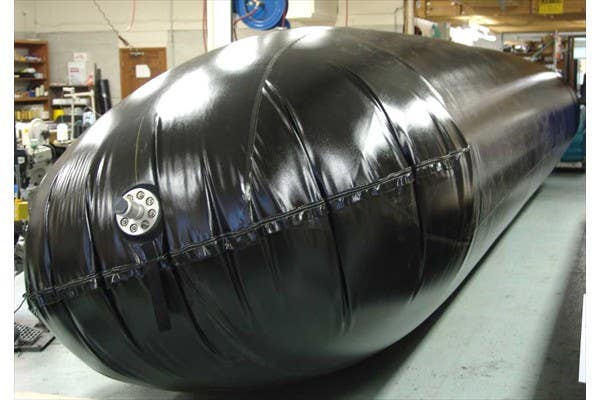

• Inflatable Plugs
  Flexible bladders that conform to the pipe’s internal diameter, providing a reliable barrier for irregular or large-diameter pipelines. Their adaptability makes them suitable for varying pipe sizes and conditions.

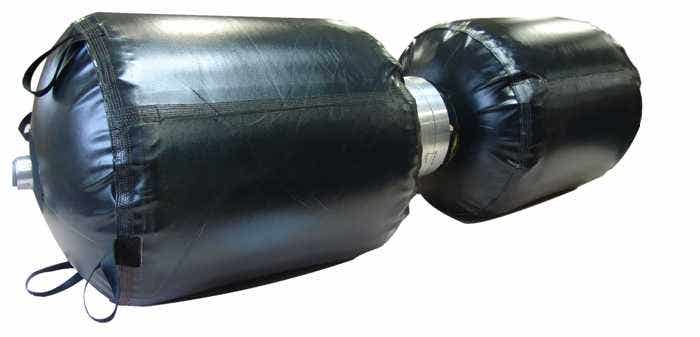

• Double Block and Bleed Plugs
  A double block and bleed inflatable plug is a engineered dual seal plug to allow a positive isolation of toxic or flammable Materials. The vent between the two seals allows the operator to monitor the seal integrity, vent any product that seeps past the first seal, or introduce an inert gas or water between the seals for a positive isolation. This configuration ensures maximum safety in critical maintenance tasks.
• Pressure Monitoring Equipment
  Installed in the isolated segment to detect leaks or pressure fluctuations, confirming that the barrier is holding effectively. Continuous monitoring enhances safety and provides real-time assurance of isolation performance.

Best Practices for Long-Term Cross Contamination Prevention

Ensuring long-term protection against pipeline cross contamination requires a combination of regular maintenance, proper procedures, and the right tools. Adopting consistent best practices helps maintain system integrity and protects both personnel and the environment.

1. Scheduled Inspections of Isolation Equipment
   Regular inspections ensure that mechanical, inflatable, and double Block and bleed plugs remain in good condition and function reliably. Proactive checks help identify wear or damage before it compromises pipeline cross contamination prevention.
2. Standardized Maintenance Procedures
   Consistent procedures for installation, venting, and pressure testing reduce the risk of human error and ensure reliable pipeline isolation during all maintenance activities.
3. Documentation and Training
   Maintaining detailed records of isolation operations and providing training for personnel reinforces proper practices, ensures regulatory compliance, and minimizes the likelihood of contamination events.
4. Use of Properly Designed Tools
   Selecting isolation tools that meet the requirements for size, pressure, chemical compatibility, and temperature ensures effective sealing and long-term protection against cross contamination in diverse pipeline systems.

Protecting Your Pipeline Systems During Maintenance

Cross contamination between pipeline sections can compromise safety, equipment integrity, and environmental compliance. Preventing the cross-contamination requires understanding of its causes, assessing risks, and implementing effective pipeline isolation strategies.

Using appropriate isolation methods, tools, and procedures combined with regular inspections, training, and documentation which ensures maintenance is conducted safely, efficiently, and reliably. Following these best practices provides long-term protection for pipeline systems and the surrounding environment which reduces the downtime, repair costs, and operational risks.

For details on effective isolation methods to prevent cross-contamination, contact Petersen Products at sales@petersenproducts.com or call at 262-692-3100.

Disclaimer: The information may be used but with no warranty or liability. This information is believed to be correct but should always be double-checked with alternative sources. Strictly adhere to and follow all applicable national and local regulations and practices.

Regardless of these comments, it is always necessary to read and understand manufacturer's instructions and local regulations prior to using any item.

Accurate pipeline pressure calculation is crucial for engineers, particularly when designing, testing, and ensuring the safety of pipeline systems. One key element in these calculations is the conversion of feet of head to pounds per square inch (PSI), which is fundamental for tasks such as pressure testing, pump sizing, and understanding static head pressures. This guide will walk you through the practical steps for converting feet of head to PSI, a process that directly impacts the way pipelines are assessed and tested.

What Is “Feet of Head” in Pipeline Systems?

When you hear “feet of head,” think of it as a vertical column of fluid exerting pressure at the bottom. This term describes the pressure a column of fluid exerts due to its weight, with the pressure increasing as the column height increases. If you fill a standpipe with water to a height of 50 feet, the pressure at the bottom of that pipe is the result of those 50 feet of head. This is hydrostatic pressure, the force exerted by a stationary fluid due to gravity alone.

In pipeline work, feet of head come into play when dealing with elevation changes. A pipeline running downhill from a tank or pump station experiences increasing pressure as the fluid descends. At any given point along that pipe, the static pressure equals the elevation difference (in feet) multiplied by the fluid's weight per foot of height.

Static head differs from dynamic factors like friction loss or velocity head. Static head is purely the result of elevation and fluid density. It doesn't account for flow resistance, pipe roughness, or other losses that occur when fluid moves through a system. During pipeline pressure calculation from feet of head, you're isolating the hydrostatic component, which is critical for pre-test pressure checks and plug seal verification.

How to Convert Feet of Head to PSI

Feet of head to PSI conversion is straightforward when you know the right formula. The basic equation is:

                      Pressure (psi) = Head (ft) × 0.433 × Specific Gravity (SG)

Here’s why 0.433 is used: it’s derived from the weight density of water (62.4 pounds per cubic foot) divided by the area of one square foot (144 inches²). If you’re working with water, this constant works perfectly for your calculations. But if the fluid is something other than water, you’ll need to account for the fluid’s specific gravity.

Let’s break it down with a simple example. If you have a column of water that’s 50 feet tall:

                     50 ft of head (water) PSI = 50 × 0.433 = 21.65 psi.

This gives you the pressure at the base of the column.

Considering Specific Gravity (SG)

Specific Gravity (SG) comes into play when the fluid is anything other than water. Each fluid has a different density, which affects the pipeline pressure calculation. For example, seawater has an SG of around 1.025, while oil could have a much higher SG. To calculate the pressure for these fluids, you’d simply multiply the result from the feet of head formula by the fluid’s specific gravity.

Converting PSI Back to Feet of Head

Sometimes, you need to convert PSI back into feet of head. The reverse calculation is:

                               Head (ft) = PSI × 2.31 / SG

Practical Use Cases

This reverse calculation is common in pump selection. Manufacturers provide pump curves in feet of head, not PSI. If your system requires 50 psi at the discharge, you convert that to head:

                                Head (ft) = 50 × 2.31 = 115.5 feet

You then select a pump that can deliver 115.5 feet of total dynamic head (TDH) at your required flow rate.

Quick Conversion Reference

• 10 psi = 23.1 ft of water head
• 20 psi = 46.2 ft
• 30 psi = 69.3 ft
• 50 psi = 115.5 ft
• 100 psi = 231 ft

These conversions assume fresh water at standard conditions. Adjust for specific gravity if working with other fluids.

Common Mistakes to Avoid When Calculating Pipeline Pressure from Feet of Head

Here are some common mistakes engineers should avoid when calculating pipeline pressure from feet of head and performing hydrostatic head calculations.

• Assuming all fluids behave like water (skipping SG): Each fluid has a different density. Oil, seawater, and other liquids have a specific gravity (SG) different from that of water, and using the incorrect SG leads to incorrect pipeline pressure calculation.
• Confusing pressure head with friction/dynamic head: Static head is the pressure generated by the liquid column alone, while friction or dynamic head refers to the pressure loss caused by flow resistance. Ensure you’re only considering static head for this calculation.
• Ignoring the temperature impact on fluid density: Temperature changes can affect the density of fluids. Don’t overlook this factor, especially for fluids like oil or gases, where density fluctuates with temperature changes.
• Not checking gauge pressure limits before testing: Always verify that the pressure limits of the gauges you’re using are suitable for the pressure you intend to measure. Exceeding the gauge limit can lead to inaccurate readings or equipment damage.
• Rounding too early in calculations: Small rounding errors early in the pipeline pressure calculation process can lead to significant discrepancies in the final pressure readings. Always round only at the final step.
• Forgetting that the 0.433 constant changes if units switch: The 0.433 constant is specific to feet of fluid. If you switch to different units (like inches or meters), the constant will change accordingly, which can impact your calculations.

Applying Feet of Head to PSI in Pipeline Testing & Isolation

When preparing for a hydrostatic test, you need to know the pressure at the lowest point in the system. That's where the highest load occurs, and where plugs or seals must perform under maximum stress. Start by identifying elevation differences between the test pump and critical points along the pipeline.

For a typical test setup:

1.      Measure the vertical drop from the test pump connection to the lowest valve or plug location.

2.      Multiply that drop (in feet) by 0.433 to get the hydrostatic pressure in PSI.

3.      Add the test pressure you plan to apply.

4.      Verify that all equipment (plugs, gauges, fittings) is rated for the total pressure.

Here are some core calculation inputs used by Petersen engineers to achieve accurate results:

• Freshwater constant (0.433 psi/ft): This is the constant used when dealing with water, which is essential for calculating pressure in most pipelines.
• Specific Gravity (SG) for non-water fluids: Different fluids have varying densities, so using the correct SG ensures accurate pressure calculation for substances like oil, seawater, or chemicals.
• Seawater head pressure (SG~1.025): Seawater has a specific gravity slightly higher than fresh water, so this factor is used when working with offshore pipelines.
• Elevation head in underground/subsea lines: For pipelines located below or above sea level, elevation changes must be factored in to calculate the pressure acting at various depths.

Pipeline Engineering Use Case

In pipeline pressure testing, elevation-based PSI checks ensure the test pressure accounts for hydrostatic load due to elevation. For inflatable plugs, the minimum seal pressure must exceed the pipeline pressure at the plug location, factoring in the additional pressure from elevation. For example, at 75 feet below the surface, an extra 32.5 psi must be considered.

Petersen Products offers solutions that rely on accurate feet of head to PSI conversion:

• Inflatable Pipe Plugs: Seals pipelines with inflation pressure based on system pressure and hydrostatic head at installation depth, fitting through smaller access points than mechanical plugs.
• Double Block and Bleed Multi-Flex® Line Stop Plugs: Used for high-pressure isolation, requiring accurate hydrostatic head calculations at each seal location to determine inflation pressure.
• Hydrostatic Test Pumps: Must overcome elevation head and residual pressure to deliver the baseline pressure needed before testing begins.

These calculations ensure accurate pressure for safe, effective operation.

Documenting PSI from Pressure Head

Engineers must log PSI from the fluid head separately in pipeline reports. This number serves as a reference for static conditions before introducing dynamic pressure or flow. It appears in several key documents:

·       Pre-test pressure confirmation: Before starting a hydrostatic test, record the static head pressure at each gauge location. This establishes the baseline before the test pump adds pressure.

·       Seal integrity records for line isolation: When using inflatable plugs, document the hydrostatic head at the plug location. This confirms that the plug inflation pressure accounts for the full static load.

·       Depth or elevation pressure communication between teams: Field crews and office engineers may use different reference points. Converting feet of head to PSI creates a common language for pressure discussions.

What this number is not:

·       Not friction loss PSI. That's a separate calculation based on pipe diameter, length, roughness, and flow rate.

·       Not pump discharge PSI. Discharge pressure includes elevation head plus friction plus any downstream back pressure.

·       Only static hydrostatic head pressure. It represents the weight of the fluid column at rest.

PSI from feet of head is a calculated static pressure reference, used to document the real hydrostatic force at elevation or depth.

Conclusion

Pipeline pressure calculation from feet of head is a core competency for engineers working with hydrostatic testing, pump systems, and line isolation equipment. The conversion formula (Pressure = Head × 0.433 × SG) provides a reliable method for determining static pressure at any point in a vertical fluid column.

Accurate feet of head to psi conversion ensures that inflatable plugs are properly sized, test pressures are correctly applied, and system documentation reflects actual operating conditions. Whether you're planning a pressure test, sizing a seal, or troubleshooting a pump, this calculation gives you the hydrostatic pressure baseline you need for safe and effective pipeline work.

Contact Petersen Products at sales@petersenproducts.com or call at 262-692-3100 to discuss the many options for stopping flow for short or long-term pipeline maintenance projects!

Disclaimer: The information may be used, but with no warranty or liability. This information is believed to be correct but should always be double-checked with alternative sources. Strictly adhere to and follow all applicable national and local regulations and practices. Regardless of these comments, it is always necessary to read and understand the manufacturer's instructions and local regulations prior to using any item.

Frequently Asked Questions

1. What pressure does feet of head represent in pipelines?
   Ans. Feet of head represents the static hydrostatic pressure created by the weight of a fluid column at a given elevation or depth, independent of flow or friction.
2. How do I convert feet of head to PSI for any fluid?
   Ans. Use the formula:
   PSI = Feet of Head × 0.433 × Specific Gravity (SG)
   For water, multiply feet of head by 0.433.
3. Why is specific gravity (SG) critical in subsea or underground pipelines?
   Ans.  Specific Gravity (SG) affects fluid weight, which directly impacts hydrostatic pressure. Accurate SG ensures correct pressure calculations at depth for testing and plugs for pipeline sealing.
