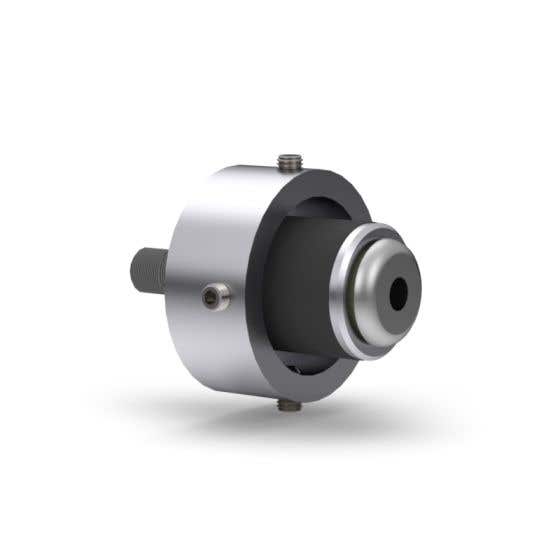

Pipe Plug, Mechanical, Hp Test, 1.9"-2.1" Dia, Mech Seal
$671.00
| By-Pass | 3/8" M |
|---|---|
| Country of Origin | USA |
| Dia. Max | 2.1" (53.34mm) |
| Dia. Min | 1.9" (48.26mm) |
| Lngth, Overall | Approx. 4.5" (114mm) |
| Lngth, Seal | 2" (51mm) |
| Material, Body | Aluminum |
| Material, Hardware | Plated Steel |
| Material, Seal | Nitrile |
| Nominal Pipe | 2" Sch 40 & Sch 80 |
| Pipeline Max PSI | 200 psi (13.79) |
| Plug Restraint Set Screw Torque | 20 FT-LBS |
| Plug Slip Restraint Method | OD set screw restraint |
| Pressure Pipeline Max Head | 462 ft (140.82 m) |
| Pressure, PSI | 230 |
| Sage Subcategory Number | W1459 |
| Seal Expansion System | Hex Nut |
| Seal Expansion Torque Ft/Lb | 50 FT-LBS |
| Seal Part Number | 931-4130-01902 |
| Shipping Wt. | 2 Lb (0.91 Kg) |
| Style | End of Pipe |
| Temperature Max. Service F | 200 F (93.33 C) |
