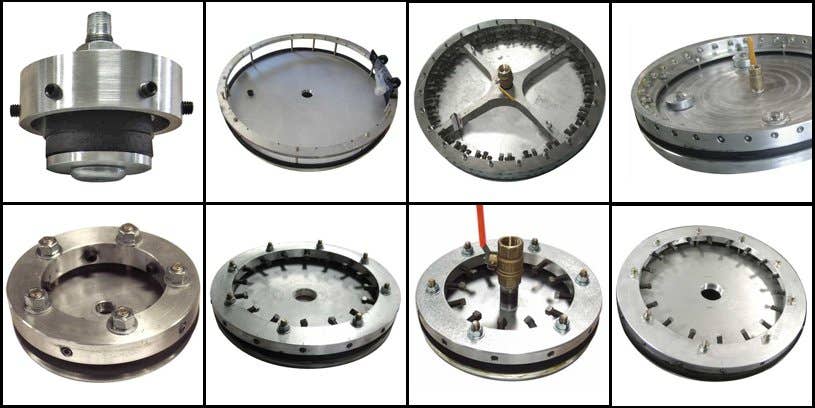

Pipe Plug, Mech High Pressure Test 145-9 Series
Pipe Plug, Mech High Pressure Test 145-9 Series
Image | Pipe Size, Nominal | Dia. Max | Dia. Min | By-Pass | Pipeline Max PSI | Pipeline Pressure Max Head | Style | Shipping Wt. | Item Number | Price | Qty | Action |
---|---|---|---|---|---|---|---|---|---|---|---|---|
36" Std | 35.875" (911mm) | 34.875" (886mm) | 2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe Plug | 176 Lb (79.83 Kg) | 145-9348- |
$8,196.88
|
|
||
34.875" (886mm) | 33.875" (860mm) | 2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe Plug | 170 Lb (77.11 Kg) | 145-9338- |
$7,968.98
|
|
|||
33.875" (860mm) | 32.875" (835mm) | 2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe Plug | 165 Lb (74.84 Kg) | 145-9328- |
$6,966.00
|
|
|||
32.875" (835mm) | 31.875" (810mm) | 2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe Plug | 158 Lb (71.67 Kg) | 145-9318- |
$6,760.68
|
|
|||
32" Std | 31.875" (810mm) | 30.875" (784mm) | 2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe Plug | 152 Lb (68.95 Kg) | 145-9308- |
$6,555.35
|
|
||
30.875" (784mm) | 29.875" (759mm) | 2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe Plug | 146 Lb (66.23 Kg) | 145-9298- |
$6,350.03
|
|
|||
30" Std | 29.875" (759mm) | 28.875" (733mm) | 2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe Plug | 140 Lb (63.5 Kg) | 145-9288- |
$6,143.63
|
|
||
28.875" (733mm) | 27.875" (708mm) | 2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe Plug | 130 Lb (58.97 Kg) | 145-9278- |
$5,938.30
|
|
|||
28" Std | 27.875" (708mm) | 26.875" (683mm) | 2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe Plug | 120 Lb (54.43 Kg) | 145-9268- |
$5,732.98
|
|
||
26.875" (683mm) | 25.875" (657mm) | 2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe Plug | 113 Lb (51.26 Kg) | 145-9258- |
$5,527.65
|
|
|||
25.875" (657mm) | 24.875" (632mm) | 2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe Plug | 130 Lb (59 Kg) | 145-9248- |
$5,315.88
|
|
|||
24.875" (632mm) | 23.875" (606mm) | 2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe Plug | 96 Lb (43.55 Kg) | 145-9238- |
$5,115.93
|
|
|||
24" Std | 23.875" (606mm) | 22.875" (581mm) | 1" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe Plug | 85 Lb (38.56 Kg) | 145-9228- |
$4,546.18
|
|
||
22.875" (581mm) | 21.875" (556mm) | 1" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe Plug | 78 Lb (35.38 Kg) | 145-9218- |
$4,355.90
|
|
|||
22" Std | 21.875" (556mm) | 20.875" (530mm) | 1" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe Plug | 75 Lb (34.2 Kg) | 145-9208- |
$4,165.63
|
|
||
20.875" (530mm) | 19.875" (505mm) | 1" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe Plug | 70 Lb (31.75 Kg) | 145-9198- |
$3,975.35
|
|
|||
20" Std | 19.875" (505mm) | 18.875" (479mm) | 1" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe Plug | 65 Lb (29.48 Kg) | 145-9188- |
$3,785.08
|
|
||
18.875" (479mm) | 17.875" (454mm) | 1" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 65 Lb (29.48 Kg) | 145-9178- |
$3,594.80
|
|
|||
18" Std | 17.875" (454mm) | 17.125" (435mm) | 1" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 63 Lb (28.58 Kg) | 145-9171- |
$3,404.53
|
|
||
17.125" (435mm) | 16.375" (416mm) | 1" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 63 Lb (28.58 Kg) | 145-9163- |
$3,261.55
|
|
|||
16.375" (416mm) | 15.625" (397mm) | 1" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 44 Lb (19.96 Kg) | 145-9156- |
$3,117.50
|
|
|||
16" Std | 15.625" (397mm) | 14.875" (378mm) | 1" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 44 Lb (19.96 Kg) | 145-9148- |
$2,976.68
|
|
||
14.125" (359mm) | 13.375" (340mm) | 1/2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 34 Lb (15.42 Kg) | 145-9133- |
$2,689.65
|
|
|||
14" Std | 13.375" (340mm) | 12.625" (321mm) | 1/2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 34 Lb (15.42 Kg) | 145-9126- |
$2,545.60
|
|
||
12.625" (321mm) | 11.875" (302mm) | 1/2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 31 Lb (14.06 Kg) | 145-9118- |
$2,404.78
|
|
|||
12" SCH 80 | 11.875" (302mm) | 11.125" (283mm) | 1/2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 31 Lb (14.06 Kg) | 145-9111- |
$2,261.80
|
|
||
11.125" (283mm) | 10.625" (270mm) | 1/2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 31 Lb (14.06 Kg) | 145-9106- |
$2,118.83
|
|
|||
10.625" (270mm) | 10.125" (257mm) | 1/2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 17 Lb (7.71 Kg) | 145-9101- |
$2,023.15
|
|
|||
10" Sch 40 | 10.125" (257mm) | 9.625" (244mm) | 1/2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 17 Lb (7.71 kg) | 145-9096- |
$1,927.48
|
|
||
10" Sch 80 | 9.625" (244mm) | 9.125" (232mm) | 1/2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 14 Lb (6.35 Kg) | 145-9091- |
$1,833.95
|
|
||
9.125" (232mm) | 8.625" (219mm) | 1/2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 12 Lb (5.44 Kg) | 145-9086- |
$1,738.28
|
|
|||
10" Sch 160 | 8.625" (219mm) | 8.125" (206mm) | 1/2" NPT | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 11 Lb (4.99 Kg) | 145-9081- |
$1,643.68
|
|
||
8" Sch 40 | 8.125" (206mm) | 7.625" (194mm) | 1/2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 10 Lb (4.54 Kg) | 145-9076- |
$1,548.00
|
|
||
8" Sch 80 | 7.625" (194mm) | 7.125" (181mm) | 1/2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 8 Lb (3.63 Kg) | 145-9071- |
$1,453.40
|
|
||
8" Sch 160 | 7.125" (181mm) | 6.75" (171mm) | 1/2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 7 Lb (3.18 Kg) | 145-9067- |
$1,357.73
|
|
||
6.75" (171mm) | 6.375" (162mm) | 1/2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 6 Lb (2.72 Kg) | 145-9063- |
$1,285.70
|
|
|||
6" Sch 40 | 6.375" (162mm) | 6" (152mm) | 1/2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 6 Lb (2.72 Kg) | 145-9060- |
$1,214.75
|
|
||
6" Sch 80 | 6" (152mm) | 5.625" (143mm) | 1/2" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 5 Lb (2.27 Kg) | 145-9056- |
$1,142.73
|
|
||
5.625" (143mm) | 5.25" (133mm) | 1/4" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 5 Lb (2.27 Kg) | 145-9052- |
$1,072.85
|
|
|||
5" Sch 40 or 6" Sch 160 | 5.25" (133mm) | 4.875" (124mm) | 1/4" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 4 Lb (1.81 Kg) | 145-9048- |
$1,000.83
|
|
||
5" Sch 80 | 4.875" (124mm) | 4.5" (114mm) | 1/4" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 4 Lb (1.81 Kg) | 145-9045- |
$929.88
|
|
||
5" Sch 160 | 4.5" (114mm) | 4.125" (105mm) | 1/4" F | 100 psi (6.89 bar) | 231 ft (70.41 m) | Internal to Pipe | 3 Lb (1.36 Kg) | 145-9041- |
$857.85
|
|
||
4" Sch 40, Sch 80 | 4.125" (105mm) | 3.75" (95mm) | 1/4" F | 200 psi (13.79 bar) | 462 ft (140.82 m) | Internal to Pipe | 3 Lb (1.36 Kg) | 145-9037- |
$786.90
|
|
||
3.75" (95mm) | 3.562" (90mm) | 3/8" M | 200 psi (13.79 bar) | 462 ft (140.82 m) | End of Pipe | 3 Lb (1.36 Kg) | 145-9035- |
$714.88
|
|
|||
3-1/2" Sch 40 | 3.562" (90mm) | 3.375" (86mm) | 3/8" M | 200 psi (13.79 bar) | 462 ft (140.82 m) | End of Pipe | 3 Lb (1.36 Kg) | 145-9033- |
$679.40
|
|
||
3-1/2" Sch 80 | 3.375" (86mm) | 3.188" (81mm) | 3/8" M | 200 psi (13.79 bar) | 462 ft (140.82 m) | End of Pipe | 3 Lb (1.36 Kg) | 145-9031- |
$642.85
|
|
||
3" Sch 40 | 3.188" (81mm) | 3" (76mm) | 3/8" M | 200 psi (13.79 bar) | 462 ft (140.82 m) | End of Pipe | 3 Lb (1.36 Kg) | 145-9030- |
$608.45
|
|
||
3" Sch 80 | 3" (76mm) | 2.812" (71mm) | 3/8" M | 200 psi (13.79 bar) | 462 ft (140.82 m) | End of Pipe | 2 Lb (0.91 Kg) | 145-9028- |
$571.90
|
|
||
2.812" (71mm) | 2.625" (67mm) | 3/8" M | 200 psi (13.79 bar) | 462 ft (140.82 m) | End of Pipe | 2 Lb (0.91 Kg) | 145-9026- |
$536.43
|
|
|||
2-1/2" Sch 40 | 2.625" (67mm) | 2.469" (63mm) | 3/8" M | 200 psi (13.79) | 462 ft (140.82 m) | End of Pipe | 2 Lb (0.91 Kg) | 145-9024- |
$627.53
|
|
||
2" Sch 40 & Sch 80 | 2.1" (53.34mm) | 1.9" (48.26mm) | 3/8" M | 200 psi (13.79) | 462 ft (140.82 m) | End of Pipe | 2 Lb (0.91 Kg) | 145-9020- |
$627.53
|
|
