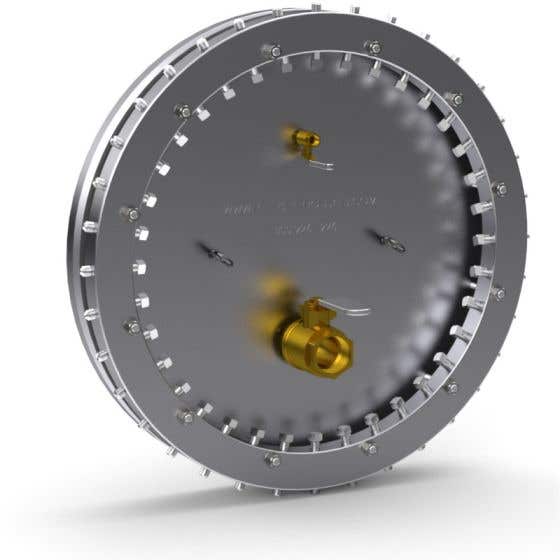

Pipe Plug, Mechanical, High Pres., 29.8"-30.8"dia, Mech Seal
More Information
By-Pass |
2" F |
Country of Origin |
USA |
Dia. Max |
30.875" (784mm) |
Dia. Min |
29.875" (759mm) |
Lngth, Overall |
Approx. 6.875" (174.63mm) |
Lngth, Seal |
1.5" O-Ring |
Material, Body |
Aluminum |
Material, Hardware |
Steel |
Material, Seal |
Nitrile |
Pipeline Max PSI |
100 psi (6.89 bar) |
Plug Slip Restraint Method |
Integral ID or OD set screw restraint |
Positioning Wheel Location |
Bottom |
Pressure Pipeline Max Head |
231 ft (70.41 m) |
Sage Subcategory Number |
W1459 |
Seal Expansion System |
Hex Nut |
Shipping Wt. |
146 Lb (66.23 Kg) |
Style |
Internal to Pipe Plug |
Temperature Max. Service F |
200 F (93.33 C) |
Torque Required, Anchor Setscrew |
92 ft-lbs |
Torque Required, Seal Expansion |
22 ft-lbs |
Vent Valve, Near Top of Plug, NPT |
3/8 |
