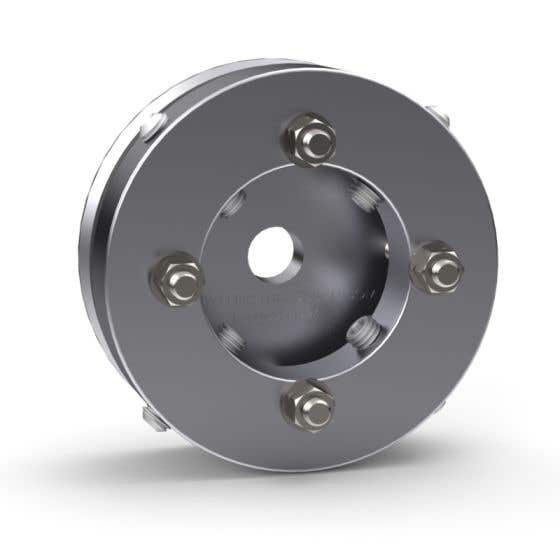

Pipe Plug, Mechanical, High Pres., 5.7"-6" Dia, Mech Seal
$1,220.00
| By-Pass | 1/2" F |
|---|---|
| Country of Origin | USA |
| Dia. Max | 6" (152mm) |
| Dia. Min | 5.625" (143mm) |
| Lngth, Seal | 3/4" O-Ring |
| Material, Body | Aluminum |
| Material, Hardware | Steel |
| Material, Seal | Nitrile |
| Nominal Pipe | 6" Sch 80 |
| Plug Restraint Method | Integral ID set screw restraint |
| Plug Restraint Set Screw Torque | 20 FT-LB |
| Plug Slip Restraint Method | Integral ID set screw restraint |
| Press. Pipeline Max | 100 PSI (6.89 BAR) |
| Seal Expansion System | Hex Nut |
| Seal Expansion Torque Ft/Lb | 20 FT-LB |
| Seal Part Number | 931-4130-05503 |
| Shipping Wt. | 5 Lb (2.27 Kg) |
| Style | Internal to Pipe |
| Temperature Max. Service F | 200 F (93.33 C) |
