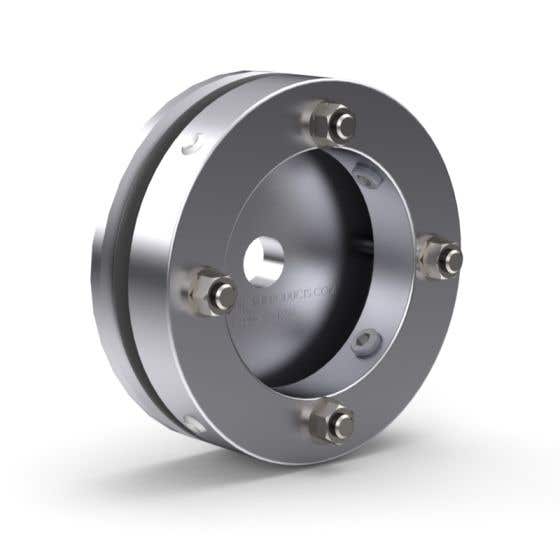

Pipe Plug, Mechanical, High Pres., 6"-6.3" Dia, Mech Seal
$1,214.75
1 In stock
SKU
145-9060-
By-Pass | 1/2" F |
---|---|
Country of Origin | USA |
Dia. Max | 6.375" (162mm) |
Dia. Min | 6" (152mm) |
Lngth, Overall | Approx. 2.83" (72mm) |
Lngth, Seal | 3/4" O-Ring |
Material, Body | Aluminum |
Material, Hardware | Steel |
Material, Seal | Nitrile |
Nominal Pipe | 6" Sch 40 |
Pipeline Max PSI | 100 psi (6.89 bar) |
Plug Restraint Method | Integral ID set screw restraint |
Plug Restraint Set Screw Torque | 40 FT-LB |
Pressure Pipeline Max Head | 231 ft (70.41 m) |
Sage Subcategory Number | W1459 |
Seal Expansion System | Hex Nut |
Seal Expansion Torque Ft/Lb | 20 FT-LB |
Shipping Wt. | 6 Lb (2.72 Kg) |
Style | Internal to Pipe |
Temperature Max. Service F | 200 F (93.33 C) |
