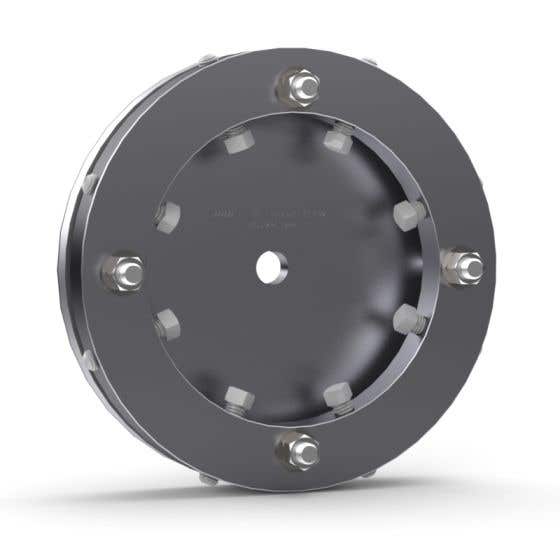

Pipe Plug, Mechanical, High Pres., 10.7"-11.1"dia, Mech Seal
More Information
By-Pass |
1/2" F |
Country of Origin |
USA |
Dia. Max |
11.125" (283mm) |
Dia. Min |
10.625" (270mm) |
Lngth, Overall |
Approx. 3.23" (82mm) |
Lngth, Seal |
1.0" O-Ring |
Material, Body |
Aluminum |
Material, Hardware |
Steel |
Material, Seal |
Nitrile |
Pipeline Max PSI |
100 psi (6.89 bar) |
Plug Slip Restraint Method |
Integral ID or OD set screw restraint |
Pressure Pipeline Max Head |
231 ft (70.41 m) |
Sage Subcategory Number |
W1459 |
Seal Expansion System |
Hex Nut |
Shipping Wt. |
31 Lb (14.06 Kg) |
Style |
Internal to Pipe |
Temperature Max. Service F |
200 F (93.33 C) |
Pipe Plug, Mechanical, High Pres., 10.7"-11.1"dia, Mech Seal
