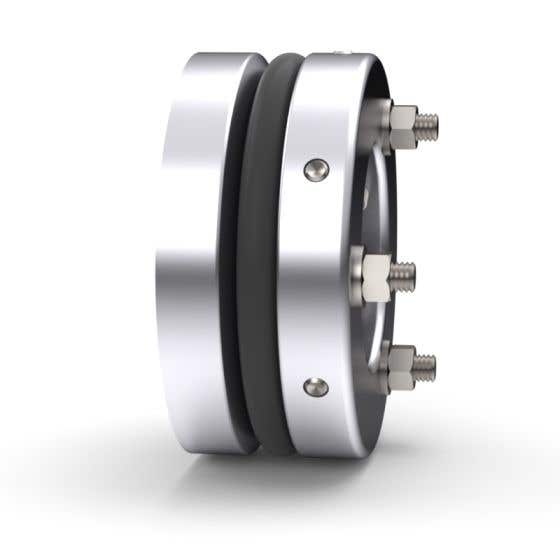

Pipe Plug, Mechanical, High Pres., 5.3"-5.6" Dia, Mech Seal
More Information
| By-Pass |
1/4" F |
| Country of Origin |
USA |
| Dia. Max |
5.625" (143mm) |
| Dia. Min |
5.25" (133mm) |
| Lngth, Overall |
Approx. 2.83" (72mm) |
| Lngth, Seal |
3/4" O-Ring |
| Material, Body |
Aluminum |
| Material, Hardware |
Steel |
| Material, Seal |
Nitrile |
| Pipeline Max PSI |
100 psi (6.89 bar) |
| Plug Slip Restraint Method |
Integral ID set screw restraint |
| Pressure Pipeline Max Head |
231 ft (70.41 m) |
| Sage Subcategory Number |
W1459 |
| Seal Expansion System |
Hex Nut |
| Shipping Wt. |
5 Lb (2.27 Kg) |
| Style |
Internal to Pipe |
| Temperature Max. Service F |
200 F (93.33 C) |
Pipe Plug, Mechanical, High Pres., 5.3"-5.6" Dia, Mech Seal
