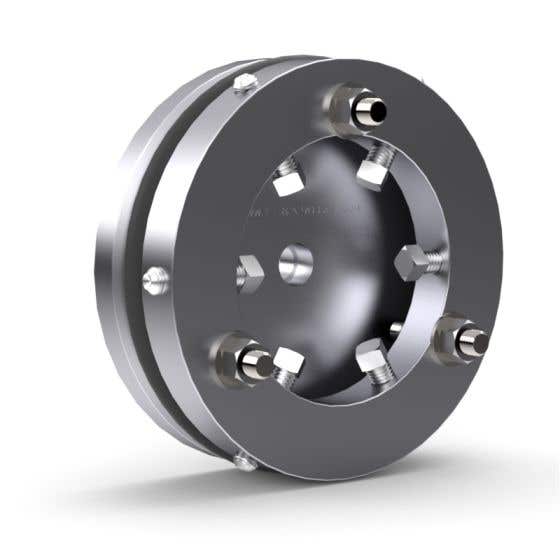

Pipe Plug, Mechanical, High Pres., 8.2"-8.6" Dia, Mech Seal
$1,760.00
| By-Pass | 1/2" NPT |
|---|---|
| Country of Origin | USA |
| Dia. Max | 8.625" (219mm) |
| Dia. Min | 8.125" (206mm) |
| Lngth, Overall | Approx. 3.23" (82mm) |
| Lngth, Seal | 3/4" O-Ring |
| Material, Body | Aluminum |
| Material, Hardware | Steel |
| Material, Seal | Nitrile |
| Nominal Pipe | 10" Sch 160 |
| Pipeline Max PSI | 100 psi (6.89 bar) |
| Plug Restraint Method | Integral ID set screw restraint |
| Plug Restraint Set Screw Torque | 50 FT-LB |
| Pressure Pipeline Max Head | 231 ft (70.41 m) |
| Sage Subcategory Number | W1459 |
| Seal Expansion System | Hex Nut |
| Seal Expansion Torque Ft/Lb | 25 FT-LB |
| Seal Part Number | 931-4130-08100 |
| Shipping Wt. | 11 Lb (4.99 Kg) |
| Style | Internal to Pipe |
| Temperature Max. Service F | 200 F (93.33 C) |
