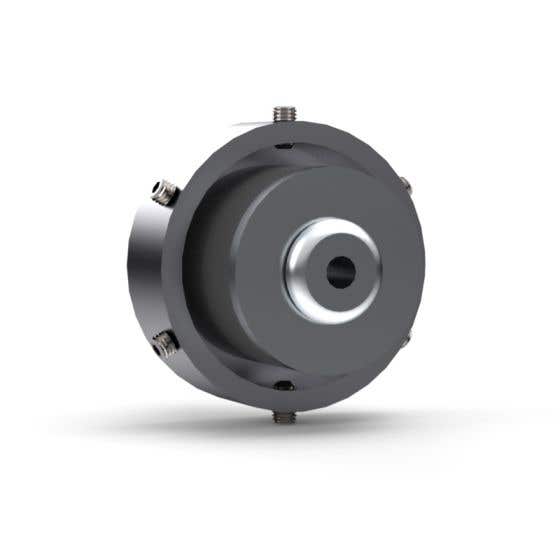

Pipe Plug, Mechanical, High Pres., 3.0"-3.1" Dia, Mech Seal
More Information
| By-Pass |
3/8" M |
| Country of Origin |
USA |
| Dia. Max |
3.188" (81mm) |
| Dia. Min |
3" (76mm) |
| Lngth, Overall |
Approx. 4.5" (114mm) |
| Lngth, Seal |
2" (51mm) |
| Material, Body |
Aluminum |
| Material, Hardware |
Steel |
| Material, Seal |
Nitrile |
| Nominal Pipe |
3" Sch 40 |
| Pipeline Max PSI |
200 psi (13.79 bar) |
| Plug Restraint Set Screw Torque |
20 FT-LB |
| Plug Slip Restraint Method |
OD set screw restraint |
| Pressure Pipeline Max Head |
462 ft (140.82 m) |
| Sage Subcategory Number |
W1459 |
| Seal Expansion System |
Hex Nut |
| Seal Expansion Torque Ft/Lb |
50 FT-LB |
| Shipping Wt. |
3 Lb (1.36 Kg) |
| Style |
End of Pipe |
| Temperature Max. Service F |
200 F (93.33 C) |
Pipe Plug, Mechanical, High Pres., 3.0"-3.1" Dia, Mech Seal
