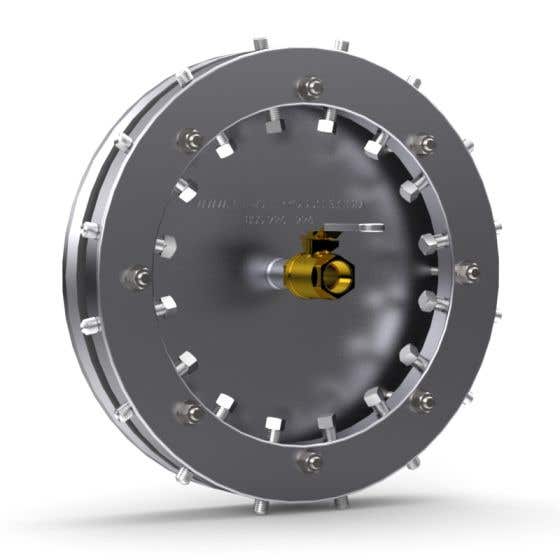

Pipe Plug, Mechanical, High Pres., 18.9"-19.8" Dia Mech Seal
More Information
| By-Pass |
1" F |
| Country of Origin |
USA |
| Dia. Max |
19.875" (505mm) |
| Dia. Min |
18.875" (479mm) |
| Lngth, Overall |
Approx. 4.83" (123mm) |
| Lngth, Seal |
1.5" O-Ring |
| Material, Body |
Aluminum |
| Material, Hardware |
Steel |
| Material, Seal |
Nitrile |
| Nominal Pipe |
20" Std |
| Pipeline Max PSI |
100 psi (6.89 bar) |
| Plug Restraint Set Screw Torque |
90 FT-LB |
| Plug Slip Restraint Method |
Integral ID or OD set screw restraint |
| Pressure Pipeline Max Head |
231 ft (70.41 m) |
| Sage Subcategory Number |
W1459 |
| Seal Expansion System |
Hex Nut |
| Seal Expansion Torque Ft/Lb |
22 FT-LB |
| Shipping Wt. |
65 Lb (29.48 Kg) |
| Style |
Internal to Pipe Plug |
| Temperature Max. Service F |
200 F (93.33 C) |
Pipe Plug, Mechanical, High Pres., 18.9"-19.8" Dia Mech Seal
