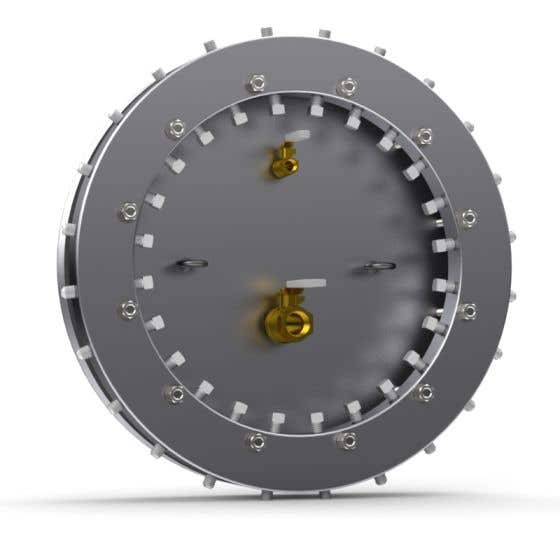

Pipe Plug, Mechanical, High Pres., 22.9"-23.8"dia, Mech Seal
$4,860.00
| By-Pass | 1" F |
|---|---|
| Country of Origin | USA |
| Dia. Max | 23.875" (606mm) |
| Dia. Min | 22.875" (581mm) |
| Lngth, Overall | Approx. 5.83" (148mm) |
| Lngth, Seal | 2.0" O-Ring |
| Material, Body | Aluminum |
| Material, Hardware | Steel |
| Material, Seal | Nitrile |
| Nominal Pipe | 24" Std |
| Pipeline Max PSI | 100 psi (6.89 bar) |
| Plug Restraint Set Screw Torque | 90 FT-LB |
| Plug Slip Restraint Method | Integral ID or OD set screw restraint |
| Pressure Pipeline Max Head | 231 ft (70.41 m) |
| Sage Subcategory Number | W1459 |
| Seal Expansion System | Hex Nut |
| Seal Expansion Torque Ft/Lb | 22 FT-LB |
| Seal Part Number | 931-4130-22801 |
| Shipping Wt. | 85 Lb (38.56 Kg) |
| Style | Internal to Pipe Plug |
| Temperature Max. Service F | 200 F (93.33 C) |
| Torque Required, Anchor Setscrew | 90 FT-LB |
