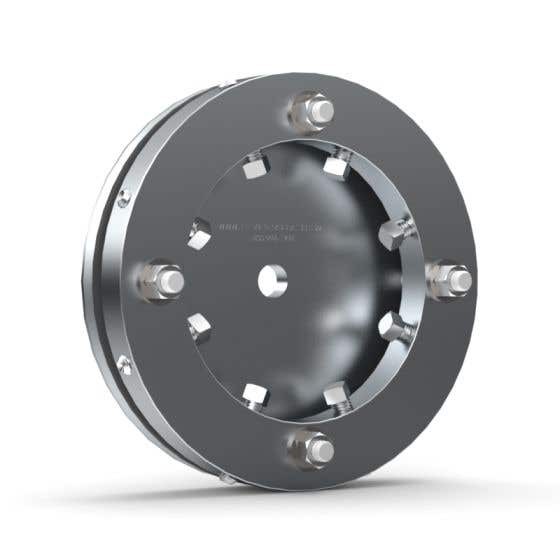

Pipe Plug, Mechanical, High Pres., 10.2"-10.6"dia, Mech Seal
More Information
| By-Pass |
1/2" F |
| Country of Origin |
USA |
| Dia. Max |
10.625" (270mm) |
| Dia. Min |
10.125" (257mm) |
| Lngth, Overall |
Approx. 3.23" (82mm) |
| Lngth, Seal |
1.0" O-Ring |
| Material, Body |
Aluminum |
| Material, Hardware |
Steel |
| Material, Seal |
Nitrile |
| Pipeline Max PSI |
100 psi (6.89 bar) |
| Plug Restraint Set Screw Torque |
55 FT/LB |
| Pressure Pipeline Max Head |
231 ft (70.41 m) |
| Sage Subcategory Number |
W1459 |
| Seal Expansion System |
Hex Nut |
| Seal Expansion Torque Ft/Lb |
20 FT/LB |
| Shipping Wt. |
17 Lb (7.71 Kg) |
| Style |
Internal to Pipe |
| Temperature Max. Service F |
200 F (93.33 C) |
Pipe Plug, Mechanical, High Pres., 10.2"-10.6"dia, Mech Seal
