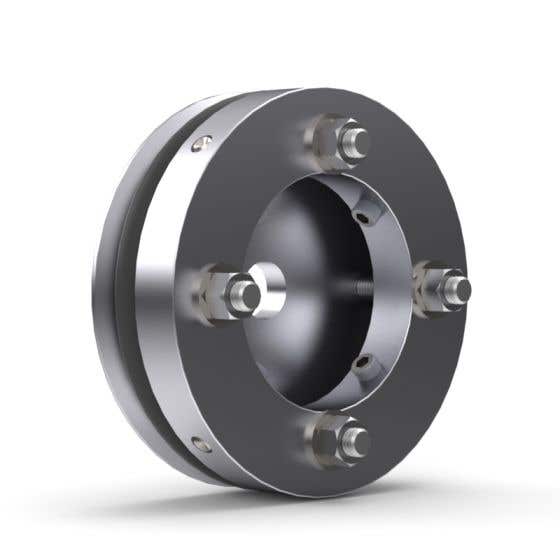

Pipe Plug, Mechanical High Pres., 7.125"-7.625"dia Mech Seal
More Information
| By-Pass |
1/2" F |
| Country of Origin |
USA |
| Dia. Max |
7.625" (194mm) |
| Dia. Min |
7.125" (181mm) |
| Lngth, Overall |
Approx. 3.23" (82mm) |
| Lngth, Seal |
3/4" O-Ring |
| Material, Body |
Aluminum |
| Material, Hardware |
Steel |
| Material, Seal |
Nitrile |
| Nominal Pipe |
8" Sch 80 |
| Pipeline Max PSI |
100 psi (6.89 bar) |
| Plug Restraint Method |
Integral ID set screw restraint |
| Plug Restraint Set Screw Torque |
45 FT-LB |
| Pressure Pipeline Max Head |
231 ft (70.41 m) |
| Sage Subcategory Number |
W1459 |
| Seal Expansion System |
Hex Nut |
| Seal Expansion Torque Ft/Lb |
20 FT-LB |
| Shipping Wt. |
8 Lb (3.63 Kg) |
| Style |
Internal to Pipe |
| Temperature Max. Service F |
200 F (93.33 C) |
Pipe Plug, Mechanical High Pres., 7.125"-7.625"dia Mech Seal
