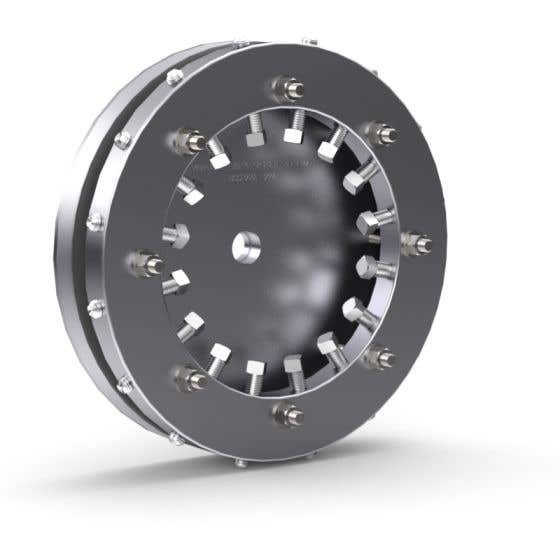

Pipe Plug, Mechanical, High Pres., 15.7"-16.3"dia, Mech Seal
$3,340.00
| By-Pass | 1" F |
|---|---|
| Country of Origin | USA |
| Dia. Max | 16.375" (416mm) |
| Dia. Min | 15.625" (397mm) |
| Lngth, Overall | Approx. 3.83" (97mm) |
| Lngth, Seal | 1.5" O-Ring |
| Material, Body | Aluminum |
| Material, Hardware | Steel |
| Material, Seal | Nitrile |
| Plug Restraint Set Screw Torque | 92 ft-lbs (125 Nm) |
| Plug Slip Restraint Method | Integral ID or OD set screw restraint |
| Press. Pipeline Max | 100 PSI (6.89 BAR) |
| Seal Expansion System | Hex Nut |
| Seal Expansion Torque Ft/Lb | 20 ft-lbs ( 27 Nm) |
| Seal Part Number | 931-4130-15600 |
| Shipping Wt. | 44 Lb (19.96 Kg) |
| Style | Internal to Pipe |
| Temperature Max. Service F | 200 F (93.33 C) |
| Torque Required, Anchor Setscrew | p2 ft/lbs |
