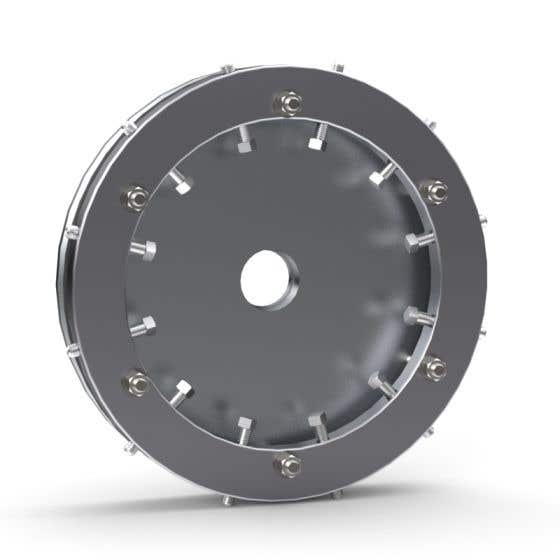

Pipe Plug, Mech High Pres 16.375"-17.125" Dia Mech Seal
$3,490.00
| By-Pass | 1" F |
|---|---|
| Country of Origin | USA |
| Dia. Max | 17.125" (435mm) |
| Dia. Min | 16.375" (416mm) |
| Lngth, Overall | Approx. 3.83" (97mm) |
| Lngth, Seal | 1.5" O-Ring |
| Material, Body | Aluminum |
| Material, Hardware | Steel |
| Material, Seal | Nitrile |
| Pipeline Max PSI | 100 psi (6.89 bar) |
| Plug Restraint Set Screw Torque | 45 FT-LB |
| Plug Slip Restraint Method | Integral ID or OD set screw restraint |
| Pressure Pipeline Max Head | 231 ft (70.41 m) |
| Sage Subcategory Number | W1459 |
| Seal Expansion System | Hex Nut |
| Seal Expansion Torque Ft/Lb | 20 FT-LB |
| Seal Part Number | 931-4130-16300 |
| Shipping Wt. | 63 Lb (28.58 Kg) |
| Style | Internal to Pipe |
| Temperature Max. Service F | 200 F (93.33 C) |
