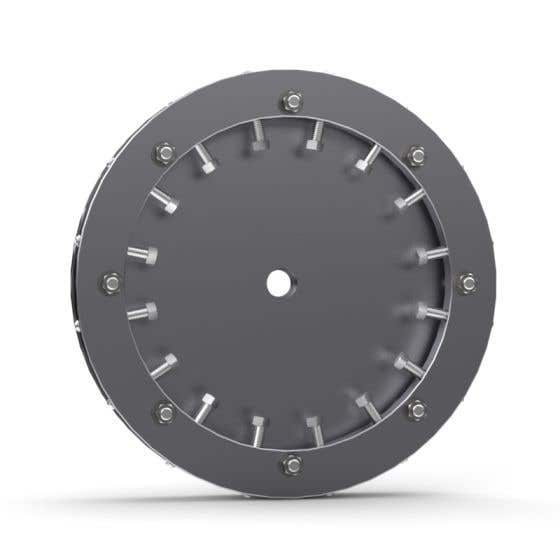

Pipe Plug, Mechanical, High Pres., 17.9"-18.8"dia, Mech Seal
$3,850.00
| By-Pass | 1" F |
|---|---|
| Country of Origin | USA |
| Dia. Max | 18.875" (479mm) |
| Dia. Min | 17.875" (454mm) |
| Lngth, Overall | Approx. 3.83" (97mm) |
| Lngth, Seal | 1" O-Ring |
| Material, Body | Aluminum |
| Material, Hardware | Steel |
| Material, Seal | Nitrile |
| Pipeline Max PSI | 100 psi (6.89 bar) |
| Plug Restraint Set Screw Torque | 55 FT-LB |
| Plug Slip Restraint Method | Integral ID or OD set screw restraint |
| Pressure Pipeline Max Head | 231 ft (70.41 m) |
| Sage Subcategory Number | W1459 |
| Seal Expansion System | Hex Nut |
| Seal Expansion Torque Ft/Lb | 20 FT-LB |
| Seal Part Number | 931-4130-18001 |
| Shipping Wt. | 65 Lb (29.48 Kg) |
| Style | Internal to Pipe |
| Temperature Max. Service F | 200 F (93.33 C) |
