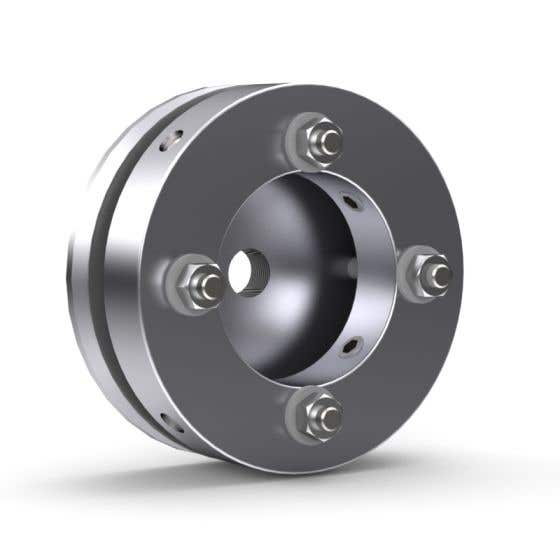

Pipe Plug, Mechanical, High Pres., 4.2"-4.5" Dia, Mech Seal
$918.00
| By-Pass | 1/4" F |
|---|---|
| Country of Origin | USA |
| Dia. Max | 4.5" (114mm) |
| Dia. Min | 4.125" (105mm) |
| Lngth, Overall | Approx. 2.16" (55mm) |
| Lngth, Seal | 1/2" O-Ring |
| Material, Body | Aluminum |
| Material, Hardware | Steel |
| Material, Seal | Nitrile |
| Nominal Pipe | 5" Sch 160 |
| Nominal Size | 5" Sch 160 |
| Pipeline Max PSI | 100 psi (6.89 bar) |
| Plug Restraint Set Screw Torque | 20 FT-LB |
| Plug Slip Restraint Method | Integral ID set screw restraint |
| Pressure Pipeline Max Head | 231 ft (70.41 m) |
| Sage Subcategory Number | W1459 |
| Seal Expansion System | Hex Nut |
| Seal Expansion Torque Ft/Lb | 10 FT-LB |
| Seal Part Number | 931-4130-04100 |
| Shipping Wt. | 3 Lb (1.36 Kg) |
| Style | Internal to Pipe |
| Temperature Max. Service F | 200 F (93.33 C) |
