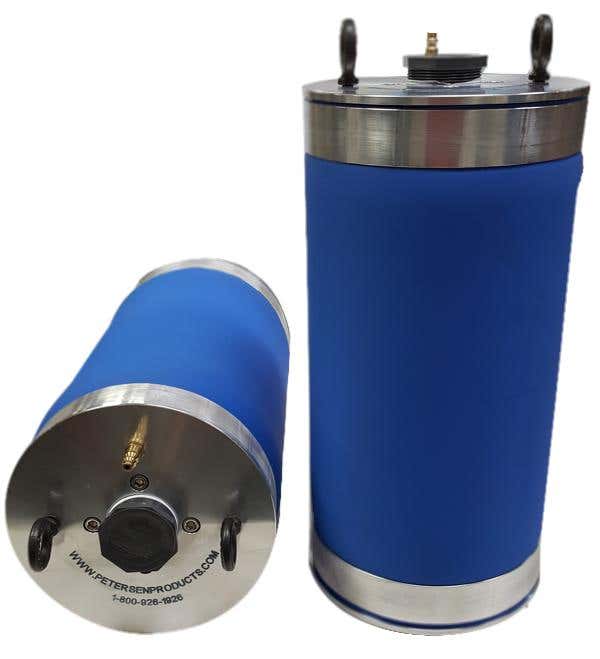

Pipe Plug, Rigid Core, Bore Hole Plugs with Bypass 126 Series
- Safety and environmental risks reduced with these heavy duty bore hole pipe plugs
- May be customized for most size, pressure, temperature, and chemical requirements
- Polyurethane Inflatable Seal
- Other materials available for chemical and temperature requirements
- These synthetic materials do not age like natural rubber plugs
- Higher pressure and more robust than typical inflatable plugsPorts optional on both ends allows connecting two or more series connection
- Bypass Through the center allows pressurizing or monitoring pipeline
- Much Longer pipe contact length than most other plugs
- Alternative uses for the 126 series includes expanding elastic materials for thermal forming process, shrink fit assembly and even vulcanizing
- Anchor points both ends
Pipe Plug, Rigid Core, Bypass 126 Series
Image | Dia. Max | Dia. Deflated | By-Pass | Infl. Press. Required | Pipeline Pressure Max Head | Port, Inflation | Length Deflated | Shipping Wt. | Item Number | Price | Qty | Action |
---|---|---|---|---|---|---|---|---|---|---|---|---|
12" (305mm) | 11" (279mm) | 2 F | 200 psi (13.8 bar) | 100 psi (6.89 bar) Air, 150 psi (10.34 bar) Water | 1/4" NPT One End | 22" (559mm) | 110 Lbs | 126-112- |
$2,844.00
|
|
||
10" (254mm) | 9" (229mm) | 2 F | 200 psi (13.8 bar) | 100 psi (6.89 bar) Air, 150 psi (10.34 bar) Water | 1/4" NPT One End | 18" (457mm) | 38 Lb (17.24 Kg) | 126-110- |
$2,182.00
|
|
||
8" (203mm) | 7" (178mm) | 2 F | 200 psi (13.8 bar) | 100 psi (6.89 bar) Air, 150 psi (10.34 bar) Water | 1/4" NPT One End | 16" (406mm) | 26 Lb (11.79 Kg) | 126-108- |
$1,942.00
|
|
||
6" (152mm) | 5.5" (140mm) | 1 F | 200 psi (13.8 bar) | 100 psi (6.89 bar) Air, 150 psi (10.34 bar) Water | 1/4" NPT One End | 12" (305mm) | 14 Lb (6.35 Kg) | 126-106- |
$1,482.00
|
|
||
4" (102mm) | 3.5" (89mm) | 1/2 F | 200 psi (13.8 bar) | 100 psi (6.89 bar) Air, 150 psi (10.34 bar) Water | 1/4" NPT One End | 12" (305mm) | 6 Lb (2.72 Kg) | 126-104- |
$892.00
|
|
||
3" (76mm) | 2.5" (64mm) | 1/4 F | 200 psi (13.8 bar) | 100 psi (6.89 bar) Air, 150 psi (10.34 bar) Water | 1/4" NPT One End | 10" (254mm) | 4 Lb (1.81 Kg) | 126-103- |
$840.00
|
|
||
2" (51mm) | 1.75" (44mm) | 1/8 F | 200 psi (13.8 bar) | 100 psi (6.89 bar) Air, 150 psi (10.34 bar) Water | 1/4" NPTOne End | 8" (203mm) | 3 Lb (1.36 Kg) | 126-102- |
$784.00
|
|
