Pipe Plug, Bypass 130-2 Series
These round pipe plugs provide for testing and/or monitoring of piping systems. They are ideal for installation and repair of residential or commercial piping systems.
Inflation for smaller diameter plugs is Shrader type tire valve and larger diameter plugs inflate through a ¼” npt tire valve allowing replacemet with a quick disconnect fittings. These flexible Muni Ball bypass test plugs are bendable to 90˚.
To Convert the Muni Ball into a Remote Placement Plug, please refer to the Accessories Table Below

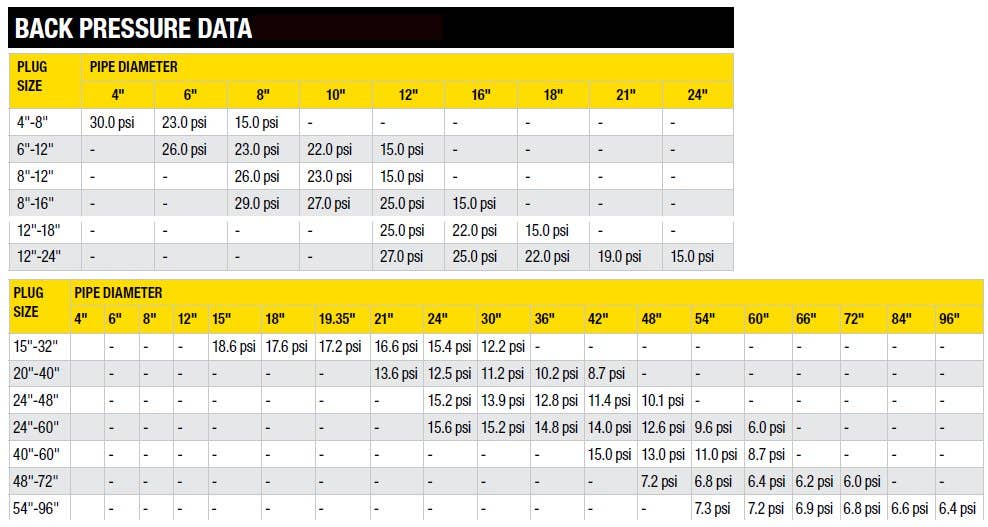

Click to expand back pressure chart
Pipe Plug, Test, Muni Bypass 130-2 Series
| Dia. Max | Dia. Deflated | By-Pass | Infl. Press. Required | Press. Pipeline Max | Length Deflated | Port, Inflation | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 96.25" (2445mm) | 43" (1092mm) | 8" Flange One End | 11 psi (0.75 bar) | ** See Second Back Pressure Chart Below | 132" (3353mm) | 1/2" Male QD To 1/2" MNPT (2) | 506 Lbs (229.52 Kg) | 130-296-8 |
$17,100.00
|
|
|
| 96.25" (2445mm) | 43" (1092mm) | 6" MNPT One End | 11 psi (0.75 bar) | ** See Second Back Pressure Chart Below | 132" (3353mm) | 1/2" Male QD To 1/2" MNPT (2) | 480 Lb (217.73 Kg) | 130-296-6 |
$16,800.00
|
|
|
| 96.25" (2445mm) | 43" (1092mm) | 4" MNPT One End | 11 psi (0.75 bar) | ** See Second Back Pressure Chart Below | 128" (3251mm) | 1/2" Male QD To 1/2" MNPT (2) | 500 Lb (226.80 Kg) | 130-296-4 |
$16,600.00
|
|
|
| 72.25" (1835mm) | 43" (1092mm) | 8" Flange One End | 12 psi (0.82 bar) | ** See Second Back Pressure Chart Below | 93" (2362mm) | 1/2" Male QD To 1/2" MNPT (2) | 448 Lbs (203.21 Kg) | 130-272-8 |
$12,900.00
|
|
|
| 72.25" (1835mm) | 43" (1092mm) | 6" MNPT One End | 12 psi (0.82 bar) | ** See Second Back Pressure Chart Below | 93" (2362mm) | 1/2" Male QD To 1/2" MNPT (2) | 418 Lbs (189.60 Kg) | 130-272-6 |
$12,600.00
|
|
|
| 72.25" (1835mm) | 43" (1092mm) | 4" MNPT One End | 12 psi (0.82 bar) | ** See Second Back Pressure Chart Below | 93" (2362mm) | 1/2" Male QD To 1/2" MNPT (2) | 310 Lbs (140.62 Kg) | 130-272-4 |
$11,900.00
|
|
|
| 60.5" (1537mm) | 20" (508mm) | 6" MNPT One End | 22 psi (1.51 bar) | ** See Second Back Pressure Chart Below | 88" (2235mm) | 1/4" Male QD To 1/4" MNPT (1) & 1/2" Male QD To 1/2" MNPT (1) | 164 Lbs (74.39 Kg) | 130-260-6 |
$10,000.00
|
|
|
| 60.5" (1537mm) | 20" (508mm) | 4" MNPT One End | 22 psi (1.51 bar) | ** See Second Back Pressure Chart Below | 88" (2235mm) | 1/4" Male QD to 1/4" MNPT (1) & 1/2" Male QD to 1/2" MNPT (1) | 153 Lbs (69.40 Kg) | 130-260-4MM |
$6,500.00
|
|
|
| 50" (1270mm) | 20" (508mm) | 6" MNPT One End | 22 psi (1.51 bar) | ** See Second Back Pressure Chart Below | 68" (1727mm) | 1/2" Male QD to 1/2" MNPT | 153 Lbs (69.40 Kg) | 130-248-6 |
$5,500.00
|
|
|
| 50" (1270mm) | 20" (508mm) | 4" MNPT One End | 22 psi (1.51 bar) | ** See Second Back Pressure Chart Below | 68" (1727mm) | 1/4" Male QD To 1/4" MNPT (1) & 1/2" Male QD To 1/2" MNPT (1) | 150 Lbs (68.04 Kg) | 130-248-4 |
$5,200.00
|
|
|
| 40" (1016mm) | 18.5" (470mm) | 6" MNPT One End | 22 psi (1.51 bar) | ** See Second Back Pressure Chart Below | 46.25" (1175mm) | 1/4" Male QD To 1/4" MNPT (1) & 1/2" Male QD To 1/2" MNPT (1) | 106 lbs (48.08 Kg) | 130-240-6 |
$3,730.00
|
|
|
| 40" (1016mm) | 18.5" (470mm) | 4" MNPT One End | 22 psi (1.51 bar) | ** See Second Back Pressure Chart Below | 46.25" (1175mm) | 1/4" Male QD To 1/4" MNPT (1) & 1/2" Male QD To 1/2" MNPT (1) | 95 Lbs (43.09 Kg) | 130-240-4 |
$3,600.00
|
|
|
| 32" (813mm) | 25.8" (655mm) | 2" MNPT One End | 200 psi (13.79 bar) | 16" (406.4mm) | 1/2" Male QD To 1/2" MNPT (1) & 1/4" Male QD To 1/4" MNPT (1) | 371 Lbs (168.28 Kg) | 130-232-2HP |
$6,600.00
|
|
||
| 32" (813mm) | 14.3" (363mm) | 2" MNPT One End | 25 psi (1.72 bar) | ** See Second Back Pressure Chart Below | 48" (1219mm) | 1/4" Male QD To 1/4" MNPT (1) & 1/2" Male QD To 1/2" MNPT (1) | 73 lbs (33.11 Kg) | 130-232-20 |
$2,900.00
|
|
|
| 32" (813mm) | 14.3" (363mm) | 4" MNPT One End | 25 psi (1.72 bar) | ** See Second Back Pressure Chart Below | 48" (1219mm) | 1/4" Male QD To 1/4" MNPT (1) & 1/2" Male QD To 1/2" MNPT (1) | 80 Lbs (36.29 Kg) | 130-230-4 |
$2,980.00
|
|
|
| 26" (660mm) | 19.2" (488mm) | 2" MNPT One End | 200 psi (13.79 bar) | 150 psi (10.34 bar) | 16" (406mm) | 1/2" Male QD To 1/2" MNPT (1) & 1/4" Male QD to 1/4" MNPT (1) | 146 Lbs (66.23 Kg) | 130-226-2HP |
$5,400.00
|
|
|
| 24.25" (616mm) | 11" (279mm) | 3" MNPT One End | 45 psi (3.10 bar) | ** See First Back Pressure Chart Below | 37" (940mm) | 1/4" Male QD To 1/4" MNPT | 36 Lbs (16.33 Kg) | 130-224-2 |
$1,500.00
|
|
|
| 20.2" (513mm) | 15.2" (386mm) | 2" MNPT One End | 200 psi (13.79 bar) | 150 psi (10.34 bar) | 24" (610mm) | 1/4" Male QD to 1/4" MNPT (1) and 1/2" Male QD to 1/2" MNPT (1) | 92 Lbs (41.73 Kg) | 130-220-2HP |
$4,170.00
|
|
|
| 18.25" (464mm) | 10.75" (273mm) | 3" MNPT One End | 45 psi (3.10 bar) | ** See First Back Pressure Chart Below | 25" (635mm) | 1/4" Male QD To 1/4" MNPT | 29 Lb (13.15 Kg) | 130-218-4 |
$1,380.00
|
|
|
| 16" (406mm) | 13.75" (349mm) | 3" FNPT One End | 35 psi (2.41 bar) | 13 psi (0.9 bar)/30' (9.1 m) | 19.75" (502mm) | 1/4" Male QD To 1/4" MNPT | 33 Lbs (14.97 Kg) | 130-216-3 |
$715.00
|
|
|
| 16.2" (411mm) | 11.9" (302mm) | 2" MNPT One End | 200 psi (13.79 bar) | 150 psi (10.34 bar) | 24" (610mm) | 1/4" Male QD To 1/4" MNPT (2) | 52 Lbs (23.59 Kg) | 130-216-2HP |
$3,460.00
|
|
|
| 16.25" (413mm) | 7.5" (191mm) | 2" MNPT One End | 45 psi (3.10 bar) | ** See First Back Pressure Chart Below | 28" (711mm) | 1/4" Male QD To 1/4" MNPT | 16 Lbs (7.26 Kg) | 130-216-2 |
$907.00
|
|
|
| 12.25" (311mm) | 10.25" (260mm) | 3" FNPT One End | 35 psi (2.41 bar) | 13 psi (0.9 bar)/30' (9.1m) | 13.75" (349mm) | 1/4" Male QD To 1/4" MNPT | 13 Lbs (5.90 Kg) | 130-212-3 |
$453.00
|
|
|
| 12.25" (311mm) | 7" (178mm) | 2" MNPT One End | 45 psi (3.10 bar) | ** See First Back Pressure Chart Below | 18.5" (470mm) | 1/4" Male QD To 1/4" MNPT | 13 Lbs (5.90 Kg) | 130-212-2 |
$697.00
|
|
|
| 12.25" (311mm) | 5.5" (140mm) | 1" MNPT One End | 45 psi (3.10 bar) | ** See First Back Pressure Chart Below | 25" (635mm) | 1/8" Male QD To 1/8" MNPT | 10 Lbs (4.54 Kg) | 130-212-1 |
$636.00
|
|
|
| 12.2" (310mm) | 7.7" (196mm) | 1-1/2" MNPT One End | 200 psi (13.79 bar) | 150 psi (10.34 bar) | 24" (610mm) | 1/4" Male QD To 1/4" MNPT (2) | 24 Lbs (10.89 Kg) | 130-212-07HP |
$2,500.00
|
|
|
| 10.25" (260mm) | 8.75" (222mm) | 3" FNPT One End | 35 psi (2.41 bar) | 13 psi (0.9 bar)/30' (9.1m) | 11.75" (298mm) | 1/4" Male QD To 1/4" MNPT | 9 Lbs (4.08 Kg) | 130-210-3 |
$322.00
|
|
|
| 10.25" (260mm) | 6.75" (171mm) | 2" FNPT One End | 30 psi (2.06 bar) | 17 psi (1.2 bar)/40' (12m) | 14.5" (368mm) | 1/4" Male QD To 1/4" MNPT | 9 Lbs (4.08 Kg) | 130-210-2 |
$408.00
|
|
|
| 8.25" (210mm) | 6.75" (171mm) | 3" FNPT One End | 35 psi (2.41 bar) | 13 psi (0.9 bar)/30' (9.1m) | 10" (254mm) | 1/4" Male QD To 1/4" MNPT | 5 Lb (2.27 Kg) | 130-208-3 |
$244.00
|
|
|
| 8.35" (212mm) | 5" (127mm) | 1-1/2" FNPT One End | 35 psi (2.41 bar) | 17 psi (1.2 bar)/40' (12 m) | 13" (330mm) | 1/4" MALE QD To 1/4" MNPT | 6 Lbs (2.72 Kg) | 130-208-15 |
$310.00
|
|
|
| 8.25" (210mm) | 3.95" (100mm) | 1/2" MNPT One End | 45 psi (3.10 bar) | ** See First Back Pressure Chart Below | 23" (584mm) | 1/4" Male QD To 1/8" MNPT | 5 Lbs (2.27 Kg) | 130-208-07 |
$580.00
|
|
|
| 8.2" (208mm) | 3.8" (97mm) | 3/8" MNPT One End | 200 psi (13.79 bar) | 150 psi (10.34 bar) | 16" (406mm) | 1/4"Male QD to 1/8" MNPT (2) | 8 Lbs (3.63 Kg) | 130-208-03HP |
$2,030.00
|
|
|
| 6.25" (159mm) | 4.5" (114mm) | 1-1/2" FNPT One End | 35 psi (2.41 bar) | 13 psi (0.9 bar)/30' (9.1m) | 7" (178mm) | 1/8" Male QD to 1/8" MNPT | 2 Lbs (0.91 Kg) | 130-206-15 |
$200.00
|
|
|
| 6.25" (159mm) | 3.46" (88mm) | 3/4" FNPT One End | 35 psi (2.41 bar) | 17 psi (1.2 br)/40' (12 m) | 10.75" (273mm) | 1/8" NPT to Tire Valve Syle Inflation | 3 Lbs (1.36 Kg) | 130-206-07 |
$223.00
|
|
|
| 4.25" (108mm) | 3.13" (80mm) | 3/4" FNPT One End | 40 psi (2.75 bar) | 22 psi (1.5 bar)/50' (15 m) | 8" (203mm) | Tire Valve, Molded | 2 Lbs (0.91 Kg) | 130-204-07 |
$169.00
|
|
|
| 3.25" (83mm) | 2.5" (64mm) | 1/2" FNPT One End | 40 psi (2.75 bar) | 22 psi (1.5 bar)/50' (15 m) | 8" (203mm) | Tire Valve, Molded | 2 Lbs (0.91 Kg) | 130-203-07 |
$170.00
|
|
|
| 2.25" (57mm) | 1.75" (44mm) | 1/8" FNPT One End | 40 psi (2.75 bar) | 22 psi (1.5 bar)/50' (15 m) | 6" (152mm) | Tire Valve, Molded | 1 Lb (0.45 Kg) | 130-202-01 |
$157.00
|
|
|
| 1.88" (48mm) | 1.4" (36mm) | 1/4" MNPT One End | 40 psi (2.75 bar) | 22 psi (1.5 bar) /50' (15 m) | 3.8" (97mm) | Tire Valve, Molded | 1 Lb (0.45 Kg) | 130-2015-01 |
$146.00
|
|
Rupture Disc For Inflatable Rubber Plug
| Image | Description | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|
|
924-1302-7296 |
$194.00
|
|
|||
|
924-1302-4860 |
$220.00
|
|
|||
|
924-1302-3060 |
$220.00
|
|

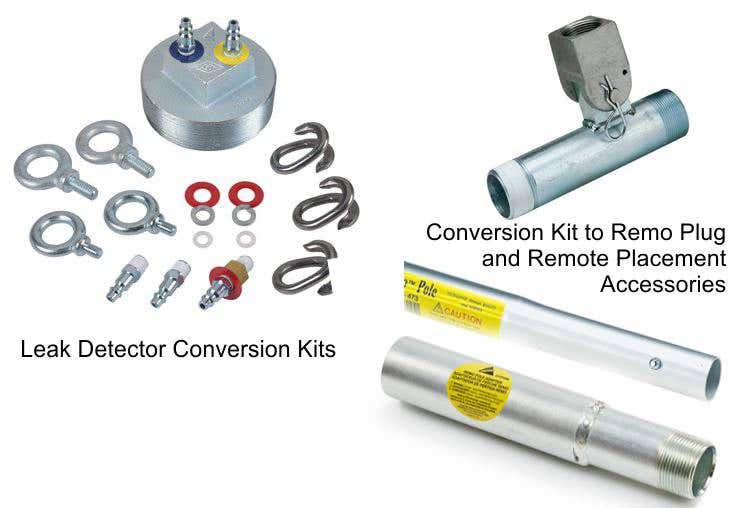

Pipe Plug, Remote Poles Adapters & Bushings
| Image | Description | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|
|
6' Remote Placement Pole | 4 Lb (1.81 Kg) | 924-1307-72 |
$54.80
|
|
|
|
4"-2" Remote Reducer Bushing | 2 Lb (0.91 Kg) | 924-1307-0402 |
$47.70
|
|
|
|
3"-2" (76-51mm) Remote Reducer Bushing | 2 Lb (0.91 Kg) | 924-1307-0302 |
$46.50
|
|
|
|
2" - 1-1/2" (51-38mm) Remote Reducer Bushing | 1 Lb (0.45 Kg) | 924-1307-02015 |
$29.90
|
|
|
|
2" Remote Mini-Ball Adapter | 4 Lb (1.81 Kg) | 924-1307-02 |
$187.00
|
|
|
|
1-1/2" (38mm) Remote Mini-Ball Adapter | 4 Lb (1.81 Kg) | 924-1307-015 |
$179.00
|
|
|
|
Remo® Pole Adapter (1-1/4" MNPT) to extend 6' (1829 mm) pole | 1 Lb (0.45 Kg) | 924-1307-0125 |
$109.00
|
|
|
|
1"-1-1/2" (25-38mm) Remote Placement Adapting Bushing | 1 Lb (0.45 Kg) | 924-1307-01015 |
$12.00
|
|
|
|
3/4"-1-1/2" (19-38mm) Remote Placement Adapters-Include 3/4" MNPT Nipple and 3/4" F - 1-1/2" F NPT Bushing | 1 Lb (0.45 Kg) | 924-1307-007515 |
$15.00
|
|
