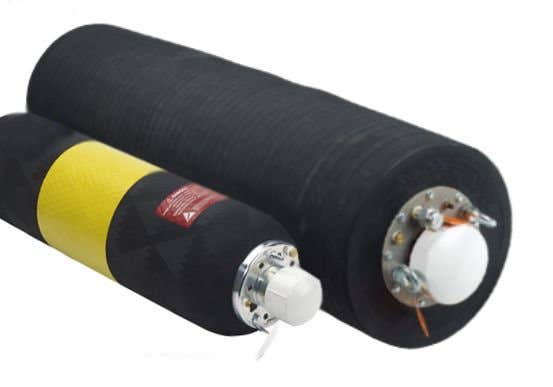

Pipe Plug, Test, Muni Bypass 130-2 Series

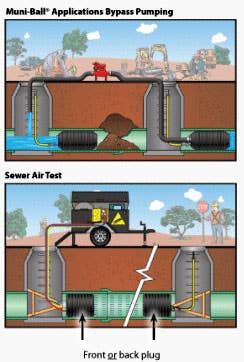

These round pipe plugs provide for testing and/or monitoring of piping systems. They are ideal for installation and repair of residential or commercial piping systems.
Inflation for smaller diameter plugs is Shrader type tire valve and larger diameter plugs inflate through a ¼” npt tire valve allowing replacemet with a quick disconnect fittings. These flexible Muni Ball bypass test plugs are bendable to 90°.

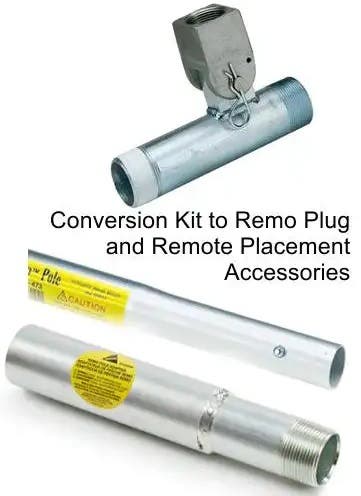

To Convert the Muni Ball into a Remote Placement Plug, please refer to the Accessories below.

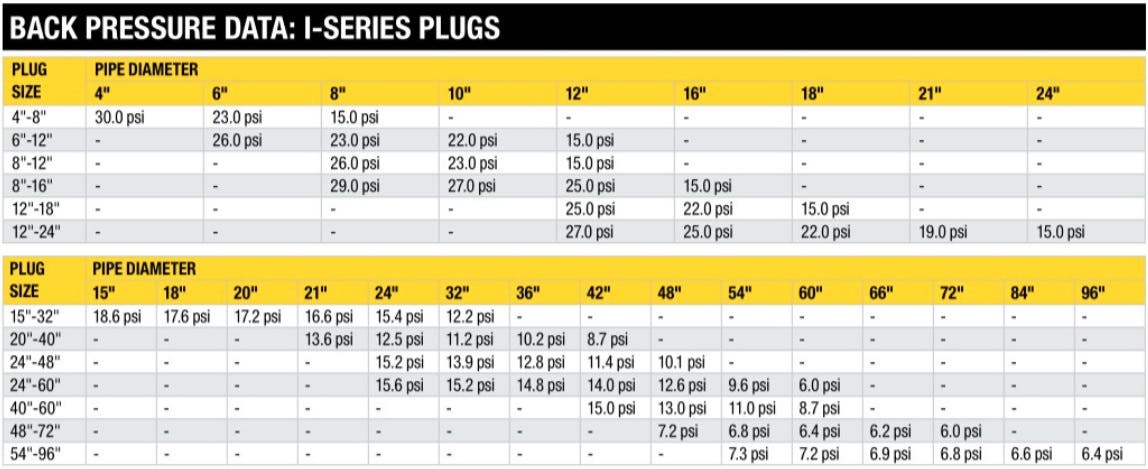

Back Pressure Chart
Rupture Disc
| Image | Dia. Max | Dia. Deflated | By-Pass | Infl. Press. Required | Press. Pipeline Max | Length Deflated | Port, Inflation | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
96.25" (2450mm) | 43" (1092mm) | 8" Flange One End | 11 psi (0.75 bar) | ** See Second Back Pressure Chart | 132" (3353mm) | 1/2" Male QD To 1/2" MNPT (2) | 506 Lbs (230 Kg) | 130-296-8 |
$19,700.00
|
||
|
96.25" (2450mm) | 43" (1092mm) | 6" MNPT One End | 11 psi (0.75 bar) | ** See Second Back Pressure Chart | 132" (3353mm) | 1/2" Male QD To 1/2" MNPT (2) | 480 Lb (218.2 Kg) | 130-296-6 |
$19,300.00
|
||
|
96.25" (2450mm) | 43" (1092mm) | 4" MNPT One End | 11 psi (0.75 bar) | ** See Second Back Pressure Chart | 128" (3200mm) | 1/2" Male QD To 1/2" MNPT (2) | 500 Lb (226.7 Kg) | 130-296-4 |
$19,100.00
|
||
|
72.25" (1835mm) | 43" (1092mm) | 8" Flange One End | 12 psi (0.83 bar) | ** See Second Back Pressure Chart | 93" (2362mm) | 1/2" Male QD To 1/2" MNPT (2) | 448 Lbs (203.2 Kg) | 130-272-8 |
$14,900.00
|
||
|
72.25" (1835mm) | 43" (1092mm) | 6" MNPT One End | 12 psi (0.83 bar) | ** See Second Back Pressure Chart | 93" (2632mm) | 1/2" Male QD To 1/2" MNPT (2) | 418 Lbs (190 Kg) | 130-272-6 |
$14,500.00
|
||
|
72.25" (1835mm) | 43" (1092mm) | 4" MNPT One End | 12 psi (0.83 bar) | ** See Second Back Pressure Chart | 93" (2632mm) | 1/2" Male QD To 1/2" MNPT (2) | 310 Lbs (141 Kg) | 130-272-4 |
$13,700.00
|
||
|
60.5" (1537mm) | 20" (485mm) | 6" MNPT One End | 22 psi (1.5 bar) | ** See Second Back Pressure Chart | 88" (2235mm) | 1/4" Male QD To 1/4" MNPT (1) & 1/2" Male QD To 1/2" MNPT (1) | 164 Lbs (74.5 Kg) | 130-260-6 |
$11,500.00
|
||
|
60.5" (1537mm) | 20.5" (521mm) | 4" MNPT One End | 25 psi (1.7 bar) | ** See Second Back Pressure Chart | 101" (2565mm) | 1/4" Male QD to 1/4" MNPT (1) & 1/2" Male QD to 1/2" MNPT (1) | 154 Lbs (69.85 Kg) | 130-260-4MM |
$11,000.00
|
||
|
50" (1270mm) | 20" (485mm) | 6" MNPT One End | 25 psi (1.7 bar) | ** See Second Back Pressure Chart | 84.5" (2146.3mm) | 1/2" Male QD to 1/2" MNPT | 135 Lbs (61.2 Kg) | 130-248-6 |
$6,300.00
|
||
|
50" (1270mm) | 20" (485mm) | 4" MNPT One End | 25 psi (1.72 bar) | ** See Second Back Pressure Chart | 84.5" (2146.3mm) | 1/4" Male QD To 1/4" MNPT (1) & 1/2" Male QD To 1/2" MNPT (1) | 125 Lbs (56.70 Kg) | 130-248-4 |
$6,000.00
|
||
|
40" (1016mm) | 18.5" (470mm) | 6" MNPT One End | 22 psi (1.51 bar) | ** See Second Back Pressure Chart | 46.25" (1175mm) | 1/4" Male QD To 1/4" MNPT (1) & 1/2" Male QD To 1/2" MNPT (1) | 106 lbs (48.08 Kg) | 130-240-6 |
$3,730.00
|
||
|
40" (1000mm) | 19.5" (495.3mm) | 4" MNPT One End | 25 psi (1.72 bar) | ** See Second Back Pressure Chart | 70" (1778mm) | 1/4" Male QD To 1/4" MNPT (1) & 1/2" Male QD To 1/2" MNPT (1) | 120 Lbs (54.4 Kg) | 130-240-4 |
$4,140.00
|
||
|
32" (812.8mm) | 25.8" (655mm) | 2" MNPT One End | 200 psi (13.79 bar) | 24" (609.6mm) | 1/2" Male QD To 1/2" MNPT (1) & 1/4" Male QD To 1/4" MNPT (1) | 371 Lbs (168.28 Kg) | 130-232-2HP |
$7,500.00
|
|||
|
32" (800mm) | 14.3" (363mm) | 2" MNPT One End | 25 psi (1.72 bar) | ** See Second Back Pressure Chart | 63" (1600mm) | 1/4" Male QD To 1/4" MNPT (1) & 1/2" Male QD To 1/2" MNPT (1) | 80 lbs (36.3 Kg) | 130-232-20 |
$2,900.00
|
||
|
32" (800mm) | 14.3" (363mm) | 4" MNPT One End | 25 psi (1.72 bar) | ** See Second Back Pressure Chart | 63" (1600mm) | 1/4" Male QD To 1/4" MNPT (1) & 1/2" Male QD To 1/2" MNPT (1) | 80 Lbs (36.3 Kg) | 130-230-4 |
$3,400.00
|
||
|
26.2" (665.5mm) | 19.2" (487.7mm) | 2" MNPT One End | 200 psi (13.79 bar) | 150 psi (10.34 bar)/350' (105 m) | 24" (609.6mm) | 1/2" Male QD To 1/2" MNPT (1) & 1/4" Male QD to 1/4" MNPT (1) | 146 Lbs (66.23 Kg) | 130-226-2HP |
$6,200.00
|
||
|
24.25" (616mm) | 11" (279mm) | 3" MNPT One End | 45 psi (3.10 bar) | ** See First Back Pressure Chart | 37" (940mm) | 1/4" Male QD To 1/4" MNPT | 36 Lbs (16.33 Kg) | 130-224-2 |
$1,720.00
|
||
|
20.2" (513.1mm) | 15.2" (386.1mm) | 2" MNPT One End | 200 psi (13.79 bar) | 150 psi (10.34 bar)/350 ft (105 m) | 24" (610mm) | 1/4" Male QD to 1/4" MNPT (1) and 1/2" Male QD to 1/2" MNPT (1) | 92 Lbs (41.73 Kg) | 130-220-2HP |
$4,800.00
|
||
|
18.25" (464mm) | 10.75" (273mm) | 3" MNPT One End | 45 psi (3 bar) | ** See First Back Pressure Chart | 25" (635mm) | 1/4" Male QD To 1/4" MNPT | 29 Lb (13.15 Kg) | 130-218-4 |
$1,580.00
|
||
|
16" (413mm) | 13.75" (346mm) | 3" FNPT One End | 35 psi (2.4 bar) | 13 psi (0.9 bar)/30 ft (9.1 m) | 19.75" (502mm) | 1/4" Male QD To 1/4" MNPT | 33 Lbs (15 Kg) | 130-216-3 |
$823.00
|
||
|
16.2" (411mm) | 11.9" (302mm) | 2" MNPT One End | 200 psi (13.8 bar) | 150 psi (10.34 bar)/350 ft (105 m) | 24" (610mm) | 1/4" Male QD To 1/4" MNPT (2) | 52 Lbs (23.59 Kg) | 130-216-2HP |
$3,980.00
|
||
|
16.25" (413mm) | 7.5" (186mm) | 2" MNPT One End | 45 psi (3 bar) | ** See First Back Pressure Chart | 28" (711mm) | 1/4" Male QD To 1/4" MNPT | 16 Lbs (7.26 Kg) | 130-216-2 |
$1,050.00
|
||
|
12.25" (311mm) | 10.25" (260mm) | 3" FNPT One End | 35 psi (2.4 bar) | 13 psi (0.9 bar)/30 ft (9.1m) | 13.75" (350mm) | 1/4" Male QD To 1/4" MNPT | 16 Lbs (7.2 Kg) | 130-212-3 |
$520.00
|
||
|
12.25" (311mm) | 7" (178mm) | 2" MNPT One End | 45 psi (3 bar) | ** See First Back Pressure Chart | 18.5" (470mm) | 1/4" Male QD To 1/4" MNPT | 13 Lbs (5.90 Kg) | 130-212-2 |
$800.00
|
||
|
12.25" (310mm) | 5.5" (140mm) | 1" MNPT One End | 45 psi (3 bar) | ** See First Back Pressure Chart | 25" (635mm) | 1/8" Male QD To 1/8" MNPT | 10 Lbs (4.54 Kg) | 130-212-1 |
$730.00
|
||
|
12.2" (309.9mm) | 7.7" (196mm) | 1-1/2" MNPT One End | 200 psi (13.8 bar) | 150 psi (10.34 bar)/350 ft (105 m) | 24" (610mm) | 1/4" Male QD To 1/4" MNPT (2) | 24 Lbs (10.89 Kg) | 130-212-07HP |
$2,880.00
|
||
|
10.25" (260mm) | 8.75" (222mm) | 3" FNPT One End | 35 psi (2.41 bar) | 13 psi (0.9 bar)/30 ft (9.1m) | 11.75" (298mm) | 1/4" Male QD To 1/4" MNPT | 9 Lbs (4 Kg) | 130-210-3 |
$371.00
|
||
|
10.25" (260mm) | 6.75" (171mm) | 2" FNPT One End | 30 psi (2.1 bar) | 17 psi (1.2 bar)/40 ft (12m) | 14.5" (368mm) | 1/4" Male QD To 1/4" MNPT | 9 Lbs (3 Kg) | 130-210-2 |
$469.00
|
||
|
8.25" (210mm) | 6.75" (170mm) | 3" FNPT One End | 35 psi (2.4 bar) | 13 psi (0.9 bar)/30 ft (9.1m) | 10" (254mm) | 1/4" Male QD To 1/4" MNPT | 5 Lb (2.27 Kg) | 130-208-3 |
$281.00
|
||
|
8.35" (212mm) | 5" (125mm) | 1-1/2" FNPT One End | 35 psi (2.4 bar) | 17 psi (1.2 bar)/40 ft (12 m) | 13" (330mm) | 1/4" Male QD To 1/4" MNPT | 6 Lbs (2.72 Kg) | 130-208-15 |
$357.00
|
||
|
8.25" (210mm) | 3.95" (92mm) | 1/2" MNPT One End | 45 psi (3 bar) | ** See First Back Pressure Chart | 23" (584mm) | 1/4" Male QD To 1/8" MNPT | 5 Lbs (2.27 Kg) | 130-208-07 |
$667.00
|
||
|
8.2" (208.3mm) | 3.8" (97mm) | 3/8" MNPT One End | 200 psi (13.79 bar) | 150 psi (10.34 bar)/350' (105 m) | 16" (406mm) | 1/4"Male QD to 1/8" MNPT (2) | 8 Lbs (3.63 Kg) | 130-208-03HP |
$2,300.00
|
||
|
6.25" (159mm) | 4.5" (112mm) | 1-1/2" FNPT One End | 35 psi (2.4 bar) | 13 psi (0.9 bar)/30 ft (9.1m) | 7" (178mm) | 1/8" Male QD to 1/8" MNPT | 2 Lbs (1 Kg) | 130-206-15 |
$230.00
|
||
|
6.25" (159mm) | 3.46" (88mm) | 3/4" FNPT One End | 35 psi (2.41 bar) | 17 psi (1.2 br)/40 ft (12 m) | 10.75" (273mm) | 1/8" NPT to Schrader Tire Valve Syle Inflation | 3 Lbs (1.36 Kg) | 130-206-07 |
$256.00
|
||
|
4.25" (108mm) | 3.13" (80mm) | 3/4" FNPT One End | 40 psi (2.8 bar) | 22 psi (1.5 bar)/50 ft (15 m) | 8" (203mm) | Schrader Tire Valve, Molded | 2 Lbs (0.91 Kg) | 130-204-07 |
$195.00
|
||
|
3.25" (83mm) | 2.5" (64mm) | 1/2" FNPT One End | 40 psi (2.8 bar) | 22 psi (1.5 bar)/50 ft (15 m) | 8" (203mm) | Schrader Tire Valve, Molded | 2 Lbs (0.91 Kg) | 130-203-07 |
$195.00
|
||
|
2.25" (57mm) | 1.75" (44mm) | 1/8" FNPT One End | 40 psi (2.8 bar) | 22 psi (1.5 bar)/50 ft (15 m) | 6" (152mm) | Schrader Tire Valve, Molded | 1 Lb (0.45 Kg) | 130-202-01 |
$180.00
|
||
|
1.88" (48mm) | 1.4" (36mm) | 1/4" MNPT One End | 40 psi (2.8 bar) | 22 psi (1.5 bar) /50 ft (15 m) | 3.8" (97mm) | Schrader Tire Valve, Molded | 1 Lb (0.45 Kg) | 130-2015-01 |
$167.00
|
