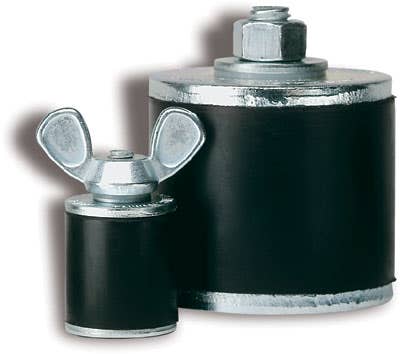

Pipe Plug, Water Line Stub, 143-5
- These water line stub plugs have a Natural rubber o-ring.
- Works in all types of pipe.
- Ideal for plugging water line stub-outs.
- Designed for high pressure applications.
- Sizes .39" to 1.25" have a wing nut.
- Sizes 1.5" to 5" have a hex nut.
143-5-Series Mechanical Hand Tightening Test Plugs Operation & Maintenance Instructions
Mechanical Pipe Plugs Without Integral Restraint Generic Operating Instructions
Pipe Plug, Water Line Stub, 143-5
Image | Pipe Size, Nominal | Dia. Max | Dia. Min | By-Pass | Pipeline Max PSI | Pipeline Pressure Max Head | Style | Shipping Wt. | Item Number | Price | Qty | Action |
---|---|---|---|---|---|---|---|---|---|---|---|---|
5" (125mm) | 5.19" (132mm) | 4.8" (122mm) | None | 8 psi (0.6 bar) | 18 ft (6 m) | Internal to Pipe Plug | 3 Lb (1.36 Kg) | 143-5050- |
$43.80
|
|
||
4" (100mm) | 4.5" (114mm) | 3.72" (95mm) | None | 24 psi (1.7 bar) | 55 ft (17 m) | Internal to Pipe Plug | 3 Lb (1.36 Kg) | 143-5040- |
$32.50
|
|
||
3" (75mm) | 3.2" (81mm) | 2.73" (69mm) | None | 28 psi (1.9 bar) | 65 ft (19 m) | Internal to Pipe Plug | 2 Lb (0.91 Kg) | 143-5030- |
$20.80
|
|
||
2.5" (60mm) | 2.78" (71mm) | 2.3" (58mm) | None | 72 psi (4.9 bar) | 166 ft (51 m) | Internal to Pipe Plug | 1 Lb (1.45 Kg) | 143-5025- |
$17.70
|
|
||
2" (50mm) | 2.06" (52mm) | 1.73" (44mm) | None | 112 psi (7.7 bar) | 258 ft (77 m) | Internal to Pipe Plug | 1 Lb (0.45 Kg) | 143-5020- |
$12.70
|
|
||
1.5" (40mm) | 1.53" (39mm) | 1.43" (36mm) | None | 88 psi (6.1 bar) | 203 ft (62 m) | Internal to Pipe Plug | 1 Lb (0.45 Kg) | 143-5015- |
$8.87
|
|
||
1.25" (32mm) | 1.43" (36mm) | 1.24" (32mm) | None | 112 psi (7.7 bar) | 258 ft (77 m) | Internal to Pipe Plug | 1 Lb (0.45 Kg) | 143-5012- |
$7.15
|
|
||
1" (25mm) | 1.02" (26mm) | 0.86" (22mm) | None | 40 psi (2.8 bar) | 92 ft (28 m) | Internal to Pipe Plug | 1 Lb (0.45 Kg) | 143-5010- |
$5.74
|
|
||
0.75" (20mm) | 0.87" (22mm) | 0.72" (18mm) | None | 180 psi (12.4 bar) | 415 ft (124 m) | Internal to Pipe Plug | 1 Lb (0.45 Kg) | 143-5007- |
$5.00
|
|
||
0.5" (13mm) | 0.56" (14mm) | 0.5" (13mm) | None | 180 psi (12.4 bar) | 415 f (124 m) | Internal to Pipe Plug | 1 Lb (0.45 Kg) | 143-5005- |
$4.68
|
|
||
0.39" (10mm) | 0.43" (11mm) | 0.38" (10mm) | None | 185 psi (12.8 bar) | 428 ft (128 m) | Internal to Pipe Plug | 1 Lb (0.45 Kg) | 143-5004- |
$5.63
|
|
