Pump, Hydrostatic Test, Diaphragm & Gas Engine
11 HP Diaphragm pump styles with volume 35 gpm @ 290 psi OR 5.5 HP Diaphragm pump styles with volume 9.5 gpm @ 550 psi
Hydrostatic Pump Testing Equipment is designed for pressure testing water lines and sewer force mains as prescribed by AWWA Standard C600 Installation of Ductile-Iron Water Mains and C605 Installation of PVC Pressure Pipe.
Hydrostatic Pressure Test Pumps are designed to be the most user friendly in the industry. Both Diaphragm and Piston Style water pressure test pumps are available and come powered by either a Honda or Briggs & Stratton engine.
Pump, Hydrostatic Test, Diaphragm Hi Gpm
Hydrostatic Test Pump - Diaphragm Style - High-Volume 35 GPM @290 psi
Features:
- 11 HP engine with oil alert™
- Hypro® triple diaphragm pump - 35 gpm/290 PSI
- Self priming, handles up to 10% chlorine solutions
- Enclosed gear reduction - excellent heat dissipation
- Heavy duty coupling with protective cover
Equipped with:
- Heavy-duty frame
- Pressure regulator - easy adjustment
- Silicone filled test gauge with stainless steel case
- Inline strainer - easy to clean clear bowl

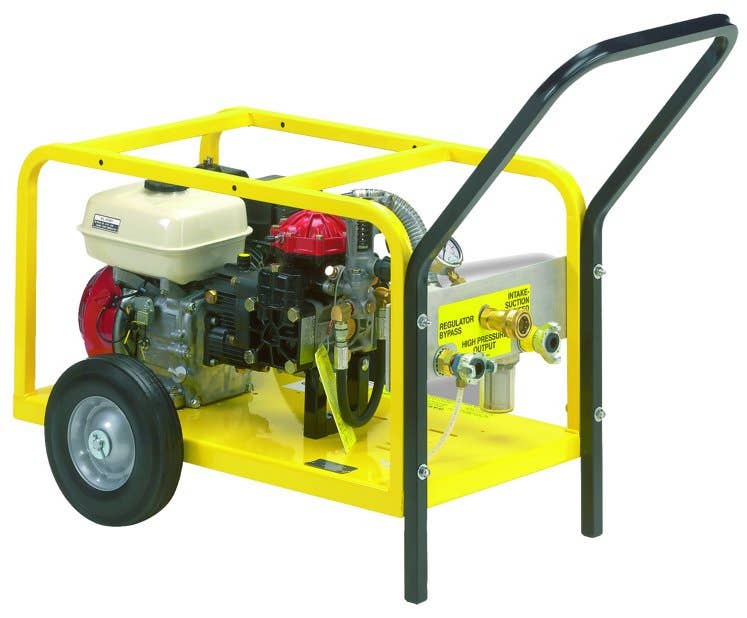

Shown with optional Wheel Kit
Hydrostatic Test Pump - Diaphragm Style - 9.5 gpm @ 550 psi
Features:
- 5.5 HP engine
- Hypro® Twin diaphragm pump - 9.5 gpm / 550 PSI
- Handles up to 10% chlorine solutions
- May be run dry
- Four output pressure settings
- Integral manifolds - eliminates leak points
- Enclosed gear reduction - excellent heat dissipationPulsation dampener - no need to surge tank
Equipped with:
- Heavy-duty frame
- Hydraulic quick-disconnect - brass, swivel fitting
- Inline strainer - easy to clean clear bowl
- Clear hose - flow verification
- Silicone filled test gauge w/stainless steel case
| Image | Size | Pressure, PSI | Max Flow Rate | Style | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|
|
17" L X 24" W X 10.5" H | 100 psi ( 6.89 bar) Max Air | 35 gpm @ 290 psi (19.99 bar) | 938-9335-H |
$8,400.00
|
|
||
|
36" L x 22" W x 22" H | 550 psi (37.92 bar) | 9.5 gpm @ 550 psi (37.94 bar) | Diaphragm | 938-93095-H |
$4,977.00
|
|
|
|
36" L x 22" W x 22" H | 550 psi (37.92 bar) | 9.5 gpm @550 psi (37.94 bar) | Diaphragm | 938-93095- |
$4,473.00
|
|
Pump, Hydrostatic Test, Hose & Accessories
- Optional Water Tank:16 gallon capacity polyethylene tank
- Allows pump to be pressure fed
- Hinged frame allows easy access to engine
- For use with 9.5 gallon diaphragm style pump
Wheel Kit for use with both hydrostatic tester models
| Image | Country of Origin | Description | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|
|
Strainer Nylon Filter | 1 Lb (0.45 Kg) | 938-9300-3 |
$51.56
|
|
||
|
Disconnect for Output | 2 Lb (0.91 Kg) | 938-9300-2 |
$113.40
|
|
||
|
16 Gallon Water Tank | 28 Lb (12.70 Kg) | 938-9300-16 |
$809.55
|
|
||
|
Gauge 0-300 psi (0-20.69 bar), 2.5" (63.5mm) Dial, Test Pressure Gauge with Retarded Increments to 600 psi (41.37 bar) | 1 Lb (0.45 Kg) | 938-9300-1060 |
$87.99
|
|
||
|
Wheel Kit | 23 Lb (10.43 Kg) | 938-9300-1 |
$207.90
|
|
||
|
12' (3.657 m) Output Hose with Disconnects | 6 Lb (2.72 Kg) | 938-9300-01440 |
$214.20
|
|
||
|
12' (3.657m) Input Hose | 10 Lb (4.54 Kg) | 938-9300-0144 |
$245.70
|
|
