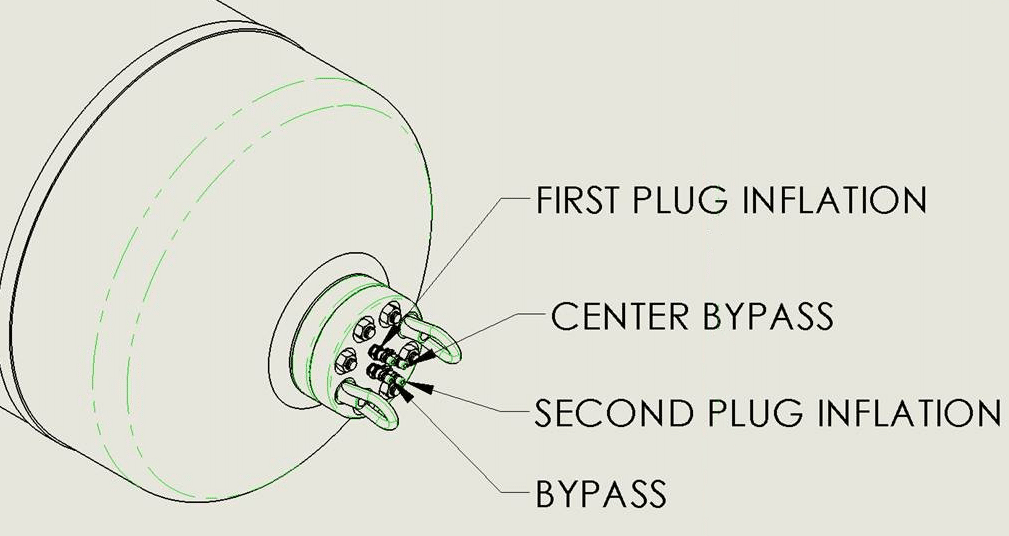

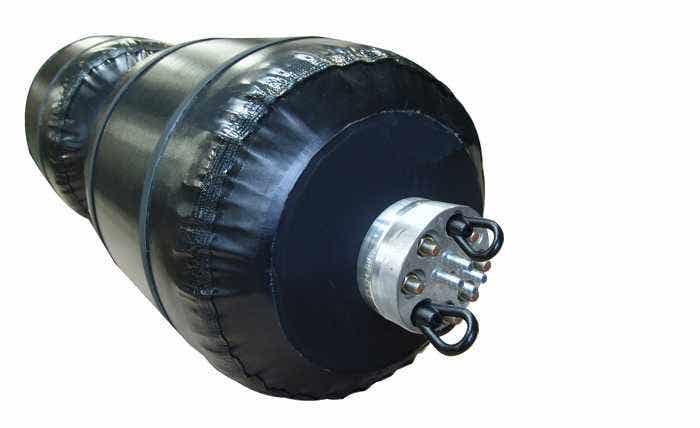

Pipe Plug, MF, High Pressure, 127 Series Block & Bleed

Loading...
View as List Grid

17 Items

Set Ascending Direction
    Image Dia. Max Dia. Deflated Infl. Max Pressure Pipeline Max Head Port, Inflation Length Deflated Shipping Wt. Item Number Price Qty Action
    96" (2438mm) 29" (737mm) 15 psi (1.03 bar) 17 ft (5.18 m) 6" X 300 lb 400" (10160mm) 360 Lb (163.29 Kg) 127-096-BB
    $162,648.00
    84" (2134mm) 23" (584mm) 15 psi (1.03 bar) 17 ft (5.18 m) 6" X 300 lb 352" (8941mm) 330 Lb (149.69 Kg) 127-084-BB
    $132,192.00
    72" (1829mm) 19" (483mm) 20 psi (1.37 bar) 23 ft (7.01 m) 6" X 300 lb 304" (7722mm) 300 Lb (136.058 Kg) 127-072-BB
    $101,736.00
    66" (1676mm) 19" (483mm) 20 psi (1.37 bar) 23 ft (7.01 m) 4" X 300 lb 280" (7112mm) 285 Lb (129.28 Kg) 127-066-BB
    $78,084.00
    60" (1524mm) 17" (431.8mm) 20 psi (1.37 bar) 23 ft (7.01 m) 4" X 300 lb 256" (6502.4mm) 268 Lb (121.56 Kg) 127-060-BB
    $65,448.00
    54" (1371.6mm) 15" (381mm) 30 psi (2.06 bar) 35 ft (10.66 m) 4" X 300 lb 232" (5892.8mm) 264 Lb (119.75 Kg) 127-054-BB
    $52,812.00
    48" (1219.2mm) 15" (381mm) 30 psi (2.06 bar) 35 ft (10.66 m) 4" X 300 lb 208" (5283.20mm) 229 Lb (103.87 Kg) 127-048-BB
    $43,416.00
    42" (1067mm) 15" (381mm) 40 psi (2.75 bar) 46 ft (14.02 m) 4" X 300 lb 184" (4674mm) 203 Lb (92.08 Kg) 127-042-BB
    $37,908.00
    36" (914.4mm) 11.75" (298.45mm) 50 psi (3.44 bar) 58 ft (17.67 m) 2" X 300 lb 160" (4064mm) 190 Lb (86.18 Kg) 127-036-BB
    $25,920.00
    30" (762mm) 11.75" (298mm) 60 psi (4.13 bar) 70 ft (21.33 m) 2" X 300 lb 136" (3454mm) 173 Lb (78.47 Kg) 127-030-BB
    $23,652.00
    24" (610mm) 11.75" (298mm) 80 psi (5.51 bar) 92 ft (28.04 m) 2" X 300 lb 112" (2845mm) 157 Lb (71.21 Kg) 127-024-BB
    $14,256.00
    20" (508mm) 11.1" (282mm) 80 psi (5.51 bar) 92 ft (28.04 m) 2" X 300 lb 96" (2438mm) 155 Lb (70.31 Kg) 127-020-BB
    $12,636.00
    18" (457mm) 11.1" (282mm) 100 psi (6.89 bar) 115 ft (35.05 m) 2" X 300 lb 88" (2235mm) 153 Lb (69.4 Kg) 127-018-BB
    $9,720.00
    16" (406mm) 11.1" (282mm) 100 psi (6.89 bar) 115 ft (35.05 m) 2" X 300 lb 80" (2032mm) 148 Lb (67.13 Kg) 127-016-BB
    $8,100.00
    12" (305mm) 9.5" (241mm) 120 psi (8.27 bar) 138 ft (42.06 m) 1/2" QDC Male 80" (2032mm) 140 Lb (63.5 Kg) 127-012-BB
    $5,832.00
    10" (254mm) 9.5" (241mm) 120 psi (8.27 bar) 138 ft (42.06 m) 1/4" QDC Male 80" (2032mm) 122 Lb (55.33 Kg) 127-010-BB
    $5,132.00
    8" (203mm) 7" (178mm) 120 psi (8.27 bar) 138 ft (42.06 m) 1/4" QDC Male 68" (1727mm) 42 Lb (19.05 Kg) 127-008-BB
    $4,958.00
