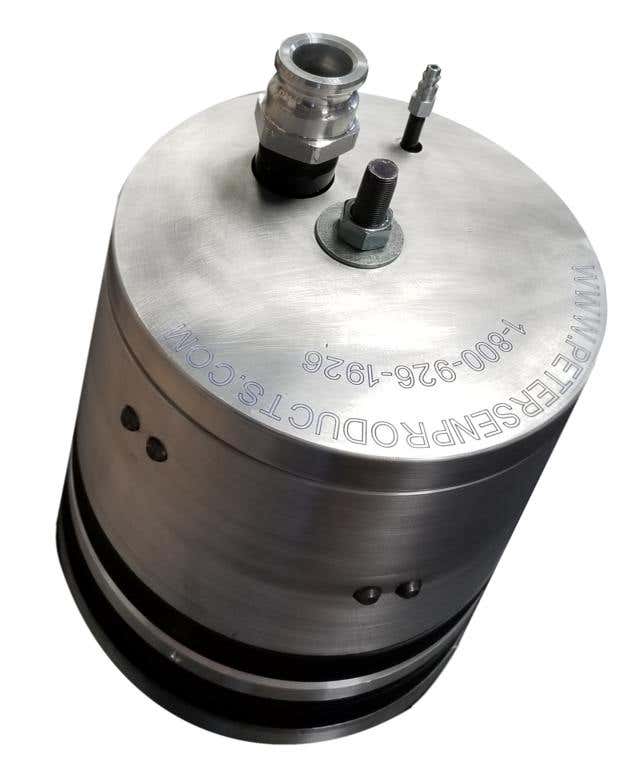

Pipe Plug, Hi Psi, Block & Bleed 145-1 Series

What are High PSI Block & Bleed Pipe Plugs

High PSI block and bleed pipe plugs are specialized equipment used to isolate parts of high-pressure pipelines, allowing for safe maintenance, pressure testing, and leak discovery without depressurizing the entire system. These plugs have a strong design that can handle high pressure while yet offering solid blockage via a unique locking mechanism.

The "block and bleed" capability offers dual sealing, with a bleed port for verifying seal integrity and safely releasing pressure before removal. This provides a safe and controlled working environment in a variety of industrial applications, particularly pipes transporting hazardous or high-pressure fluids.

Key Features of the 145-1 Series High Pressure Double Block and Bleed Plugs

The 145-1 Series High PSI Block & Bleed Pipe Plug is designed with numerous critical features to promote safety, reliability, and versatility in high-pressure pipeline applications.

• Single Tightening Nut: Expands the seal and activates the locking pin for secure installation.
• Pressure-Responsive Locking Pin: Increases hold as pipeline pressure rises.
• Double Block & Bleed Port: Verifies seal integrity before blocking the pipeline.
• Bypass Feature: Allows for pressure equalization during plug removal.
• Nitrile (Buna-N) Seals: Standard with options for various chemicals and temperatures.
• Wide Temperature Range: Operates from -40°F to +200°F.
• Available in Multiple Sizes: Fits most pipe specifications for versatile use.

Benefits of the Mechanical Double Block and Bleed Pipe Plugs

The 145-1 Series High PSI Pipe Plug is designed to provide superior reliability and performance in challenging high-pressure applications. Its innovative features and solid construction provide multiple advantages, making it an ideal choice for a variety of industrial applications.

1.       Enhanced Safety: The double block and bleed function allows seal verification, assuring a secure fit and removing leaks during high-pressure applications, hence improving overall safety for technicians and equipment.

2.       Efficient Maintenance: The 145-1 Series provides exact pipeline isolation, allowing for maintenance and repairs without the need to depressurize the whole system. This saves downtime and reduces operating costs.

3.       Space-Saving design: The plug's compact form eliminates the need for complex multivalve systems, simplifying your setup and saving critical pipeline space. This affordable design also simplifies installation and maintenance procedures, making the system more manageable.

4.       Customizable for Various Environments: Adaptable to a wide range of environmental conditions, with opportunities for different seal materials and customizations, including subsea installation adjustments, assuring optimal performance in particular applications.

Applications of 145-1 Series Mechanical High Pressure Block & Bleed Plugs

The 145-1 Series High PSI Double Block and Bleed Plug is designed for a variety of essential industrial and high-pressure pipeline applications, offering versatility and reliability in harsh situations.

• Industrial Pipeline Pressure Testing: The 145-1 Series is perfect for accurately testing pipes to ensure that they can handle high operating pressures without leaking or failing. Its high-pressure rating, as well as its double block and bleed capability, make these tests both safe and effective.
• Pipeline Isolation for Maintenance and Repairs: This pipe plug is used to isolate parts of a pipeline during maintenance or repair operations. By securely sealing off a section of the pipeline, technicians can safely work on the system without having to depressurize the entire line. This reduces downtime and operating interruptions.
• Seal Verification in High-Pressure Systems: The 145-1 Series, with its double block and bleed port, is ideal for testing the integrity of pipeline seals in high-pressure situations. This function allows operators to confirm the effectiveness of the plug's seal before performing testing or maintenance, enhancing safety and reducing the danger of leakage.
• Customization for ROV Sub-Sea Installations: The 145-1 Series can be customized for use in remote-operated vehicle (ROV) sub-sea installations. Its solid structure and versatility make it ideal for subsurface activities requiring precise sealing and blockage, such as offshore oil and gas pipelines. The flexibility to adapt the plug for unique subsea requirements increases its versatility.

Why Choose High PSI Double Block and Bleed Plugs

High PSI double block and bleed pipe plugs, such as the 145-1 Series, provide significant benefits when managing high-pressure pipelines. Their solid design creates a secure and dependable seal, which is critical for preventing leaks and maintaining pipeline integrity. The double block and bleed functionality is very useful in complicated systems where safety and precision are critical.

These double block & bleed plugs allow for seal testing before and during operations which ensures the pipeline is appropriately isolated and pressures are securely maintained. This makes them a crucial tool for industries using high-pressure and toxic fluids, ensuring both operational efficiency and safety in difficult settings.

Find Your Ideal High PSI Block & Bleed Pipe Plug

Improve your pipeline management with our 145-1 Series High PSI Block and Bleed Plugs. These plugs are designed for maximum efficiency in high-pressure applications, ensuring the reliability and safety you require. Browse our selection to find the best solution for your needs, or contact our staff for expert advice and customization possibilities.
