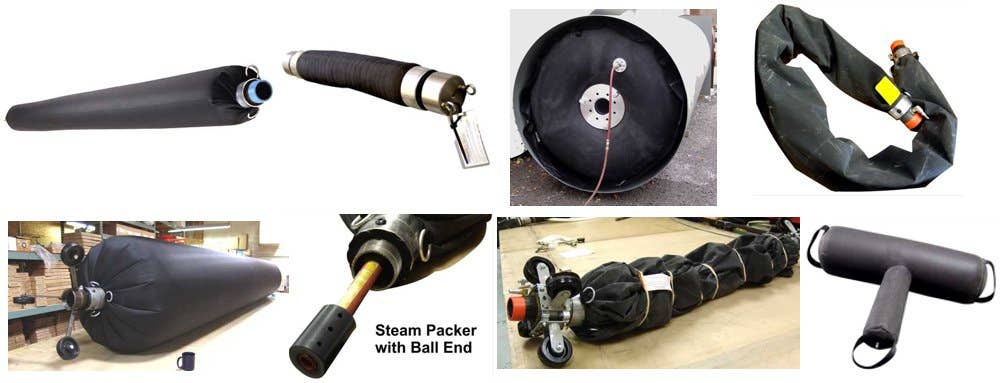

Inflatable Packer Carriers
Petersen Products offers solutions to all your pipeline repairs projects with high-quality inflatable packers that can withstand the most demanding applications. Our packer carriers can be built for various needs to fit the specifications for your CIPP linings project. Whether you’re working on pipelines, wells, or other plumbing tasks, our inflatable packers can be used for your lining needs.
For most size, pressure, chemical, and temperature requirements

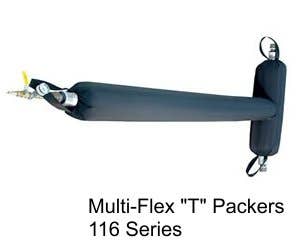

Multi-Flex® T Packer
The Multi-Flex® T Packer can be made at 45°, 90° or most angles to suit your application.
- Flexibility and light weight make positioning the packer easy especially in confined areas.
- Tee Packers may be pulled into the lateral from the main line or into the main line through the lateral.
- Almost any length and diameter is available.
- Deflates to a small flexible size for easy insertion.
- The Tee packer is often manufactured to meet a specific customer requirements. Let us quote based on your requirements.
- For pipes with missing sections, the Multi-Flex® material will maintain the pipeline diameter versus creating a bubble
| Image | Dia. Main Line | Main Line Contact Lngth | Dia. Lateral Line | Style | Pipe Plug Inflation Max Press. | Pipeline Pressure Max Head | Port, Inflation | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
24" (610mm) | 48" (1219mm) | 6" (152mm) | 90 Degree Lateral | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1/4" QD Plug | 20 Lb (9.07 Kg) | 116-2406-9 |
$4,064.00
|
||
|
24" (610mm) | 48" (1219mm) | 6" (152mm) | 45 Degree Lateral | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1/4" QD Plug | 20 Lb (9.07 Kg) | 116-2406-4 |
$4,473.00
|
||
|
18" (457mm) | 48" (1219mm) | 6" (152mm) | 90 Degree Lateral | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1/4" QD Plug | 18 Lb (8.16 Kg) | 116-1806-9 |
$3,371.00
|
||
|
18" (457mm) | 48" (1219mm) | 6" (152mm) | 45 Degree Lateral | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1/4" QD Plug | 18 Lb (8.16 Kg) | 116-1806-4 |
$3,717.00
|
||
|
12" (305mm) | 48" (1219mm) | 6" (152mm) | 90 Degree Lateral | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1/4" QD Plug | 14 Lb (6.35 Kg) | 116-1206-9 |
$2,762.00
|
||
|
12" (305mm) | 48" (1219mm) | 6" (152mm) | 45 Degree Lateral | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1/4" QD Plug | 14 Lb (6.35 Kg) | 116-1206-4 |
$3,056.00
|
||
|
10" (254mm) | 40" (1016mm) | 4" (102mm) | 90 Degree Lateral | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1/4" QD Plug | 12 Lb (5.44 Kg) | 116-1004-9 |
$2,363.00
|
||
|
10" (254mm) | 40" (1016mm) | 4" (102mm) | 45 Degree Lateral | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1/4" QD Plug | 12 Lb (5.44 Kg) | 116-1004-4 |
$2,599.00
|
||
|
8" (203mm) | 24" (610mm) | 4" (102mm) | 90 Degree Lateral | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1/4" QD Plug | 10 Lb (4.54 Kg) | 116-0804-9 |
$1,974.00
|
||
|
8" (203mm) | 24" (610mm) | 4" (102mm) | 45 Degree Lateral | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1/4" QD Plug | 10 Lb (4.54 Kg) | 116-0804-4 |
$2,174.00
|
||
|
6" (152mm) | 18" (457mm) | 4" (102mm) | 90 Degree Lateral | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1/4" QD Plug | 8 Lb (3.63 Kg) | 116-0604-9 |
$1,512.00
|
||
|
6" (152mm) | 18" (457mm) | 4" (102mm) | 45 Degree Lateral | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1/4" QD Plug | 8 Lb (3.63 Kg) | 116-0604-4 |
$1,670.00
|
||
|
8" (203.2mm) | 12" (305mm) | 4" (102mm) | 45 Degree Lateral | 10 psi (0.689 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | Customer Mandrel | 8 Lb (3.63 Kg) | 116-0404-4 |
$3,290.00
|
||
|
4" (102mm) | 16" (406mm) | 2" (51mm) | 90 Degree Lateral | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1/4" QD Plug | 6 Lb (2.72 Kg) | 116-0402-9 |
$1,302.00
|
||
|
4" (102mm) | 16" (406mm) | 2" (51mm) | 45 Degree Lateral | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1/4" QD Plug | 6 Lb (2.72 Kg) | 116-0402-4 |
$1,439.00
|
For most size, pressure, chemical, and temperature requirements
These Multi-Flex® Grout Packer Plugs feature:
- Light weight speeds up point repair projects
- Flexibility allows easy navigation through a manhole or confined spaces
- Available for air, water, or steam application of lining
- Configurations for most relining requirements
- Almost any length and diameter are available
- Deflates to small size for easy insertion
CIPP pipe lining and inflatable grout packers may be customized to meet a customer's specific requirements.
Our standard inflatable packers and carriers utilize nylon reinforced EPDM covers. Other materials also available.
Most Pressure, Temperature, and chemical requirement available.
| Image | Dia. Max | Dia. Deflated | By-Pass | Pipe Plug Inflation Max Press. | Pipeline Pressure Max Head | Port, Inflation | Length Deflated | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
48" (1219mm) | 10" (254mm) | None | 10 psi (0.68 bar) | 5 psi (0.34 bar)/11.53' (3.52 m) | 3" MNPT to 1/2" QD Plug | 179" (4547mm) | 182 Lbs (82.55 Kg) | 118-048-08 |
$7,600.00
|
||
|
42" (1067mm) | 8" (203mm) | None | 14 psi (0.96 bar) | 7 psi (0.48 bar)/16.2' (4.92 m) | 3" MNPT to 1/2" QD Plug | 154" (3912mm) | 138 Lbs (62.60 Kg) | 118-042-08 |
$6,600.00
|
||
|
36" (914mm) | 8" (203mm) | None | 18 psi (1.24 bar) | 9 psi (0.62 bar)/20.8' (6.33 m) | 3" MNPT to 1/2" QD Plug | 148" (3759mm) | 117 Lbs (53.07 Kg) | 118-036-08 |
$5,700.00
|
||
|
33" (838mm) | 7" (178mm) | None | 20 psi (1.37 bar) | 10 psi (0.69 bar)/23.1' (7.03 m) | 3" MNPT to 1/2" QD Plug | 145" (3683mm) | 94 Lbs (42.64 Kg) | 118-033-08 |
$4,290.00
|
||
|
30" (762mm) | 7" (178mm) | None | 20 psi (1.37 bar) | 10 psi (0.69 bar)/23.1' (7.03 m) | 3" MNPT to 1/2" QD Plug | 161" (4089mm) | 89 Lbs (40.37 Kg) | 118-030-08 |
$4,060.00
|
||
|
27" (686mm) | 7" (178mm) | None | 22 psi (1.51 bar) | 11 psi (0.76 bar)/25.4' (7.73 m) | 3" MNPT to 1/2" QD Plug | 139" (3531mm) | 76 lbs (34.47 Kg) | 118-027-08 |
$3,270.00
|
||
|
24" (610mm) | 6" (152mm) | None | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 3" MNPT to 1/2" QD Plug | 136" (3454mm) | 62 Lbs (28.12 Kg) | 118-024-08 |
$2,480.00
|
||
|
20" (508mm) | 6" (152mm) | None | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 2" MNPT to 1/2" QD Plug | 132" (3353mm) | 52 lbs (23.59 Kg) | 118-020-08 |
$2,170.00
|
||
|
18" (457mm) | 5" (127mm) | None | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 2" MNPT to 1/2" QD Plug | 130" (3302mm) | 47 lbs (21.32 Kg) | 118-018-08 |
$1,960.00
|
||
|
16" (406mm) | 5" (127mm) | None | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 2" MNPT to 1/2" QD Plug | 128" (3251mm) | 41 Lbs (18.60 Kg) | 118-016-08 |
$1,670.00
|
||
|
15" (381mm) | 5" (127mm) | None | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 2" MNPT to 1/2" QD Plug | 127" (3226mm) | 40 Lbs (18.14 Kg) | 118-015-08 |
$1,580.00
|
||
|
12" (305mm) | 5" (127mm) | None | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 2" MNPT to 1/4" QD Plug | 124" (3150mm) | 35 Lbs (15.88 Kg) | 118-012-08 |
$1,530.00
|
||
|
10" (254mm) | 5" (127mm) | None | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 2" MNPT to 1/4" QD Plug | 114" (2896mm) | 32 Lbs (14.52 Kg) | 118-010-08 |
$1,430.00
|
||
|
8" (203mm) | 5" (127mm) | None | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 2" MNPT to 1/4" QD Plug | 112" (2845mm) | 29 Lbs (13.15 kg) | 118-008-08 |
$1,200.00
|
||
|
6" (152mm) | 3" (76mm) | None | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1" MNPT to 1/4" QD Plug | 86" (2184mm) | 26 Lbs (11.79 Kg) | 118-006-06 |
$760.00
|
||
|
4" (102mm) | 2.5" (64mm) | None | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 3/4" MNPT to 1/4" QD Plug | 84" (2134mm) | 24 Lbs (10.89 Kg) | 118-004-06 |
$604.80
|
For most size, pressure, chemical, and temperature requirements
119 Series 3 1/2" to 48" Multi-Flex® Point Repair Packers / Carriers
These Multi-Flex®?Packer Plugs have a Flow-Thru By-Pass. Flexibility allows Carrier Packer to navigate through manhole into pipeline; then inflate with air, hot water or steam.
- High Strength Flexible Materials: Our Multi-Flex® Packers are made from very high strength flexible Ballistic Nylon reinforced EPDM covers. Other materials also available. Most Pressure, Temperature, and Chemical requirement available.
- Smooth, Even Relining: The Petersen® Packer has a fixed inflated diameter independent of the pipeline. This allows for a smooth repair with a constant diameter unlike rubber packers that generally follow the contour of the broken area of the pipeline causing an irregular I.D. Repair.
- Air, Hot Water or Steam: Packers can be fitted with connections for use with circulating hot water, steam or ambient cure with air or water.
- Easy Installation and Removal: Small deflated diameter, light weight, and flexibility allow installation of long Multi-Flex® Packers through a small opening or manhole. Removal after deflating is just as easy.
- Flow-Thru: The by-pass design allows flow through the Multi-Flex® Packer during repairs.
- Light Weight: Petersen® Multi-Flex® Packers are much lighter than molded rubber packers for easy placement.
- Almost any size: length and diameter
- Flexibility: Easily maneuver through bends and turns.
CIPP pipe lining and inflatable grout packers may be customized to meet a customer's specific requirements. Most Size, Pressure, Chemical and Temperature requirements.
| Image | Dia. Max | Dia. Deflated | By-Pass | Pipe Plug Inflation Max Press. | Pipeline Pressure Max Head | Port, Inflation | Length Deflated | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
48" (1219mm) | 15" (381mm) | 3" Male | 10 psi (0.68 bar) | 5 psi (0.34 bar)/11.5' (3.52 m) | 3/8" FNPT to 1/2" QD Plug | 166" (4216mm) | 526 Lbs (238.59 Kg) | 119-048-08 |
$8,500.00
|
||
|
42" (1067mm) | 12" (305mm) | 3" Male | 14 psi (1.0 bar) | 7 psi (0.48 bar)/16.2' (4.92 m) | 3/8" FNPT to 1/2" QD Plug | 154" (3912mm) | 460 Lbs (208.65 Kg) | 119-042-08 |
$7,400.00
|
||
|
38" (965mm) | 10" (254mm) | 3" FNPT | 10 psi (0.69 bar) | 5 psi (0.34bar)/11.5' (3.5 m) | 1/4" QC | 210 Lbs (95.26 Kg) | 119-038-02 |
$7,993.00
|
|||
|
36" (914mm) | 10" (254mm) | 3" Male | 20 psi (1.37 bar) | 10 psi (0.68 bar)/20.7' (6.33 m) | 3/8" FNPT to 1/2" QD Plug | 175.6" (4460mm) | 210 Lbs (95.26 Kg) | 119-036-08 |
$6,100.00
|
||
|
33" (838mm) | 10" (254mm) | 3" Male | 20 psi (1.37 bar) | 10 psi (0.69 bar)/23.1' (7.03 m) | 3/8" FNPT to 1/2" QD Plug | 145" (3683mm) | 158 Lbs (71.67 Kg) | 119-033-08 |
$5,100.00
|
||
|
30" (762mm) | 10" (254mm) | 3" Male | 20 psi (1.37 bar) | 10 psi (0.69 bar)/23.1' (7.03 m) | 3/8" FNPT to 1/2" QD Plug | 172" (4368mm) | 151 Lbs (68.49 Kg) | 119-030-08 |
$4,690.00
|
||
|
27" (686mm) | 10" (254mm) | 3" Male | 22 psi (1.51 bar) | 11 psi (0.76 bar)/25.4' (7.73 m) | 3/8" FNPT to 1/2" QD Plug | 139" (3531mm) | 132 Lbs (59.87 Kg) | 119-027-08 |
$4,170.00
|
||
|
24" (610mm) | 8" (203mm) | 3" Male | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.8 m) | 3/8" FNPT to 1/2" QD Plug | 136" (3454mm) | 112 Lbs (50.80 Kg) | 119-024-08 |
$3,620.00
|
||
|
20" (508mm) | 7" (178mm) | 3" Male | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.8 m) | 3/8" FNPT to 1/2" QD Plug | 133" (3378mm) | 102 Lbs (46.27 Kg) | 119-020-08 |
$3,190.00
|
||
|
18" (457mm) | 6" (152mm) | 3" Male | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.8 m) | 3/8" FNPT to 1/2" QD Plug | 130" (3302mm) | 92 Lbs (41.73 Kg) | 119-018-08 |
$2,870.00
|
||
|
16" (406mm) | 6" (152mm) | 3" Male | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.8 m) | 3/8" FNPT to 1/2" QD Plug | 128" (3251mm) | 82 Lbs (37.19 Kg) | 119-016-08 |
$2,450.00
|
||
|
15" (381mm) | 6" (152mm) | 3" Male | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.8 m) | 3/8" FNPT to 1/2" QD Plug | 127" (3226mm) | 80 Lbs (36.29 Kg) | 119-015-08 |
$2,390.00
|
||
|
12" (305mm) | 6" (152mm) | 3" Male | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.8 m) | 3/8" FNPT to 1/2" QD Plug | 124" (3150mm) | 70 Lbs (31.75 Kg) | 119-012-08 |
$2,250.00
|
||
|
10" (254mm) | 6" (152mm) | 3" Male | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.8 m) | 3/8" FNPT to 1/2" QD Plug | 114" (2896mm) | 64 Lbs (29.03 Kg) | 119-010-08 |
$2,100.00
|
||
|
8" (203mm) | 6" (152mm) | 3" Male | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.8 m) | 3/8" FNPT to 1/2" QD Plug | 112" (2845mm) | 60 Lbs (27.22 Kg) | 119-008-08 |
$1,870.00
|
||
|
6" (152mm) | 5" (127mm) | 2" Male | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.8 m) | 1/4" FNPT to 1/4" QD Plug | 86" (2184mm) | 35 Lbs (15.88 Kg) | 119-006-06 |
$1,040.00
|
||
|
4" (102mm) | 3.5" (89mm) | 1" Male | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.8 m) | 1/4" FNPT to 1/4" QD Plug | 84" (2134mm) | 28 Lbs (12.70 Kg) | 119-004-06 |
$941.00
|

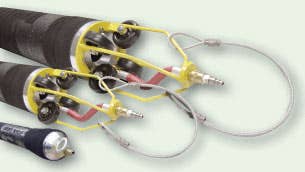

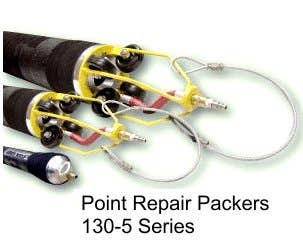

Point Repair Packer
These Point Repair Carriers are well-suited for most point repair systems. Available for pipe sizes 4" to 12", these carriers are known for both their durability and reliability. Custom lengths are available upon request. Features for all sizes:
- Made of aramid corded natural rubber: extremely durable and flexible
- Flexible: All units can fold in half for transport
- 1/4” NPT Inflation Port with male quick disconnect for ease of connection
- Integrated cage/wheel assembly for ease of movement down the pipe
- Bypass design allows sewage bypass during repair
- Unique centered inflation port for use with push rod inflation poles
- Wire harness keeps unit centered in pipe
- 2" FPT bypass allows for continuous sewer flow
Shipment generally one week from order receipt
6" - 12" diameters include a 2" FPT bypass
| Image | Dia. Max | Dia. Deflated | Pressure, Required Inflation PSI | Port, Inflation | Length Overall Inflated, Est. | Length, Contact, Est. | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
12" (305mm) | 4.75" (121mm) | 25 psi (1.72 bar) | 1/4" NPT to male QC | 180" (4572mm) | 168" (4267mm) | 37.5Lb (17.01 Kg) | 130-50812-15 |
$3,060.00
|
||
|
12" (305mm) | 4.75" (121mm) | 25 psi (1.72 bar) | 1/4" NPT to male QC | 120" (3048mm) | 108" (2743.2mm) | 30 Lb (13.61 Kg) | 130-50812-10 |
$2,020.00
|
||
|
12" (305mm) | 4.75" (121mm) | 25 psi (1.72 bar) | 1/4" NPT to male QC | 60" (1524mm) | 48" (1219.2mm) | 22 Lb (9.98 Kg) | 130-50812-05 |
$1,800.00
|
||
|
6.25" (158.75mm) | 2.6" (66.04mm) | 45 psi (3.06 bar) | 1/4" NPT to male QC | 144" (3657mm) | 136" (3454mm) | 14 Lb (6.35 Kg) | 130-50406-12 |
$2,310.00
|
||
|
6" (152mm) | 2.65" (67mm) | 45 psi (3.10 bar) | 1/4" NPT to male QC | 120" (3048mm) | 113" (2870.2mm) | 13.5 Lb (6.12 Kg) | 130-50406-10 |
$1,980.00
|
||
|
6" (152mm) | 2.65" (67mm) | 45 psi (3.10 bar) | 1/4" NPT to male QC | 60" (1524mm) | 53" (1346mm) | 10 Lb (4.54 Kg) | 130-50406-05 |
$1,370.00
|
