128 Series, PeteStop® Line Stop Insertion System

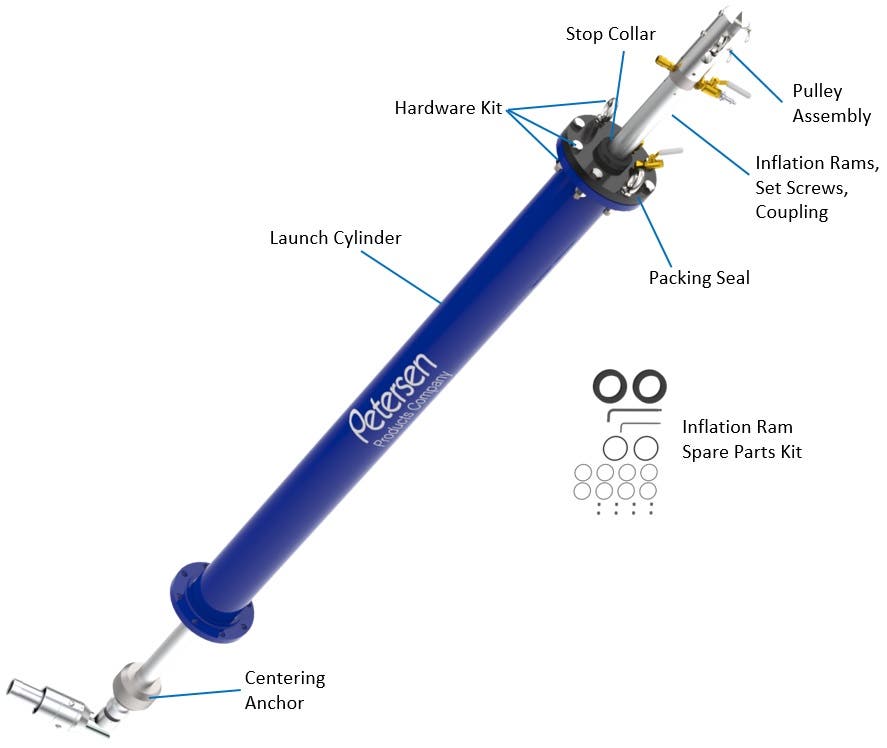

128-Series Insertion System Kits consist of:
- Launch Cylinder(s)
- Inflation Ram(s), Set Screws, Coupling (if needed)
- Inflation Pulley Assembly
- Packing Seal
- Centering Anchor
- Hardware Kit - Bolts, Eyebolts, Nuts, Gasket
- Inflation Ram Spare Parts Kit
Does not include 128-Series Plug & Rotating Elbow
| Image | Dia., Inflated Plug | Hot Tap Hole Size | Dia., Inflation Ram | Infl. Ram Pkg. Seal ID/OD | Lngth, Launch Cyl. | Dia., Launch Cyl. | Connection Type | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
72" (1829mm) | 15" (381mm) | 2.5" (64mm) | 2.5" (64mm) / 16" (406mm) 150 Lb Flange | 288" (7315mm) | 16" (406mm) | 16" (406mm) x 150 Lb Flange | 2100 Lb (950 Kg) | 938-072-KIT |
$21,806.79
|
||
|
66" (1676mm) | 13" (330mm) | 2.5" (64mm) | 2.5" (64mm) / 14" (356mm) 150 Lb Flange | 264" (6706mm) | 14" (356mm) | 14" (356mm) x 150 Lb Flange | 1900 Lb (860 Kg) | 938-066-KIT |
$22,856.70
|
||
|
60" (1524mm) | 13" (330mm) | 2.5" (64mm) | 2.5" (64mm) / 14" (356mm) 150 Lb Flange | 252" (6401mm) | 14" (356mm) | 14" (356mm) x 150 Lb Flange | 1700 Lb (770 Kg) | 938-060-KIT |
$22,150.70
|
||
|
54" (1372mm) | 11.75" (298mm) | 2.5" (64mm) | 2.5" (64mm) / 12" (305mm) 150 Lb Flange | 228" (5791mm) | 12" (305mm) | 12" (305mm) x 150 Lb Flange | 1500 Lb (680 Kg) | 938-054-KIT |
$16,586.70
|
||
|
48" (1219mm) | 9.75" (248mm) | 2.5" (64mm) | 2.5" (64mm) / 10" (254mm) 150 Lb Flange | 192" (4877mm) | 10" (254mm) | 10" (254mm) x 150 Lb Flange | 1317 Lb (597 Kg) | 938-048-KIT |
$14,456.18
|
||
|
42" (1067mm) | 9.75" (248mm) | 2.5" (64mm) | 2.5" (64mm) / 10" (254mm) 150 Lb Flange | 180" (4572mm) | 10" (254mm) | 10" (254mm) x 150 Lb Flange | 1241 Lb (563 Kg) | 938-042-KIT |
$12,491.18
|
||
|
36" (914mm) | 9.75" (248mm) | 2.5" (64mm) | 2.5" (64mm) / 10" (254mm) 150 Lb Flange | 156" (3962mm) | 10" (254mm) | 10" (254mm) x 150 Lb Flange | 1043 Lb (473 Kg) | 938-036-KIT |
$10,774.18
|
||
|
32"-33" (813mm-838mm) | 9.75" (248mm) | 2.5" (64mm) | 2.5" (64mm) / 10" (254mm) 150 Lb Flange | 144" (3658mm) | 10" (254mm) | 10" (254mm) x 150 Lb Flange | 1003 Lb (455 Kg) | 938-032-KIT |
$10,038.18
|
||
|
30" (762mm) | 7.875" (200mm) | 2.5" (64mm) | 2.5" (64mm) / 8" (203mm) 150 Lb Flange | 132" (3353mm) | 8" (203mm) | 8" (203mm) x 150 Lb Flange | 836 Lb (379 Kg) | 938-030-KIT |
$8,523.32
|
||
|
24" (610mm) | 7.75" (197mm) | 2.5" (64mm) | 2.5" (64mm) / 8" (203mm) 150 Lb Flange | 108" (2743mm) | 8" (203mm) | 8" (203mm) x 150 Lb Flange | 732 Lb (332 Kg) | 938-024-KIT |
$7,798.32
|
||
|
20" (508mm) | 7.75" (197mm) | 2.5" (64mm) | 2.5" (64mm) / 8" (203mm) 150 Lb Flange | 96" (2438mm) | 8" (203mm) | 8" (203mm) x 150 Lb Flange | 652 Lb (296 Kg) | 938-020-KIT |
$7,306.32
|
||
|
18" (457mm) | 7.75" (197mm) | 2.5" (64mm) | 2.5" (64mm) / 8" (203mm) 150 Lb Flange | 84" (2134mm) | 8" (203mm) | 8" (203mm) x 150 Lb Flange | 535 Lb (243 Kg) | 938-018-KIT |
$5,777.32
|
||
|
16" (406mm) | 5.75" (146mm) | 2.5" (64mm) | 2.5" (64mm) / 6" (152mm) 150 Lb Flange | 84" (2134mm) | 6" (152mm) | 6" (152mm) x 150 Lb Flange | 376 Lb (171 Kg) | 938-016-KIT |
$5,420.01
|
||
|
12"-15" (305mm-381mm) | 5.75" (146mm) | 2.5" (64mm) | 2.5" (64mm) / 6" (152mm) 150 Lb Flange | 72" (1829mm) | 6" (152mm) | 6" (152mm) x 150 Lb Flange | 347 Lb (157 Kg) | 938-012-KIT |
$4,439.21
|
||
|
10" (254mm) | 5.75" (146mm) | 1.875" (48mm) | 1.875" (48mm) / 6" (152mm) 150 Lb Flange | 60" (1524mm) | 6" (152mm) | 6" (152mm) x 150 Lb Flange | 278 Lb (126 Kg) | 938-010-KIT |
$4,280.91
|
||
|
8" (203mm) | 5.75" (146mm) | 1.875" (48mm) | 1.875" (48mm) / 6" (152mm) 150 Lb Flange | 48" (1219mm) | 6" (152mm) | 6" (152mm) x 150 Lb Flange | 253 Lb (115 Kg) | 938-008-KIT |
$4,044.91
|
||
|
5"-6" (127mm-152mm) | 3.75" (95mm) | 1" (25mm) | 1" (25mm) x 4" (102mm) 150 Lb Flange | 36" (914mm) | 4" (102mm) | 4" (102mm) x 150 Lb Flange | 116 Lb (52.6 Kg) | 938-006-KIT |
$2,843.80
|
||
|
4" (102mm) | 2.875" (73mm) | 1" (25mm) | 1" (25mm) X 3" (76mm) NPT | 36" (914mm) | 3" (76mm) | 3" MNPT (76mm) | 51 Lb (23.1 Kg) | 938-004-KIT |
$1,766.80
|
||
|
2"-3" (51mm-76mm) | 1.875" (48mm) | 1" (25mm) | 1" (25mm) X 2" (51mm) NPT | 24" (610mm) | 2" (51mm) | 2" MNPT (51mm) | 27 Lb (12.3 Kg) | 938-002-KIT |
$1,693.45
|
The 128 Series PeteStop® Line Stop Insertion System is designed for the safe and controlled installation of the 128-Series inflatable line stop plugs in pipelines. Each system ensures consistent performance during live line stopping, allowing for maintenance, valve replacement, or adjustments without having to shut down the entire system.
Each PeteStop® Insertion system is tested for field durability and designed to meet most size, pressure, chemical, and temperature requirements encountered in pipeline maintenance applications.
Complete 128-Series Insertion System Kit Components
Each 128-Series Insertion System Kit includes all the essential components required for controlled, safe, and efficient installation of PeteStop® inflatable line stop plugs. Every part is designed to ensure proper alignment, sealing, and performance during live pipeline operations.
- Launch Cylinder(s): Used to insert and accurately position the inflatable line stop plug into the pipeline under pressure.
- Inflation Ram(s): Regulates plug inflation once in place and includes set screws and coupling (if required) for secure operation.
- Inflation Pulley Assembly: Provides smooth control for positioning and retrieving the plug during inflation and deflation.
- Packing Seal: Forms a reliable, leak-tight seal on the Launch Cylinder and the insertion ram while allowing for pressure release and pipeline pressure monitoring.
- Centering Anchor: Keeps the insertion system properly aligned, anchoring the plug in the pipeline.
- Hardware Kit: Contains bolts, eyebolts, nuts, and gasket for assembling and securing all insertion components.
- Inflation Ram Spare Parts Kit: Includes replacement parts for continued system reliability and field maintenance.
Note: The 128-Series Plug and Rotating Elbow are sold separately.
Advantages of the PeteStop® Insertion System
The 128-Series PeteStop® Line Stop Insertion System provides a dependable solution for installing inflatable line stop plugs in live pipelines. Built with precision components, it allows technicians to isolate sections safely and efficiently without interrupting service.
- Designed for use with PeteStop® inflatable line stop plugs: Ensures complete compatibility and reliable performance during insertion and inflation.
- Supports a wide range of pipeline sizes and materials: Suitable for various pipe types used in industrial, municipal, and utility applications.
- Enables controlled plug deployment and removal: Provides accurate placement and smooth plug retrieval under pressure.
- Built for industrial environments: Constructed from durable materials to withstand demanding field conditions.
- Engineered for repeat use and easy field maintenance: Designed for long service life with replaceable components to reduce downtime.
Applications of PeteStop® Line Stop Insertion System
The 128 Series PeteStop® Line Stop Insertion System is used when controlled isolation of a pressurized pipeline is required. It supports a wide range of field operations, allowing crews to work safely and efficiently while maintaining service.
- Pipeline maintenance and modification: Offers reliable isolation for pipe section replacements, tie-ins, and other field repairs.
- Valve repair or replacement under pressure: Technicians can service or replace damaged valves without depressurizing the system.
- Temporary pipeline isolation: Forms a secure seal for short-term shutdowns or repairs.
- Testing and bypass operations: Allows testing, purging, or temporary bypasses while maintaining flow control.
- Safe line stopping with no service interruption: Allows uninterrupted operation during planned maintenance or emergency repairs.
Request A Quote For PeteStop® Line Stop Insertion System
Each pipeline project has its own challenges, and our technical staff can assist in matching the correct insertion system setup, launch cylinders, and inflatable plugs for your operating conditions.
Contact Petersen Products for detailed specifications, pricing, or assistance in selecting the right components for your 128 Series PeteStop® Line Stop Insertion System. Our team can also help with custom configurations to meet most size, pressure, and application requirements.
Request a quote or call us today at 262-692-3100
