PeteStop® Line Stop Insertion System Kits
128-Series Insertion System Kits consist of:
- Launch Cylinder(s)
- Inflation Ram(s), Set Screws, Coupling (if needed)
- Inflation Pulley Assembly
- Packing Seal
- Centering Anchor
- Hardware Kit - Bolts, Eyebolts, Nuts, Gasket
- Inflation Ram Spare Parts Kit
Does not include 128-Series Plug & Rotating Elbow
| Image | Dia., Inflated Plug | Hot Tap Hole Size | Dia., Inflation Ram | Infl. Ram Pkg. Seal ID/OD | Lngth, Launch Cyl. | Dia., Launch Cyl. | Connection Type | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
72" (1829mm) | 15" (381mm) | 2.5" (64mm) | 2.5" (64mm) / 16" (406mm) 150 Lb Flange | 288" (7315mm) | 16" (406mm) | 16" (406mm) x 150 Lb Flange | 2100 Lb (950 Kg) | 938-072-KIT |
$21,806.79
|
||
|
66" (1676mm) | 13" (330mm) | 2.5" (64mm) | 2.5" (64mm) / 14" (356mm) 150 Lb Flange | 264" (6706mm) | 14" (356mm) | 14" (356mm) x 150 Lb Flange | 1900 Lb (860 Kg) | 938-066-KIT |
$22,856.70
|
||
|
60" (1524mm) | 13" (330mm) | 2.5" (64mm) | 2.5" (64mm) / 14" (356mm) 150 Lb Flange | 252" (6401mm) | 14" (356mm) | 14" (356mm) x 150 Lb Flange | 1700 Lb (770 Kg) | 938-060-KIT |
$22,150.70
|
||
|
54" (1372mm) | 11.75" (298mm) | 2.5" (64mm) | 2.5" (64mm) / 12" (305mm) 150 Lb Flange | 228" (5791mm) | 12" (305mm) | 12" (305mm) x 150 Lb Flange | 1500 Lb (680 Kg) | 938-054-KIT |
$16,586.70
|
||
|
48" (1219mm) | 9.75" (248mm) | 2.5" (64mm) | 2.5" (64mm) / 10" (254mm) 150 Lb Flange | 192" (4877mm) | 10" (254mm) | 10" (254mm) x 150 Lb Flange | 1317 Lb (597 Kg) | 938-048-KIT |
$14,456.18
|
||
|
42" (1067mm) | 9.75" (248mm) | 2.5" (64mm) | 2.5" (64mm) / 10" (254mm) 150 Lb Flange | 180" (4572mm) | 10" (254mm) | 10" (254mm) x 150 Lb Flange | 1241 Lb (563 Kg) | 938-042-KIT |
$12,491.18
|
||
|
36" (914mm) | 9.75" (248mm) | 2.5" (64mm) | 2.5" (64mm) / 10" (254mm) 150 Lb Flange | 156" (3962mm) | 10" (254mm) | 10" (254mm) x 150 Lb Flange | 1043 Lb (473 Kg) | 938-036-KIT |
$10,774.18
|
||
|
32"-33" (813mm-838mm) | 9.75" (248mm) | 2.5" (64mm) | 2.5" (64mm) / 10" (254mm) 150 Lb Flange | 144" (3658mm) | 10" (254mm) | 10" (254mm) x 150 Lb Flange | 1003 Lb (455 Kg) | 938-032-KIT |
$10,038.18
|
||
|
30" (762mm) | 7.875" (200mm) | 2.5" (64mm) | 2.5" (64mm) / 8" (203mm) 150 Lb Flange | 132" (3353mm) | 8" (203mm) | 8" (203mm) x 150 Lb Flange | 836 Lb (379 Kg) | 938-030-KIT |
$8,523.32
|
||
|
24" (610mm) | 7.75" (197mm) | 2.5" (64mm) | 2.5" (64mm) / 8" (203mm) 150 Lb Flange | 108" (2743mm) | 8" (203mm) | 8" (203mm) x 150 Lb Flange | 732 Lb (332 Kg) | 938-024-KIT |
$7,798.32
|
||
|
20" (508mm) | 7.75" (197mm) | 2.5" (64mm) | 2.5" (64mm) / 8" (203mm) 150 Lb Flange | 96" (2438mm) | 8" (203mm) | 8" (203mm) x 150 Lb Flange | 652 Lb (296 Kg) | 938-020-KIT |
$7,306.32
|
||
|
18" (457mm) | 7.75" (197mm) | 2.5" (64mm) | 2.5" (64mm) / 8" (203mm) 150 Lb Flange | 84" (2134mm) | 8" (203mm) | 8" (203mm) x 150 Lb Flange | 535 Lb (243 Kg) | 938-018-KIT |
$5,777.32
|
||
|
16" (406mm) | 5.75" (146mm) | 2.5" (64mm) | 2.5" (64mm) / 6" (152mm) 150 Lb Flange | 84" (2134mm) | 6" (152mm) | 6" (152mm) x 150 Lb Flange | 376 Lb (171 Kg) | 938-016-KIT |
$5,420.01
|
||
|
12"-15" (305mm-381mm) | 5.75" (146mm) | 2.5" (64mm) | 2.5" (64mm) / 6" (152mm) 150 Lb Flange | 72" (1829mm) | 6" (152mm) | 6" (152mm) x 150 Lb Flange | 347 Lb (157 Kg) | 938-012-KIT |
$4,439.21
|
||
|
10" (254mm) | 5.75" (146mm) | 1.875" (48mm) | 1.875" (48mm) / 6" (152mm) 150 Lb Flange | 60" (1524mm) | 6" (152mm) | 6" (152mm) x 150 Lb Flange | 278 Lb (126 Kg) | 938-010-KIT |
$4,280.91
|
||
|
8" (203mm) | 5.75" (146mm) | 1.875" (48mm) | 1.875" (48mm) / 6" (152mm) 150 Lb Flange | 48" (1219mm) | 6" (152mm) | 6" (152mm) x 150 Lb Flange | 253 Lb (115 Kg) | 938-008-KIT |
$4,044.91
|
||
|
5"-6" (127mm-152mm) | 3.75" (95mm) | 1" (25mm) | 1" (25mm) x 4" (102mm) 150 Lb Flange | 36" (914mm) | 4" (102mm) | 4" (102mm) x 150 Lb Flange | 116 Lb (52.6 Kg) | 938-006-KIT |
$2,843.80
|
||
|
4" (102mm) | 2.875" (73mm) | 1" (25mm) | 1" (25mm) X 3" (76mm) NPT | 36" (914mm) | 3" (76mm) | 3" MNPT (76mm) | 51 Lb (23.1 Kg) | 938-004-KIT |
$1,766.80
|
||
|
2"-3" (51mm-76mm) | 1.875" (48mm) | 1" (25mm) | 1" (25mm) X 2" (51mm) NPT | 24" (610mm) | 2" (51mm) | 2" MNPT (51mm) | 27 Lb (12.3 Kg) | 938-002-KIT |
$1,693.45
|

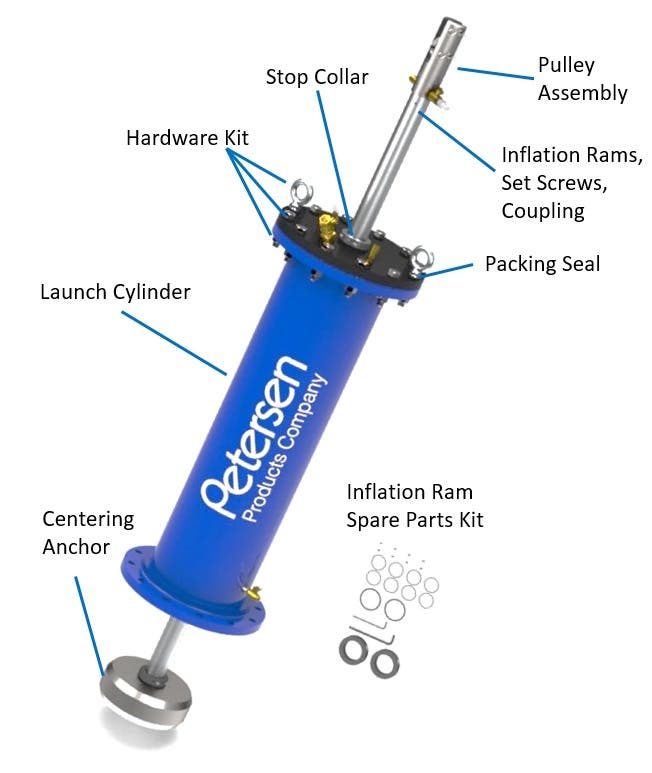

The 129-Series Insertion System Kits consist of:
- Launch Cylinder(s)
- Inflation Ram(s), Set Screws, Coupling (if needed)
- Inflation Pulley Assembly
- Packing Seal
- Centering Anchor
- Hardware Kit - Bolts, Eyebolts, Nuts, Gasket
- Inflation Ram Spare Parts Kit
Does not include 129-Series PeteStop® Plug, Retraction System & Inflation Kit.
| Image | Dia., Inflated Plug | Hot Tap Hole Size | Dia., Inflation Ram | Lngth, Launch Cyl. | Dia., Launch Cyl. | Connection Type | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
96" (2438.4mm) | 23" (584mm) | 2.5" (63.5mm) | 168" (4267.2mm) | 20" (508mm) | 20" (508mm) x 150 Lb Flange | 939-096-KITWATER |
$36,214.41
|
|||
|
84" (2134mm) | 19" (483mm) | 2.5" (64mm) | 144" (3658mm) | 20" (508mm) | 20" (508mm) x 150 Lb Flange | 3000 Lb (1360.79 Kg) | 939-084-KITWATER |
$25,742.26
|
||
|
72" (1829mm) | 19" (483mm) | 2.5" (64mm) | 120" (3048mm) | 20" (508mm) | 20" (508mm) x 150 Lb Flange | 2895 Lb (1313.16 Kg) | 939-072-KITWATER |
$25,084.26
|
||
|
66" (1676mm) | 2.5" (64mm) | 120" (3048mm) | 18" (457mm) | 18" (457mm) x 150 Lb Flange | 2052 Lb (930.78 Kg) | 939-066-KITWATER |
$20,093.10
|
|||
|
60" (1524mm) | 17" (432mm) | 2.5" (64mm) | 108" (2743mm) | 18" (457mm) | 18" (457mm) x 150 Lb Flange | 1747 Lb (792 Kg) | 939-060-KITWATER |
$18,557.10
|
||
|
54" (1372mm) | 15" (381mm) | 2.5" (64mm) | 96" (2438mm) | 16" (406mm) | 16" (406mm) x 150 Lb Flange | 1468 Lb (665.88 Kg) | 939-054-KIT |
$11,178.10
|
||
|
48" (1219mm) | 15" (381mm) | 2.5" (64mm) | 84" (2134mm) | 16" (406.4mm) | 16" (406mm) x 150 Lb Flange | 1387 Lb (629.14 Kg) | 939-048-KIT |
$9,689.10
|
||
|
42" (1067mm) | 15" (381mm) | 2.5" (64mm) | 72" (1829mm) | 16" (406mm) | 16" (406mm) x 150 Lb Flange | 1314 Lb (596.03 Kg) | 939-042-KIT |
$9,180.10
|
||
|
36" (914mm) | 11.875" (302mm) | 2.5" (64mm) | 72" (1829mm) | 12" (305mm) | 12" (305mm) x 150 Lb Flange | 748 Lb (339.29 Kg) | 939-036-KIT |
$6,822.10
|
||
|
30"-33" (762mm-838mm) | 11.875" (302mm) | 2.5" (64mm) | 60" (1524mm) | 12" (305mm) | 12" (305mm) x 150 Lb Flange | 685 Lb (310.71 Kg) | 939-02833-KIT |
$6,056.10
|
||
|
24" (610mm) | 11.875" (302mm) | 2.5" (64mm) | 48" (1219mm) | 12" (305mm) | 12" (305mm) x 150 Lb Flange | 635 Lb (288.03 Kg) | 939-024-KIT |
$5,787.10
|
||
|
16"-20" (406mm-508mm) | 9.875" (251mm) | 1.875" (48mm) | 36" (914mm) | 10" (254mm) | 10" (254mm) x 150 Lb Flange | 396 Lb (179.62 Kg) | 939-01620-KIT |
$4,924.20
|
||
|
12"-15" (305-381mm) | 7.875" (200mm) | 1.875" (48mm) | 36" (914mm) | 8" (203mm) | 8" (203mm) x 150 Lb Flange | 289 Lb (131.09 Kg) | 939-01215-KIT |
$4,120.20
|
||
|
8"-10" (203-254mm) | 5.875" (149mm) | 1" (25mm) | 24" (610mm) | 6" (152mm) | 6" (152mm) x 150 Lb Flange | 301 Lb (136.5 Kg) | 939-00810-KIT |
$3,153.60
|
||
|
5"-6" (127mm-152mm) | 3.875" (98mm) | 1" (25mm) | 24" (610mm) | 4" (102mm) | 4" (102mm) x 150 Lb Flange | 84 Lb (38.10 Kg) | 939-006-KIT |
$2,654.80
|
||
|
4" (102mm) | 3.875" (98mm) | 1" (25mm) | 12" (305mm) | 4" (102mm) | 4" (102mm) x 150 Lb Flange | 75 Lb (34.02 Kg) | 939-004-KIT1 |
$2,382.80
|
||
|
3" (76mm) | 2.875" (73mm) | 1" (25mm) | 12" (305mm) | 3" (76mm) | 3" MNPT (76mm) | 23 Lb (10.43 Kg) | 939-003-KIT |
$1,570.90
|
||
|
2" (51mm) | 1.875" (48mm) | 1" (25mm) | 12" (305mm) | 2" (51mm) | 2" MNPT (51mm) | 20 Lb (9.07 Kg) | 939-002-KIT |
$1,455.00
|
129HP Series, PeteStop® Line Stop Insertion System:
- Strong Back Assembly
- Launch Cylinder
- Inflation Ram(s), Set Screws, Coupling(s) if needed
- Inflation Pulley Assembly
- Packing Seal
- Centering Anchor
- Hardware Kit - Bolts, Nuts, Gasket
- Spare Parts Kit
Does not include 129HP-Series PeteStop® Plug, Retraction System & Inflation Kit.
| Image | Dia., Inflated Plug | Hot Tap Hole Size | Dia., Inflation Ram | Lngth, Launch Cyl. | Dia., Launch Cyl. | Connection Type | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|---|
|
96" (2438.4mm) | 41" (1041mm) | 6" (152.4mm) | 168" (4267.2mm) | 42" (1066.8mm) | 42" X 150lb Flange | 939-096-KITHP |
$85,619.00
|
||
|
84" (2133.6mm) | 35" (889mm) | 6" (152.4mm) | 144" (3657.6mm) | 36" (914.4mm) | 36" x 150lb Flange | 939-084-KITHP |
$63,046.00
|
||
|
72" (1828.8mm) | 29" (737mm) | 6" (152.4mm) | 132" (3352.8mm) | 30" (762mm) | 30" x 150lb Flange | 939-072-KITHP |
$44,150.70
|
||
|
66" (1676.4mm) | 29" (737mm) | 4.5" (114.3mm) | 120" (3048mm) | 30" (762mm) | 30" x 150lb Flange | 939-066-KITHP |
$46,120.00
|
||
|
60" (1524mm) | 23" (584mm) | 4.5" (114.3mm) | 108" (2743.2mm) | 24" (609.mm) | 24" x 150lb Flange | 939-060-KITHP |
$34,463.80
|
||
|
|
54" (1371.6mm) | 23" (584mm) | 3.5" (88.9mm) | 96" (2438.4mm) | 24" (609.mm) | 24" x 150lb Flange | 939-054-KITHP |
$30,649.90
|
||
|
48" (1219.2mm) | 17" (432mm) | 3.5" (88.9mm) | 84" (2133.6mm) | 18" (457.2mm) | 18" x 150lb Flange | 939-048-KITHP |
$16,922.90
|
||
|
42" (1066.8mm) | 17" (432mm) | 3.5" (88.9mm) | 72" (1828.8mm) | 18" (457.2mm) | 18" x 150lb Flange | 939-042-KITHP |
$15,036.90
|
||
|
|
36" (914.4mm) | 17" (432mm) | 3.5" (88.9mm) | 72" (1828.8mm) | 18" (457.2mm) | 18" x 150lb Flange | 939-036-KITHP |
$15,036.90
|
||
|
32" (812.8mm) | 17" (432mm) | 2.5" (63.5mm) | 60" (1524mm) | 18" (457.2mm) | 18" x 150lb Flange | 939-032-KIT |
$14,130.90
|
||
|
28"-30" (711-762mm) | 15" (381mm) | 2.5" (63.5mm) | 60" (1524mm) | 16" (406.4mm) | 16" x 150lb Flange | 939-02830-KIT |
$9,852.50
|
||
|
24" (609.6mm) | 13" (330mm) | 2.5" (63.5mm) | 48" (1219.2mm) | 14" (355.6mm) | 14" x 150lb Flange | 939-024-KITHP |
$8,425.60
|
||
|
20" (508mm) | 15" (381mm) | 2.5" (63.5mm) | 36" (914.4mm) | 16" (406.4mm) | 16" x 150lb Flange | 939-020-KITD |
$5,804.55
|
||
|
|
20" (508mm) | 11.875" (302mm) | 1.875" (47.6mm) | 36" (914.4mm) | 12" (304.8mm) | 12" x 150lb Flange | 939-020-KIT |
$7,273.20
|
||
|
18" (457.2mm) | 11.875" (302mm) | 1.875" (47.6mm) | 36" (914.4mm) | 12" (304.8mm) | 12" x 150lb Flange | 939-018-KIT |
$7,273.20
|
||
|
16" (406.4mm) | 11.875" (302mm) | 1.875" (47.6mm) | 36" (914.4mm) | 12" (304.8mm) | 12" x 150lb Flange | 939-016-KIT |
$7,235.20
|
||
|
14" (355.6mm) | 9.875" (251mm) | 1.875" (47.6mm) | 36" (914.4mm) | 10" (254mm) | 10" x 150lb Flange | 939-014-KIT |
$6,313.20
|
||
|
12" (304.8mm) | 9.875" (251mm) | 1.875" (47.6mm) | 36" (914.4mm) | 10" (254mm) | 10" x 150lb Flange | 939-012-KIT |
$5,980.20
|
||
|
10" (254mm) | 7.875" (200mm) | 1.5" (38.1mm) | 24" (609.6mm) | 8" (203.2mm) | 8" x 150lb Flange | 939-010-KIT |
$5,031.60
|
||
|
8" (203.2mm) | 5.875" (149mm) | 1.5" (38.1mm) | 24" (609.6mm) | 6" (152.4mm) | 6" x 150 FLANGE | 939-008-KITHP |
$3,350.60
|
||
|
4" (101.6mm) | 3.875" (98mm) | 1" (25.4mm) | 12" (304.8mm) | 4" (101.6mm) | 4" MNPT (101.6mm) | 939-004-KIT |
$1,691.80
|
